4000X12000 Strip Gas Cutting Machine , Step Motors 9+1 H Beam Welding Line

4000X12000 Strip Gas Cutting Machine , Step Motors 9+1 H Beam Welding Line

  • 4000X12000 Strip Gas Cutting Machine , Step Motors 9+1 H Beam Welding Line
4000X12000 Strip Gas Cutting Machine , Step Motors 9+1 H Beam Welding Line
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: GDZ-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Cutting Torch: 9+1
Motor: Step Motors Driven Mode: Single Driven
Color: Red+black, Blue+yellow Or Customized Warranty: 1 Year
High Light:

cnc h beam drilling machine


h beam welding line

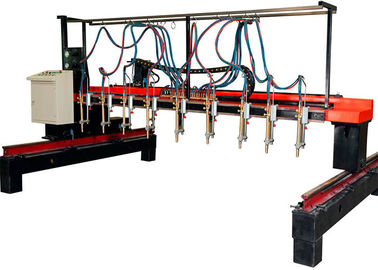

GDZ Series Gantry type Vertical Strip Gas Cutting Machine for H beam




Application Scope and Material:


1. Metal


2. Mild Steel



This series of cutting machine is a high efficiency and high performance equipment, which is gantry type, single driven with step motors, and combines electric control box, precision mechanism and oxygen cutting.This machine is economic device with strip flame torches only for cutting straight line of plates. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect.



Technical Parameters:


Model GDZ-3000 GDZ-4000 GDZ-5000
Gauge (mm) 3000 4000 5000
Effective cutting width (mm) 230-2200 230-3200 230-4200
Rail Length (mm) 12000 / 14000 12000 / 14000 12000 / 14000
Effective cutting length (mm) 10000 / 12000 10000 / 12000 10000 / 12000
Horizontal cutting torch 1 1 1
Strip cutting torch 9 9 9
Cutting thickness (mm) 6~100 6~100 6~100
No-duty running speed 4000 mm/mm
Drive mode Single / double Single / double Double
Cutting precision ±0.5mm/mm
Repeat ability precision ±0.5mm/mm





1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.


3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
