MIG TIG MAG Automatic Welding Machine Station For Car Fuel Tank Cabinet 400A

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: RWS-series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywooden box

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

robotic welding equipment

,

robotic arm welding machine

Voltage:
380V,3PH,50HZ Or Customerized
Robot Brand:
Japan Kawasaki
Welding Source Brand:
Denmark Migatronic
Welding Process:
TIG / MIG / MAG
Current:
400A
Color:
Whilte + Red Or Customerized
Voltage:
380V,3PH,50HZ Or Customerized
Robot Brand:
Japan Kawasaki
Welding Source Brand:
Denmark Migatronic
Welding Process:
TIG / MIG / MAG
Current:
400A
Color:
Whilte + Red Or Customerized

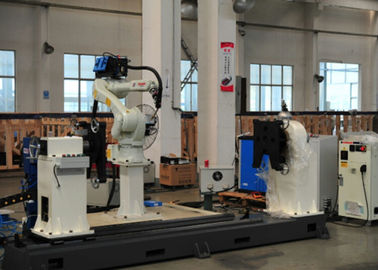

MIG TIG MAG Automatic Welding Machine Station For Car Fuel Tank Cabinet 400A



Automatic Robotics Welding Station for Car Fuel tank and Cabinet





Arc welding robots use state-of-the-art technology to rival the quality of a skilled human welder.



The robots are equipped standard with arc welding specific software to enable quick and easy programming of the process path.



Adaptive welding functionality is available to modify robot position, weave pattern and speed during welding to fill variable joints.



Their built-in intelligence, flexibility and high accuracy make Kawasaki's arc welding robots ideal for a wide range of arc welding applications.



Welding robot consists of robot and welding device.



The robot is made up of robot body and controller (hardware and software).



While for the welding device, it is generally include welding source, control system, wire feeder (TIG welding), welding gun(clamp), etc.





Robot Arm:



Payload: 6~20kg

Axes: 6

Reach: 1445~1925mm

Repeatability: ±0.03~±0.08mm



Application:

Metal products, such as metal or steel cabinet, steel oil or fuel tank, cylinders, exhaust pipe, etc.



BA006N SPECIFICATIONS



BA006N SPECIFICATIONS
Type Articulated Robot
Degree of Freedom 6
Max. Payload (kg) 6
Max. Reach (mm) 1,445
Positional Repeatability (mm) ✽1 ±0.06
Motion Range (°) Arm Rotation (JT1) ±165
Arm Out-in (JT2) +150 - −90
Arm Up-down (JT3) +45 - −175
Wrist Swivel (JT4) ±180
Wrist Bend (JT5) ±135
Wrist Twist (JT6) ±360
Max Speed (°/s) Arm Rotation (JT1) 240
Arm Out-in (JT2) 240
Arm Up-down (JT3) 220
Wrist Swivel (JT4) 430
Wrist Bend (JT5) 430
Wrist Twist (JT6) 650
Moment (N•m) Wrist Swivel (JT4) 12
Wrist Bend (JT5) 12
Wrist Twist (JT6) 3.75
Moment of Inertia (kg•m2) Wrist Swivel (JT4) 0.4
Wrist Bend (JT5) 0.4
Wrist Twist (JT6) 0.07
Mass (kg) 150
Body Color Munsell 10GY9/1 equivalent
Installation Floor, Ceiling
Environmental Condition Ambient Temperature (°C) 0 - 45
Relative Humidity (%) 35 - 85 (No dew, nor frost allowed)
Power Requirements (kVA) ✽2 2.0
Degree of Protection IP65
Controller America E01
Europe
Japan & Asia



✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns





Questions before quotation:



1) Please give me the 3-D drawing of your workpiece.

2) Please give me the CAD drawing of your workpiece.

3) What's your welding requirments, MIG or TIG, with wire or without wire?

4) What's the size and material of your workpiece?

5) Please send me some photos of your workpiece.





Reference Workpiece Photos:



MIG TIG MAG Automatic Welding Machine Station For Car Fuel Tank Cabinet 400A 0
