Automatic Robotics Welding Station for Hydraulic Oil Pressure Cylinder

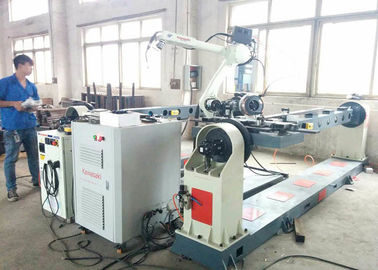

The arc welding robot workstation is designed according the weld-piece technical requirement. The overall design is: arc welding robot system + welding positioner + welding machine system+ console+ logistics. The system are mainly conclude robot, exclusive control cabinet, welding machine, welding wire feeder etc.

According different positioners, can work out different welding robot station scheme. In the basis of weld-piece technical requirement and combined with practical requirement of plant, we design the definite scheme illustrate as following figure.

Robotics arc welding station can weld all metal or steel products, which is widely used in automobile car, train, medical treatment, E-bike, motorbike, airline, construction equipment, etc.

Robotocs arc welding station improves the production efficiency and welding quality in many industry area so much and help the manufacturers to save the labor cost.

Robot Robot:

BA series is the professional robot for welding, easy operation with simple demonstration teaching operation.

There is LED touch color screen with excellent visual effect and easy operation on demonstration teaching device.

Robot is connected with welding machine by a cable. Welding condition can be classified saved and one key for selection.

Welding positioner system:

In consideration of the product’s structure, weight, installment and welding time, the welding dislodgement system uses L double axle positioner system structure.

This positioner system has the following features

•  It can reduce the walking time and distance of the operator to load and unload in one position.

•  Loading district and robot welding district are separated, which can guarantee operators’ safety.

•  The shortage is that it needs rotary and covers large area

Anti-collision device:

Fixture:

If the customer need to change products, it is not necessary to change positioner’s system. Can design corresponding fixture according to specific product and fix it on the positioner. The specific fixture needs to be designed, made and ordered.

Welding process:

The specific operation process is carried out as follows:

•  To clamp the assembled and located-welded work-piece on the fixture by using of relevant hoist device.

•  Locate correctly.

•  Press the starting button on the operational platform, then the robot begins to weld the work-piece.

•  After the robot finishing welding, unload the welded work-piece and install a new work-piece.

Finished Products:
