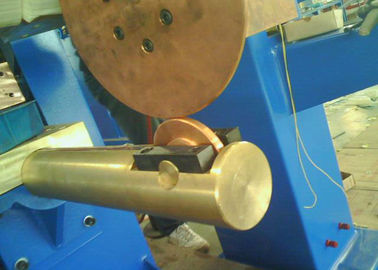

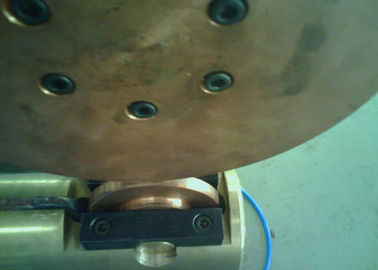

75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz

75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz

  • 75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz
  • 75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz
  • 75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz
  • 75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz
75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: FN-75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Controller: KF9 Voltage: 380V Or Customized
Duty Cycle: 50% Welding Workpiece: Steel Cable Spools
Color: Grey Or Blue Or White Or Customized Warranty: 1 Year
High Light:

spot welding equipment

,

resistance welding equipment



Resistance Longitudinal Seam Welding Machine for Metal Steel cable spools




1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance





Applications:



Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.







Features:



  •  Complete machine structure is Stable.



  •  Bottom arm can be metal arm or copper arm according to customer’s tank diameter.



  •  Adopt stepless adjustment speed drive of three-phase, it is easy to adjust the welding speed steadily.



  •  All of the circuit of welder adopt the type of internal cooling, and the welding wheel adopts the type of external cooling.



  •  The active drive can be chosen upper or lower electrode, it is convenience for user to operate.



  •  The main circuit adopts water cooling and high power SCR, quality is reliable, current output is stable.



  •  Welding machine types: longitudinal welding, horizontal welding, fixed or vertically and horizontally.



  •  According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.



  •  The main transformer adopts high-quality silicon steel sheet and compelling water cooling system, featured of high output power and low consumption.



  •  High-quality cylinders and pneumatic components guarantee the reliable and stable running of pneumatic system.



  •  It is suitable for the welding of basin, barrel, can and sealing thin-wall container that is made of low carbon steel, stainless steel etc.







Technical Parameters:





Model FN-35 FN-50 FN-75 FN-100 FN-125 FN-160
Rated Capacity (KVA) 35 50 75 100 125 160
Input Voltage Single Phase 380V 50Hz
Input Current (A) 92 131 197 263 328 420
Output No-load Voltage (V) 4.2 5 6.1 7.2 8 8.5
Rated Duty Cycle 50%
Max. Welding Thickness (low carbon steel) (mm) 0.6+0.6 0.8+0.8 1+1 1.2+1.2 1.3+1.3 1.5+1.5
Welding Speed 0.8-3.2m/min
Electrode Stroke 20mm
Flow of Cooling Water 120L/h
Weight of Complete Machine (Kg) 470 500 620 720 810 930





Final Workpiece:



75KVA Portable Spot Welding Machine For Metal Steel Cable Spools Single Phase 380V 50Hz 0
