Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC-4000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Range: |
3200X10000mm |
Voltage: |
380V Or Customized |
Flame Cutting Thickness: |
6-150mm |
Plasma Cutting Thickness: |
Depends On Plasma Source |
Cutting Mode: |
Flame Or Plasma Cutting |
Warranty: |
1 Year |
Effective Cutting Range: |
3200X10000mm |
Voltage: |
380V Or Customized |
Flame Cutting Thickness: |
6-150mm |
Plasma Cutting Thickness: |
Depends On Plasma Source |
Cutting Mode: |
Flame Or Plasma Cutting |
Warranty: |
1 Year |

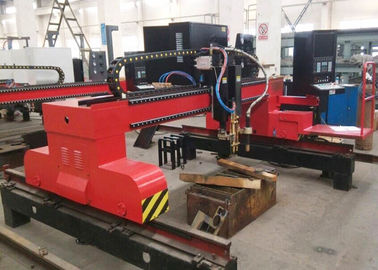

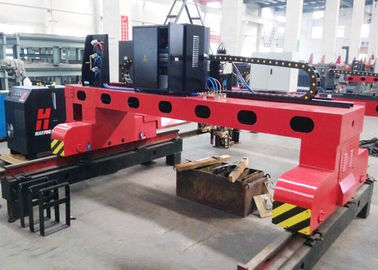

CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
Wide, low center of gravity longmen frame structure is suitable for high speed motion, six axis linkage, infinite rotating cutting torch.
Deflection motor rotation with the rotary motor, the groove and groove cutting.
The torch high speed constant.
Equipped with cutting torch initial location and anti-collision device.
1. FRAME
Gantry box beam with good carrying capacity, high double sides drive,For the compact structure,sufficient to eliminate the welding stress,
its performance is stable and realiable.
2. GUIDE RAILS
Horizontal guide ralls using domestic or imported linear guide, is of high precision and good guidance.
Longitudunal guide ralls made from special metals,with grinding surface ,has very high mechanical precision and abrasion resistance.
3. DRIVE RACK,GEAR
Horizontal, longitudinal transmission use Germany NEUGART maintenance-free planetary gear reducer of high accuracy,large torque.low bak lash.
4.SERVO DRIVE
Our servo drive system is of Panasonic, character position detection function, high working precision and short acceleration time.
5.GAS SYSTERM
Equipped with automatic ignition, backfire prevention device, it is stable and secure.
Technical Parameters:
| Model | CNC3000 | CNC3500 | CNC4000 | CNC5000 | CNC6000 | CNC7000 | CNC8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length | ||||||
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma). | ||||||
| Basic components | |||||||
| Cutting Mode | Plasma and Oxygen-fuel / flame | ||||||
| Drive Mode | Servo motor, Dual-side | ||||||
| Cutting Torch Number | Customization | ||||||
| Driving Motor | Panasonic / Yaskawa | ||||||
| CNC Controller | Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB | ||||||
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB | ||||||
| Programming software | Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional | ||||||
| Power voltage | 3×380V±10% 50Hz / according to user's local condition | ||||||
| Operation language | Multi language,Basic: English... | ||||||
Cutting Samples:
Our Services
Pre-sale Service
1. Supply item design, process design.
2. Help you chose the fit machine.
3. Manufacture the machine according to your and accessories.
Sale Service
1. Acceptance of equipment together with you.
2. Offer you help to make the operating insruction.
3. Any other help you need.
After-sale Service
1. One year warranty.
2. Free accessories due to quality problem.
3. Free repair whole using life (without the freight and accessories charge).
