CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC-3000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc metal cutting machine

,

cnc steel cutting machine

CNC System:
Hypertherm, Fangling, Etc.
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Motor:
Panasonic
Reducer:
Shimpo, Neugart
CNC System:
Hypertherm, Fangling, Etc.
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Motor:
Panasonic
Reducer:
Shimpo, Neugart

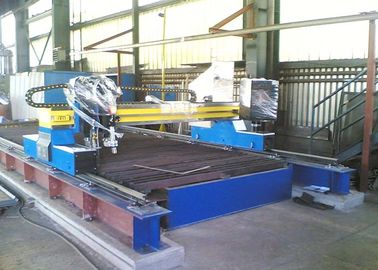

CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source



CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source



Large Gantry type Hot sale chinese cnc plasma cutting machine



10 years CNC cutting machine manufacturing;
5000 + customers Choice;
> Our own R & D team, customized according to your needs;
> China's famous brand, fast delivery,cheap price;
> Total quality management system.



Metalwork Machinery CNC cutting machine, To Be your reliable business partner!



Cutting method Guide:

1,Flame cutting: Suitable for cutting carbon steel larger than 20mm;

2,Plasma cutting: Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;

3,Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.



Technical Parameters:



Model CNC3000 CNC3500 CNC4000 CNC5000 CNC6000 CNC7000 CNC8000
Effective Cutting Width (mm) 2200 2700 3200 4200 5200 6200 7200
Track Width (mm) 3000 3500 4000 5000 6000 7000 8000
Effective Cutting Length (m) 2m less than track length
Cutting Thickness(mm) Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma).
Basic components
Cutting Mode Plasma and Oxygen-fuel / flame
Drive Mode Servo motor, Dual-side
Cutting Torch Number Customization
Driving Motor Panasonic / Yaskawa
CNC Controller Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB

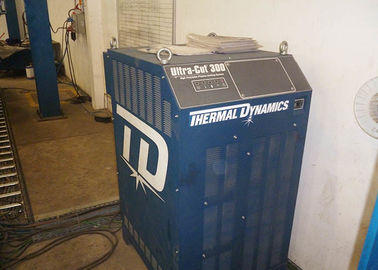

Available Plasma Power Hypertherm, Kjellberg, Thermal Dynamics, ESAB
Programming software Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional
Power voltage 3×380V±10% 50Hz / according to user's local condition
Operation language Multi language,Basic: English





























































Machine Details:



CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source 0 Machine body structure



1.Steel hollow beam design ensures good heat dissipation without deformation;


2. Box weldment structure process tempering ensures excellent rigidity and intensity;


3. Double drive adopts symmetrical structure.
CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source 1

Transmission

1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;

2. Gear box: SEW, high output torsion low noise.

CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source 2 Drive Model

Japan AC servo motor or Stepper motor Bi-side Driving.
Japan shimpo reducer or German technology planetary reducer.
CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source 3 Guide Rail

Process mode: High precision grinder;
Longitudinal rack accuracy: 7 grade;
Unit length: 1.0M or 2.0M.
CNC Gantry Type Gas and Plasma Cutting Machine with High Definition Plasma Source 4

CNC System

1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.


Shanghai or American Brand CNC system is Optional
