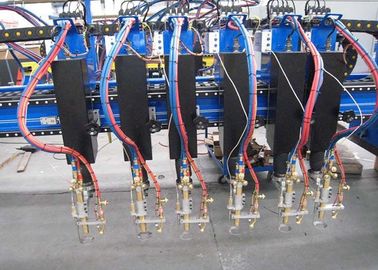

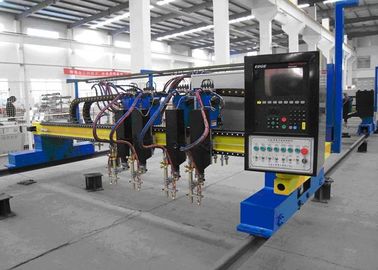

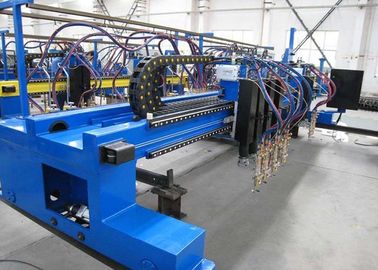

Automatic Gantry Type CNC Plasma Cutting Machine with Multi Flame Cutting Torches
It is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity.
This machine uses gantry style, and has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable.
It has compact and rational construction, and the price is reasonable. It is more suitable for mediumsized and small enterprises to buy and use.
1. Key Points:
CNC system: Shanghai Fang Ling or USA Hypertherm (In English, Chinese version)
Arc-voltage height sensor (with plasma model): PTHC
Plasma source: depend on customer
Programming software: FastCAM (Any language version)
2. Brief Description:
CNC gantry flame cutting machine is a kind of thermal cutting machine with high efficiency, precision and reliability, capable of cutting any plane figure. The whole machine, with beautiful appearance, uses gantry structure made of aluminum profile, and is driven by double sided DC stepping motor. This cutter can be equipped with flame cutting torch or plasma cutting torch or both. It is widely applied in fields such as advertising, industrial blower, electricity, machining.
3. Typical Features:
4. Requirements of Power Supply and Gas
Power supply capacity:
Technical Parameters:
| Model | CNC3000 | CNC3500 | CNC4000 | CNC5000 | CNC6000 | CNC7000 | CNC8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length | ||||||
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma). | ||||||
| Basic components | |||||||
| Cutting Mode | Plasma and Oxygen-fuel / flame | ||||||
| Drive Mode | Servo motor, Dual-side | ||||||
| Cutting Torch Number | Customization | ||||||
| Driving Motor | Panasonic / Yaskawa | ||||||
| CNC Controller | Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB | ||||||
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB | ||||||
| Programming software | Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional | ||||||
| Power voltage | 3×380V±10% 50Hz / according to user's local condition | ||||||
| Operation language | Multi language,Basic: English | ||||||
Machine Details:
|
Machine body structure
1.Steel hollow beam design ensures good heat dissipation without deformation;
3. Double drive adopts symmetrical structure. |
|
Transmission1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;2. Gear box: SEW, high output torsion low noise. |
|
Drive Model Japan AC servo motor or Stepper motor Bi-side Driving. Japan shimpo reducer or German technology planetary reducer. |
|
Guide Rail Process mode: High precision grinder; Longitudinal rack accuracy: 7 grade; Unit length: 1.0M or 2.0M. |
|
CNC System1. 10.4 inch LCD display;
|
