CNC-4000 Gantry Type Metal Plasma and Flame Cutting Machine
- The gantry type plasma/flame cutting machineCNC gantry type plasma/flame cutting machine is designed with the company many years' cumulative experience. It is the latest machine launched by the company.The machine boasts of beautiful appearance, small inertia, solidity and smooth running.
- It span between 3 to 8 meters. Its digital control system could be quipped according to the requirements of its customers.
- This series of plasma incision machine adopt various antidisturbed and safety precautions based on the features of plasma incision machines. Therefore, they enjoy a high performance Vs price ratio. They have been widely used in various industries.
Applicable materials:
Iron plate, aluminum plate, titanium, stainless steel plate, galvanized sheet, white steel plate, metal materials.
Machine Application:
Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
Technical Parameters:
| Model |
CNC3000 |
CNC3500 |
CNC4000 |
CNC5000 |
CNC6000 |
CNC7000 |
CNC8000 |
| Effective Cutting Width (mm) |
2200 |
2700 |
3200 |
4200 |
5200 |
6200 |
7200 |
| Track Width (mm) |
3000 |
3500 |
4000 |
5000 |
6000 |
7000 |
8000 |
| Effective Cutting Length (m) |
2m less than track length |
| Cutting Thickness(mm) |
Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma). |
| Basic components |
| Cutting Mode |
Plasma and Oxygen-fuel / flame |
| Drive Mode |
Servo motor, Dual-side |
| Cutting Torch Number |
Customization |
| Driving Motor |
Panasonic / Yaskawa |
| CNC Controller |
Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB |
| Available Plasma Power |
Hypertherm, Kjellberg, Thermal Dynamics, ESAB |
| Programming software |
Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional |
| Power voltage |
3×380V±10% 50Hz / according to user's local condition |
| Operation language |
Multi language,Basic: English... |
Key Features:
1) Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.
2) Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
3) Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so that we can achieve the best cutting quality.
4) Able to cut work piece with several torches at the same time, can improve cutting efficiency.
5) Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn.
6) Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively.

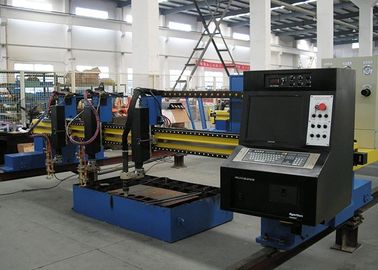

Machine in Using:
Our Services
Pre-sale Service
1. Supply item design, process design.
2. Help you chose the fit machine.
3. Manufacture the machine according to your and accessories.
Sale Service
1. Acceptance of equipment together with you.
2. Offer you help to make the operating insruction.
3. Any other help you need.
After-sale Service
1. One year warranty.
2. Free accessories due to quality problem.
3. Free repair whole using life (without the freight and accessories charge).
