Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC-4000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Nesting Software: |
FastCAM, InteGNPS, Etc. |
Cutting Mode: |
Plasma/Gas |
Type: |
Gantry |
Motor: |
Panasonic |
Reducer: |
Shimpo, Neugart |
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Nesting Software: |
FastCAM, InteGNPS, Etc. |
Cutting Mode: |
Plasma/Gas |
Type: |
Gantry |
Motor: |
Panasonic |
Reducer: |
Shimpo, Neugart |

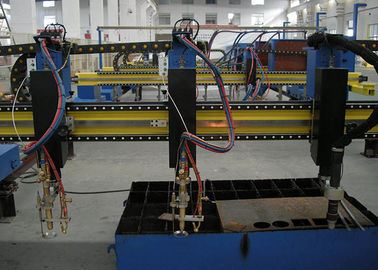

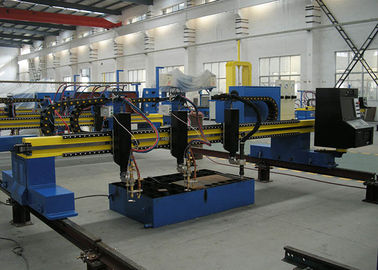

2 Gas Torch Gantry CNC Plasma Gas Cutting Machine 1 Plasma Torch Multi Operation Language
Description:
It is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity.

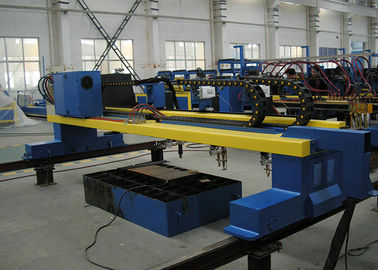

This machine uses gantry style, and has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable.
It has compact and rational construction, and the price is reasonable. It is more suitable for mediumsized and small enterprises to buy and use.
Frame: Gantry box beam with good loading capacity, high double=-side drive, for the compact structure, sufficient to eliminate the welding stress, its performance is stable and reliable.
Guide rails: Horizontal guide rails using domestic or imported guide, is of high precision and good guidance.Longitudinal guide rails made from special metals, with smooth grinding surface ,has very high mechanical precision and abrasion resistance.
Main configuration and function introduction
# Strong drag chain--Traction and protection, smart high intensity, ametabolic rigidity, easy installation, use and reliable, easy yo tear open outfit.
# To protect the cable also make machine overall looks more beautiful.
# Double heads--plasma cutter head can cut less than 40mm thickness( depends on power supply's current), flame cutter head can cut 200mm thickness, can perfect meet your cutting demands.
# Limit switch---Use it to control the workpiece movement or automatic feed, to avoid collision accident.
# 24KGS guide rail--more stable
# Starfire cutting system and HYD auto arc voltage THC
The numerical control system with high disposes, the automatic striking arc, the performance is stable,Automatic height adjust system can according to your material planeness, cutting head can automatically stable, and fast adjust.
Plasma Source :
# American hypertherm power supply : 45A, 65A, 85A, 105A, 125A, 200A,
# Chinese LGK power supply: 63A, 100A, 160A, 100A, 300A
Technical Parameters:
| Model | CNC3000 | CNC3500 | CNC4000 | CNC5000 | CNC6000 | CNC7000 | CNC8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length | ||||||
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma). | ||||||
| Basic components | |||||||
| Cutting Mode | Plasma and Oxygen-fuel / flame | ||||||
| Drive Mode | Servo motor, Dual-side | ||||||
| Cutting Torch Number | Customization | ||||||
| Driving Motor | Panasonic / Yaskawa | ||||||
| CNC Controller | Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB | ||||||
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB | ||||||
| Programming software | Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional | ||||||
| Power voltage | 3×380V±10% 50Hz / according to user's local condition | ||||||
| Operation language | Multi language,Basic: English... | ||||||
Cutting Samples:
