Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC-3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
220V/380V/415V |
Rated Power: |
As You Request |
Effective Cutting Width: |
2200mm To 7200mm |
Free Running Speed: |
6000mm/min |
Cutting Type: |
Flame And Plasma Cutting |
Warranty: |
1 Year |
Voltage: |
220V/380V/415V |
Rated Power: |
As You Request |
Effective Cutting Width: |
2200mm To 7200mm |
Free Running Speed: |
6000mm/min |
Cutting Type: |
Flame And Plasma Cutting |
Warranty: |
1 Year |
Customized Rate Power Air Cutting Machine, Gantry Automated Plasma Cutting Machine
Description

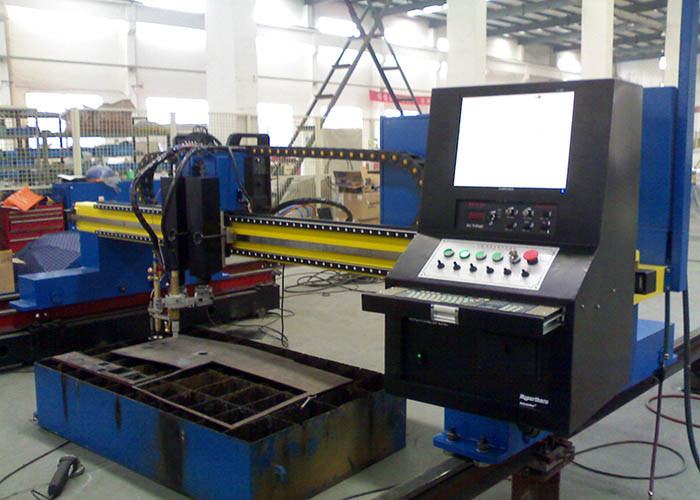

The CNC Gantry Type Plasma and Flame Cutting Machine is specially designed for metal plate cutting, it is characterized of high automation and efficiency,easy operation and long service time. This CNC Plasma and Flame Cutting Machine is Gantry structure, torch quantity and type are optional according to users' requirement.
Characters

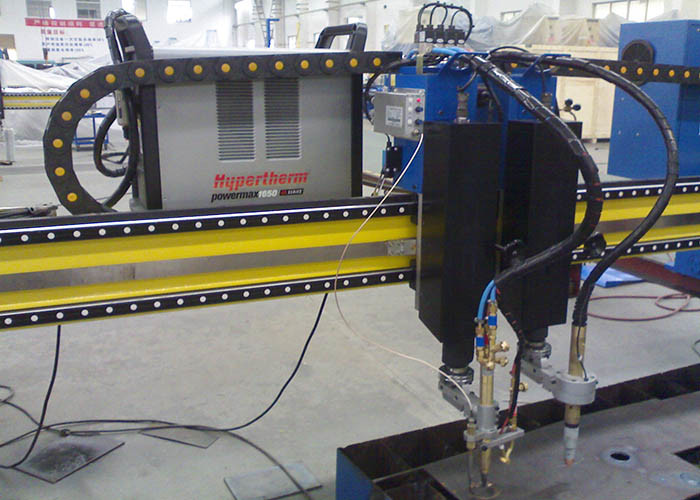

This cutter adopts gantry structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users’ demands, also can be configured as abnormity cutting and strip cutting.
Cutting Material
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.
Application
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Technical Parameters:
| Model | CNC3000 | CNC3500 | CNC4000 | CNC5000 | CNC6000 | CNC7000 | CNC8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length | ||||||
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma). | ||||||
| Basic components | |||||||
| Cutting Mode | Plasma and Oxygen-fuel / flame | ||||||
| Drive Mode | Servo motor, Dual-side | ||||||
| Cutting Torch Number | Customization | ||||||
| Driving Motor | Panasonic / Yaskawa | ||||||

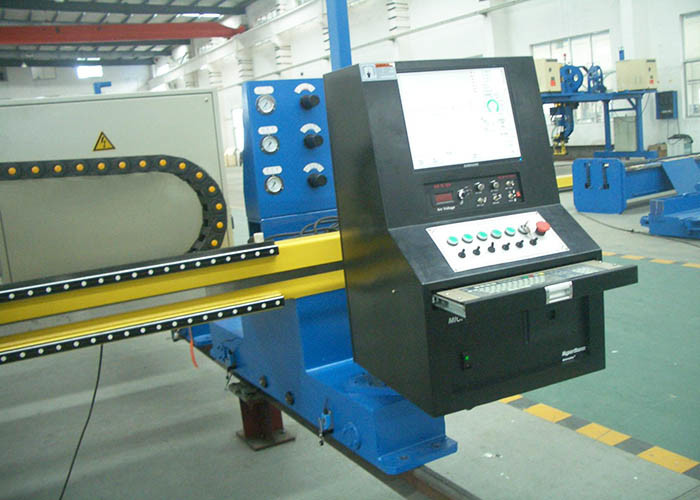

| CNC Controller | Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB | ||||||

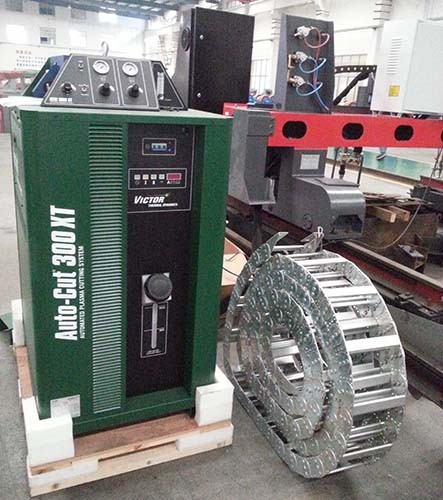

| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB | ||||||
| Programming software | Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional | ||||||
| Power voltage | 3×380V±10% 50Hz / according to user's local condition | ||||||
| Operation language | Multi language,Basic: English... | ||||||
Cutting Samples:
After-sale Service
1. According to user equipment use environment ,effective cutting range, cutting parameters such as material and thickness ,to provide users with the most economical and practical solution for CNC cutting technology.
2. 12 months of warranty for the whole machine except for wearing parts.
3. Provide liftime free technical service by email or phone.
FAQ:
For offering you the most suitable machine and favorable price, please kindly confirm with us the below questions:
1. what material do you cut? Stainless steel, mild steel or aluminum, etc?
2. The material thickness?
3. The effective cutting area?
4. Is the machine for your own use or you will resell it?
After receive your comments, we will provide you with the best solutions and price! Thanks!
