Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC-4000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Nesting Software: |
FastCAM, InteGNPS, Etc. |
Motor: |
Panasonic |
Reducer: |
Shimpo, Neugart |
Color: |
Red+black, Blue+yellow Or Customized |
Warranty: |
1 Year |
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Nesting Software: |
FastCAM, InteGNPS, Etc. |
Motor: |
Panasonic |
Reducer: |
Shimpo, Neugart |
Color: |
Red+black, Blue+yellow Or Customized |
Warranty: |
1 Year |
Customized Color CNC Plasma Cutting Machine Gantry Flame Chinese 100A Plasma Source
The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time.
This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
Features:
1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World’s top branded components and circuits ensure long service life.
5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Application:
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Technical Parameters:
| Model | CNC3000 | CNC3500 | CNC4000 | CNC5000 | CNC6000 | CNC7000 | CNC8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length | ||||||
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma). | ||||||
| Basic components | |||||||
| Cutting Mode | Plasma and Oxygen-fuel / flame | ||||||
| Drive Mode | Servo motor, Dual-side | ||||||
| Cutting Torch Number | Customization | ||||||
| Driving Motor | Panasonic / Yaskawa | ||||||
| CNC Controller | Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB | ||||||
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB | ||||||
| Programming software | Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional | ||||||
| Power voltage | 3×380V±10% 50Hz / according to user's local condition | ||||||
| Operation language | Multi language,Basic: English... | ||||||

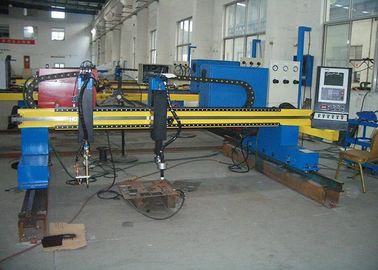

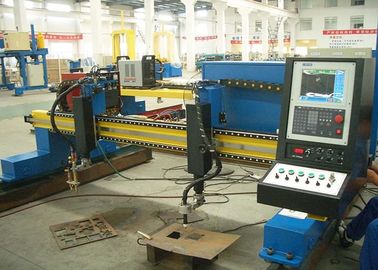

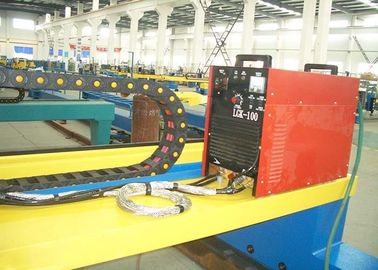

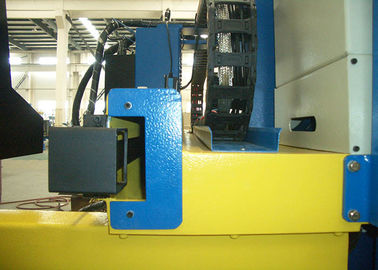

Reference Photos:
Cutting Samples:
After-Sale Service:
1) All of our machines warranty for one year since productions time.
2) Our technicians can offer online training and service directly to you.
3) Our technicians can go to your place and offering service or training, but need you to bear all charges.
