Metal Steel Plates Gantry CNC Plasma Flame Cutting Machine with Panasonic Motor

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC-5000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc steel cutting machine

,

plasma metal cutting machine

CNC System:
Hypertherm, Fangling, Etc.
Cutting Mode:
Plasma/Flame
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
CNC System:
Hypertherm, Fangling, Etc.
Cutting Mode:
Plasma/Flame
Plasma Source:
Hypertherm, Victor, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
Metal Steel Plates Gantry CNC Plasma Flame Cutting Machine with Panasonic Motor



CNC Gantry Type Plasma and Flame Cutting Machine for Metal and Steel Plates



Application Scope and Material:



1. Hardly oxidized metal



2. Easily oxidized



3. Stainless steel



4. Brass, aluminum, and zinc



Machine Introduction:



1. FRAME


Gantry box beam with good carrying capacity, high double sides drive,For the compact structure,sufficient to eliminate the welding stress,

its performance is stable and realiable.



2. GUIDE RAILS


Horizontal guide ralls using domestic or imported linear guide, is of high precision and good guidance.
Longitudunal guide ralls made from special metals,with grinding surface ,has very high mechanical precision and abrasion resistance.



3. DRIVE RACK, GEAR


Horizontal, longitudinal transmission use Germany NEUGART maintenance-free planetary gear reducer of high accuracy,large torque.low bak lash.



4. SERVO DRIVE


Our servo drive system is of Panasonic, character position detection function, high working precision and short acceleration time.


5. GAS SYSTERM



Equipped with automatic ignition, backfire prevention device, it is stable and secure.



Technical Parameters:



Model CNC3000 CNC3500 CNC4000 CNC5000 CNC6000 CNC7000 CNC8000
Effective Cutting Width (mm) 2200 2700 3200 4200 5200 6200 7200
Track Width (mm) 3000 3500 4000 5000 6000 7000 8000
Effective Cutting Length (m) 2m less than track length
Cutting Thickness(mm) Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma).
Basic components
Cutting Mode Plasma and Oxygen-fuel / flame
Drive Mode Servo motor, Dual-side
Cutting Torch Number Customization
Driving Motor Panasonic / Yaskawa
CNC Controller Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB
Available Plasma Power Hypertherm, Kjellberg, Thermal Dynamics, ESAB
Programming software Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional
Power voltage 3×380V±10% 50Hz / according to user's local condition
Operation language Multi language,Basic: English...







Reference Photos:

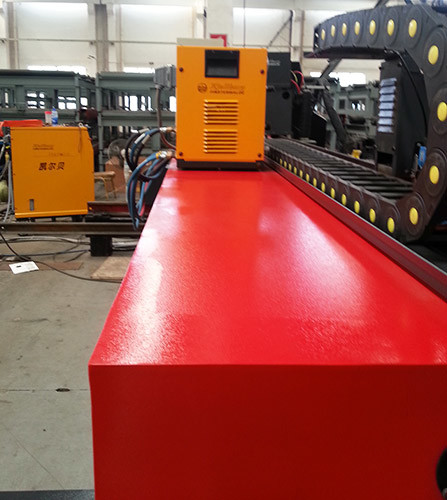

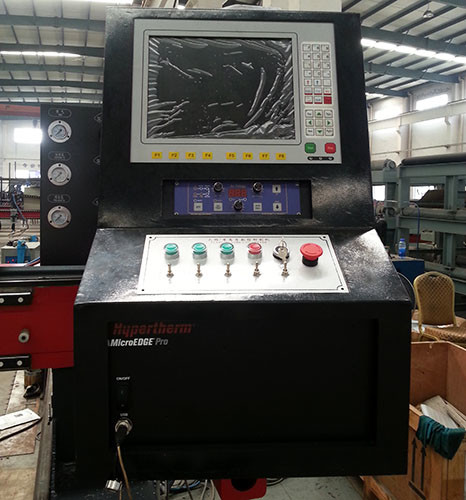

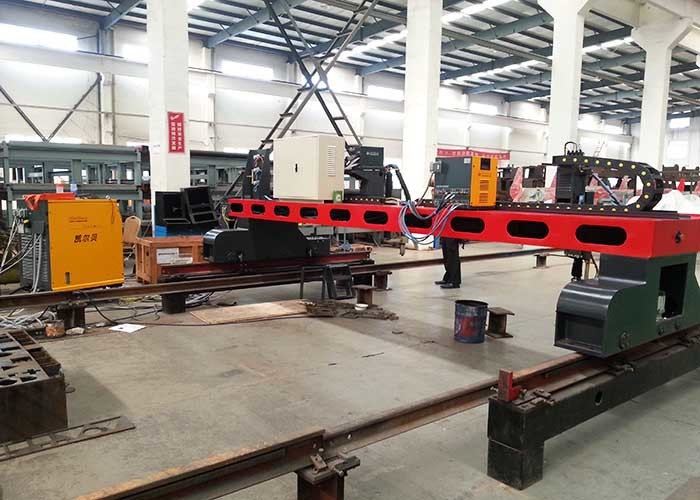

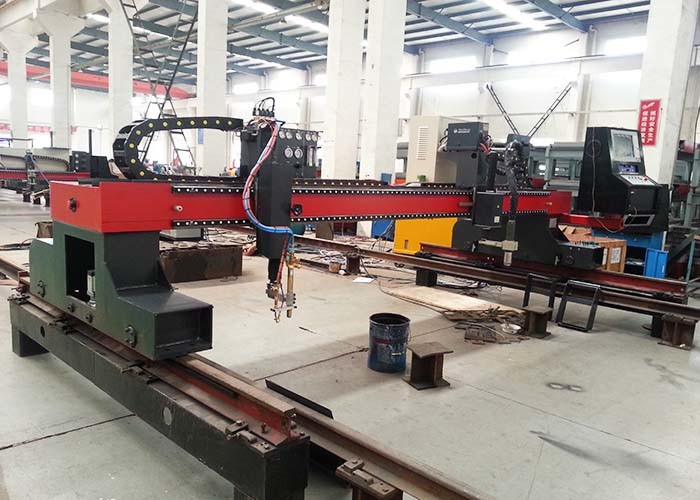

Metal Steel Plates Gantry CNC Plasma Flame Cutting Machine with Panasonic Motor 0
