1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC1-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywooden box

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc metal cutting machine

,

plasma metal cutting machine

CNC System:
Fangling
Plasma Source:
Hypertherm, Victor, Chinese Brand, Etc.
Height Controller:
Hongyuda
Nesting Software:
FastCAM, InteGNPS, Etc.
Effective Cutting Range:
1500X3000mm
Weight:
80KG
CNC System:
Fangling
Plasma Source:
Hypertherm, Victor, Chinese Brand, Etc.
Height Controller:
Hongyuda
Nesting Software:
FastCAM, InteGNPS, Etc.
Effective Cutting Range:
1500X3000mm
Weight:
80KG

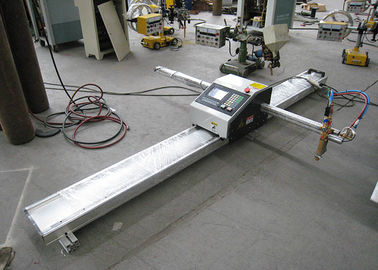

1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates



1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates



Host longitudinal rails imported precision dual axis linear guides, horizontal transmission by a precision aluminum extrusions and components, transmission stability, high accuracy Can cut any complex plane



figures for oxyfuel flame cutting and plasma cutting machine, free to move, not accounting for fixed venue. Widely used in automotive, shipbuilding, petrochemical, boiler and pressure vessel, engineering machinery, light machinery and other industries, especially for single-piece contoured surface and mass production.



Product Features



(1) Tailored track acquires high-intensity, high-speed and high-precision features.


(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.


(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.


(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.


(5) With two cutting modes: Flame Cutting & Plasma Cutting.


(6) Chinese, English, French, and Portuguese are ready to use.


(7) Can automatically memorize and restore when power is off.


(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,

protect the torch form damage and prolong life span of the nozzles.


(9) With status indication device.


(10) With positioning functions of protection cover, proximity switch and dual-speed.


(11) Compatibility of the domestic plasma and foreign-brand plasma.



Machine Structure:

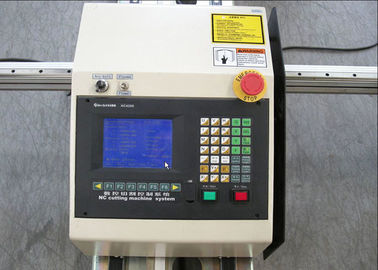

1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 0 China FangLing FL-2100 CNC System
1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 1

Plasma Torch Height Controller

Model: XPTHC-Portable 300

1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 2

Gas Cutting Torch

6-150mm Cutting Thickness

1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 3

Plasma Cutting Torch

Cutting Thickness: Depends On Plasma Source

1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 4 Rail Base
1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 5

Plasma Source:

USA Victor, USA Hypertherm, Chinese Brand



Technical Parameters:





Model CNC-1200 X 2000 CNC-1500 X 3000
Input Voltage 220V/110V 220V/110V
Power Supply Frequency 50HZ / 60HZ 50HZ / 60HZ
Rated Power Supply 180W 180W
LCD Dimension 5.7 Inches 5.7 Inches
Effective Cutting Width (X axis) 1200mm 1500mm
Effective Cutting Length (Y axis) 2000/3000/6000mm 3000/6000mm
Cutting Speed 0-2500mm per minute 0-2500mm per minute
Plasma Cutting Thickness 2--20mm (0.08''--0.79'') 2--20mm (0.08''--0.79'')
Flame Cutting Thickness 6--150mm (0.2''--5.9'') 6--150mm (0.2''--5.9'')
Emergency Stop Button No Yes
Free (Off) Button No Yes
Cross Beam Length 1700mm 2200mm
Longitudinal Rail Length 2500/4000/6000mm 4000/6000mm
Longitudinal Rail Width 196mm 345mm
Host Machine Dimension (L*W*H mm) 508*344*305 600*449*350
Cross Beam Weight 9.3kg 12kg
Host Machine Weight 26.7kg 30kg
Longitudinal Rail Weight 34.5kg 53.5kg
Total Weight 70.5kg (156 lbs ) 95.5kg (211 lbs)
Gas Pressure Max. 0.1Mpa (14.5 PSI ) Max. 0.1Mpa (14.5 PSI )
Oxygen Pressure Max. 1.0Mpa (145 PSI ) Max. 1.0Mpa (145 PSI )
Cutting Gas Acetylene/Propane/Methane Acetylene/Propane/Methane
Plasma Power Source THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
Plasma Air Only pressed Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa (116 PSI) Max. 0.8Mpa (116 PSI)





Machine in Using:



1500X3000mm Dual Speed Portable CNC Plasma Flame Cutting Machine For Metal Plates 6
