Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1500X3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Fangling |
Plasma Source: |
Hypertherm, Victor, Etc. |
Flame Cutting Thickness: |
6-150mm |
Height Controller: |
Hongyuda |
Nesting Software: |
FastCAM, InteGNPS, Etc. |
Color: |
White, Red Or Customized |
Warranty: |
1 Year |
CNC System: |
Fangling |
Plasma Source: |
Hypertherm, Victor, Etc. |
Flame Cutting Thickness: |
6-150mm |
Height Controller: |
Hongyuda |
Nesting Software: |
FastCAM, InteGNPS, Etc. |
Color: |
White, Red Or Customized |
Warranty: |
1 Year |

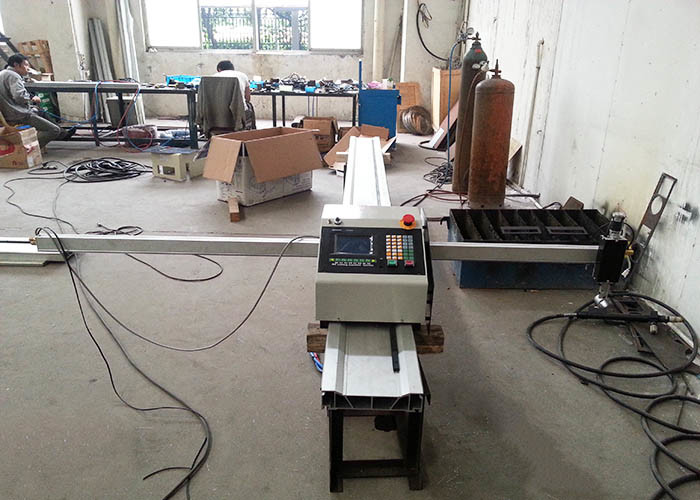

Portable Plasma CNC Cutting Machine , 6-150mm Flame Thickness Oxygen Cutting Machine
Application:
Portable CNC plasma cutting machine is a automatic and high efficiency cutting equipment. It is widley used in all kinds of carbon material,stainless steel and nonferrous metal sheet and thick metal plate.,
Main advantages:
1. Smart design,can be moved everywhere you need.
2. Servo motor,can cut both thin and thick metal plate with fast speed and guarantee the cutting quality.

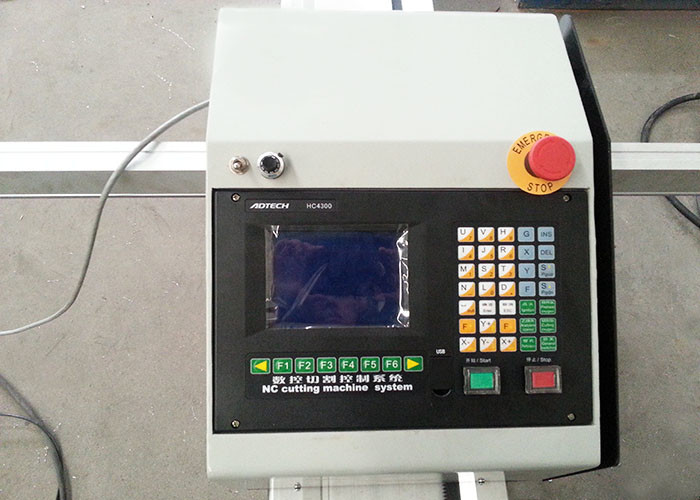

3. The CNC controller box is new design,this system is more stable when the machine working.
4. Smart cut,cut all shapes from AutoCad.
5. Control system is FL-2100,which is very popular in China,with large graphics library,and easy to learn to operate.This software can support English,Russian and Spanish. And the most important is it can be Expanded to 4 axis.
6. Prompt delivery,with 3-7 days,operate video for installation.
Technical Parameters:
| Model | CNC-1200 X 2000 | CNC-1500 X 3000 |
| Input Voltage | 220V/110V | 220V/110V |
| Power Supply Frequency | 50HZ / 60HZ | 50HZ / 60HZ |
| Rated Power Supply | 180W | 180W |
| LCD Dimension | 5.7 Inches | 5.7 Inches |
| Effective Cutting Width (X axis) | 1200mm | 1500mm |
| Effective Cutting Length (Y axis) | 2000/3000/6000mm | 3000/6000mm |
| Cutting Speed | 0-2500mm per minute | 0-2500mm per minute |
| Plasma Cutting Thickness | 2--20mm (0.08''--0.79'') | 2--20mm (0.08''--0.79'') |
| Flame Cutting Thickness | 6--150mm (0.2''--5.9'') | 6--150mm (0.2''--5.9'') |
| Emergency Stop Button | No | Yes |
| Free (Off) Button | No | Yes |
| Cross Beam Length | 1700mm | 2200mm |
| Longitudinal Rail Length | 2500/4000/6000mm | 4000/6000mm |
| Longitudinal Rail Width | 196mm | 345mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 | 600*449*350 |
| Cross Beam Weight | 9.3kg | 12kg |
| Host Machine Weight | 26.7kg | 30kg |
| Longitudinal Rail Weight | 34.5kg | 53.5kg |
| Total Weight | 70.5kg (156 lbs ) | 95.5kg (211 lbs) |
| Gas Pressure | Max. 0.1Mpa (14.5 PSI ) | Max. 0.1Mpa (14.5 PSI ) |
| Oxygen Pressure | Max. 1.0Mpa (145 PSI ) | Max. 1.0Mpa (145 PSI ) |
| Cutting Gas | Acetylene/Propane/Methane | Acetylene/Propane/Methane |
| Plasma Power Source | THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
| Plasma Air | Only pressed Air | Only pressed Air |
| Plasma Air Pressure | Max. 0.8Mpa (116 PSI) | Max. 0.8Mpa (116 PSI) |
Cutting Samples:
