Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1500X3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Size: |
1500X3000mm |
Cutting Gas: |
Oxygen/ Acetylene/ Propane |
Display: |
LCD7" TFT Color Screen |
Weight: |
90 Kg |
Cutting Speed: |
0~6000mm/min |
Rated Power: |
200W |
Plasma Source: |

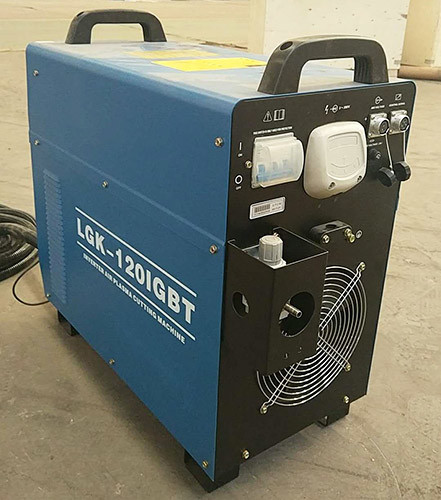

Chinese LGK-120IGBT |
Effective Cutting Size: |
1500X3000mm |
Cutting Gas: |
Oxygen/ Acetylene/ Propane |
Display: |
LCD7" TFT Color Screen |
Weight: |
90 Kg |
Cutting Speed: |
0~6000mm/min |
Rated Power: |
200W |
Plasma Source: |
Chinese LGK-120IGBT |
1500X3000mm CNC Oxygen Gas Cutter , Chinese LGK-120IGBT Source Plasma Cutting Machine
Machine Applications:
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
configurations of machine:
1. FL-2100 Control system
2. Huayuan plasma power (Option:Hypertherm Power) You can aslo choose machine without power supply.
3. Automatic arc pressure adjustable
4. Stepper motor and driver
5. FastCAM or InteGNPS nesting software
6. Round rails and gear Guide
7. Thicken cast steel structure
8. Wooden box package
Technical Parameters:
| Model | CNC-1200 X 2000 | CNC-1500 X 3000 |
| Input Voltage | 220V/110V | 220V/110V |
| Power Supply Frequency | 50HZ / 60HZ | 50HZ / 60HZ |
| Rated Power Supply | 180W | 180W |
| LCD Dimension | 5.7 Inches | 5.7 Inches |
| Effective Cutting Width (X axis) | 1200mm | 1500mm |
| Effective Cutting Length (Y axis) | 2000/3000/6000mm | 2000/3000/6000mm |
| Cutting Speed | 0-2500mm per minute | 0-2500mm per minute |
| Plasma Cutting Thickness | 2--20mm (0.08''--0.79'') | 2--20mm (0.08''--0.79'') |
| Flame Cutting Thickness | 6--150mm (0.2''--5.9'') | 6--150mm (0.2''--5.9'') |
| Emergency Stop Button | No | Yes |
| Free (Off) Button | No | Yes |
| Cross Beam Length | 1700mm | 2200mm |
| Longitudinal Rail Length | 2500/4000/6000mm | 4000/6000mm |
| Longitudinal Rail Width | 196mm | 345mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 | 600*449*350 |
| Cross Beam Weight | 9.3kg | 12kg |
| Host Machine Weight | 26.7kg | 30kg |
| Longitudinal Rail Weight | 34.5kg | 53.5kg |
| Total Weight | 70.5kg (156 lbs ) | 95.5kg (211 lbs) |
| Gas Pressure | Max. 0.1Mpa (14.5 PSI ) | Max. 0.1Mpa (14.5 PSI ) |
| Oxygen Pressure | Max. 1.0Mpa (145 PSI ) | Max. 1.0Mpa (145 PSI ) |
| Cutting Gas | Acetylene/Propane/Methane | Acetylene/Propane/Methane |
| Plasma Power Source | THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
| Plasma Air | Only pressed Air | Only pressed Air |
| Plasma Air Pressure | Max. 0.8Mpa (116 PSI) | Max. 0.8Mpa (116 PSI) |

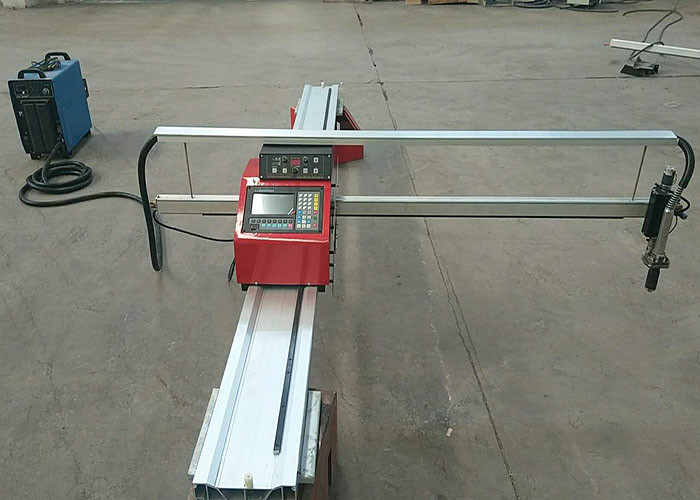

Machine pictures:

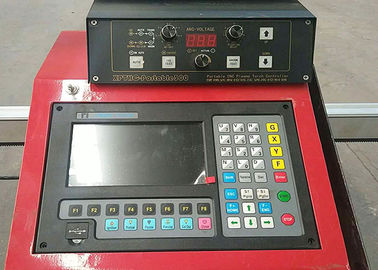

FL-2100 control system + THC controller
Plasma cutting head

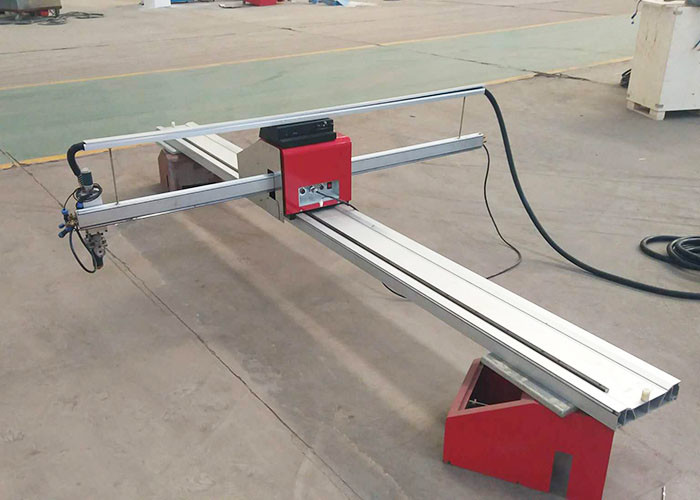

Linear rail
FAQ:
| 1 | Q: Are you a factory or a trading company? A: We are a factory and trading company. |
|||
| 2 | Q: What are the advantages of your company? A:1) Design team of all kinds of cutting tips cutting nozzle,welding tips nozzle, heating nozzle; 2) Complete stock of all kinds of cutting tip cuttin nozzle,welding tips welding nozzle,heating nozzle; 3) Professional and skilled production team; 4) More than 90% parts of Jinfeng are self-made cmponents; 5)We can supply free samples. |
|||
| 3 | Q: Can you provide OEM services? A: Yes,we can provide OEM services. |
|||
| 4 | Q: What about your company package and shipment? A:1) Testing every piece for every order before shipment 2) Professional package for export; 3) Automatic CNC machines for production |
|||
| 5 | Q: What after-sales services does your company include? A:1) Quick feedback for price,technology question; 2) Confident service after sales, we undetaken all cost if it's quality problem. |
|||
