Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1500X6000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Size: |
1500X6000mm |
Cutting Gas: |
Oxygen/ Acetylene/ Propane |
Display: |
LCD7" TFT Color Screen |
Cutting Speed: |
0~6000mm/min |
Rated Power: |
200W |
Warranty: |
1 Year |
Effective Cutting Size: |
1500X6000mm |
Cutting Gas: |
Oxygen/ Acetylene/ Propane |
Display: |
LCD7" TFT Color Screen |
Cutting Speed: |
0~6000mm/min |
Rated Power: |
200W |
Warranty: |
1 Year |

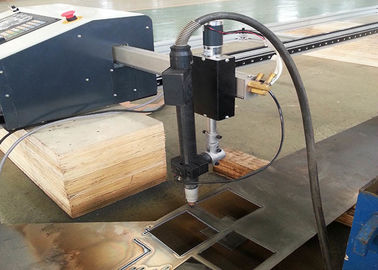

Customized CNC Plasma Cutting Machine 1500X6000mm With LCD7" TFT Color Screen
This Portable CNC Flame Plasma cutter machine can cut mild steel with oxy fuel gas cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Features:

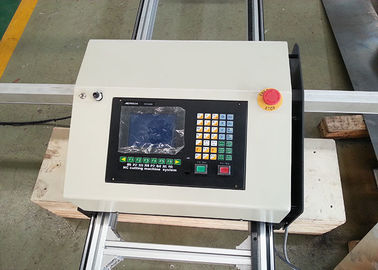

1. FL-2100 or Adtech HC4300 control system.
2. Chinese Huayuan plasma generator or USA Hypertherm or Victor plasma generator.
3. Cutting Material Collection Box with wheels,for easy take out products.
4. High Quality cut performance ,Fast cutting speed,high precision and low cost.
5. With firm and reasonable structure,the machine is easy to operate and durable for use.
6. The cutting incision is thin and tidily and can avoid the second processing.
7. High configurated CNC system,auto arc-striking and stable performance.
8. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)
9. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)
Technical Parameters:
| Model | CNC-1200 X 2000 | CNC-1500 X 3000 |
| Input Voltage | 220V/110V | 220V/110V |
| Power Supply Frequency | 50HZ / 60HZ | 50HZ / 60HZ |
| Rated Power Supply | 180W | 180W |
| LCD Dimension | 5.7 Inches | 5.7 Inches |
| Effective Cutting Width (X axis) | 1200mm | 1500mm |
| Effective Cutting Length (Y axis) | 2000/3000/6000mm | 3000/6000mm |
| Cutting Speed | 0-2500mm per minute | 0-2500mm per minute |
| Plasma Cutting Thickness | 2--20mm (0.08''--0.79'') | 2--20mm (0.08''--0.79'') |
| Flame Cutting Thickness | 6--150mm (0.2''--5.9'') | 6--150mm (0.2''--5.9'') |
| Emergency Stop Button | No | Yes |
| Free (Off) Button | No | Yes |
| Cross Beam Length | 1700mm | 2200mm |

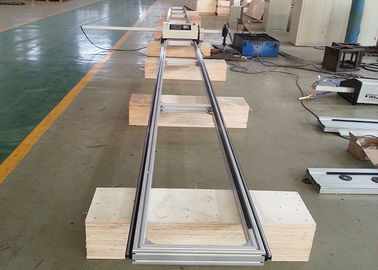

| Longitudinal Rail Length | 2500/4000/6000mm | 4000/6000mm |
| Longitudinal Rail Width | 196mm | 345mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 | 600*449*350 |
| Cross Beam Weight | 9.3kg | 12kg |
| Host Machine Weight | 26.7kg | 30kg |
| Longitudinal Rail Weight | 34.5kg | 53.5kg |
| Total Weight | 70.5kg (156 lbs ) | 95.5kg (211 lbs) |
| Gas Pressure | Max. 0.1Mpa (14.5 PSI ) | Max. 0.1Mpa (14.5 PSI ) |
| Oxygen Pressure | Max. 1.0Mpa (145 PSI ) | Max. 1.0Mpa (145 PSI ) |
| Cutting Gas | Acetylene/Propane/Methane | Acetylene/Propane/Methane |
| Plasma Power Source | THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
| Plasma Air | Only pressed Air | Only pressed Air |
| Plasma Air Pressure | Max. 0.8Mpa (116 PSI) | Max. 0.8Mpa (116 PSI) |
