Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1500X3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Size: |
1500X3000mm |
Cutting Gas: |
Oxygen/ Acetylene/ Propane |
Display: |
LCD7" TFT Color Screen |
Cutting Speed: |
0~6000mm/min |
Rated Power: |
200W |
Warranty: |
1 Year |
Control System: |
FastCAM Control System |
Effective Cutting Size: |
1500X3000mm |
Cutting Gas: |
Oxygen/ Acetylene/ Propane |
Display: |
LCD7" TFT Color Screen |
Cutting Speed: |
0~6000mm/min |
Rated Power: |
200W |
Warranty: |
1 Year |
Control System: |
FastCAM Control System |

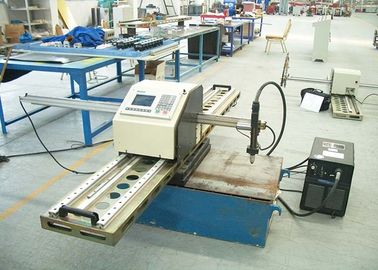

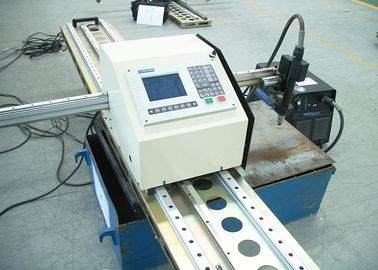

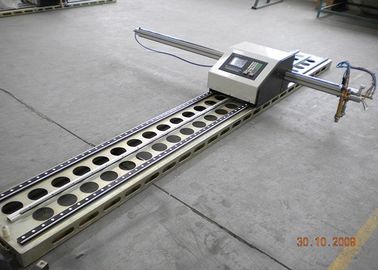

1500X3000mm CNC Portable Plasma Oxygen Gas Metal Sheet Cutting Machine with FastCAM Sysytem
Portable cnc flame/plasma cutting machine can be programmed to cut any plane shape parts composed of beeline and arc, which are same as large gantry cutting machines .
It is equipped with a 5.7 inch LED with dynamic and static graphical display. It is directly perceived and very easy to learn.
It can be programmed to cutting parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducing it via U hardware.
The standard positioning of this machine is flame cutting, external hanging plasma cutter is also workable.
Features:

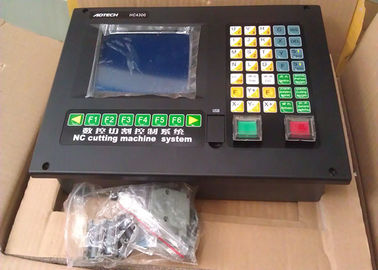

1. FL-2100 or Adtech HC4300 control system.
2. Chinese Huayuan plasma generator or USA Hypertherm or Victor plasma generator.
3. Cutting Material Collection Box with wheels,for easy take out products.
4. High Quality cut performance ,Fast cutting speed,high precision and low cost.
5. With firm and reasonable structure,the machine is easy to operate and durable for use.
6. The cutting incision is thin and tidily and can avoid the second processing.
7. High configurated CNC system,auto arc-striking and stable performance.
8. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)
9. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)
Technical Parameters:
| Model | CNC-1200 X 2000 | CNC-1500 X 3000 |
| Input Voltage | 220V/110V | 220V/110V |
| Power Supply Frequency | 50HZ / 60HZ | 50HZ / 60HZ |
| Rated Power Supply | 180W | 180W |
| LCD Dimension | 5.7 Inches | 5.7 Inches |
| Effective Cutting Width (X axis) | 1200mm | 1500mm |
| Effective Cutting Length (Y axis) | 2000/3000/6000mm | 3000/6000mm |
| Cutting Speed | 0-2500mm per minute | 0-2500mm per minute |
| Plasma Cutting Thickness | 2--20mm (0.08''--0.79'') | 2--20mm (0.08''--0.79'') |
| Flame Cutting Thickness | 6--150mm (0.2''--5.9'') | 6--150mm (0.2''--5.9'') |
| Emergency Stop Button | No | Yes |
| Free (Off) Button | No | Yes |
| Cross Beam Length | 1700mm | 2200mm |
| Longitudinal Rail Length | 2500/4000/6000mm | 4000/6000mm |
| Longitudinal Rail Width | 196mm | 345mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 | 600*449*350 |
| Cross Beam Weight | 9.3kg | 12kg |
| Host Machine Weight | 26.7kg | 30kg |
| Longitudinal Rail Weight | 34.5kg | 53.5kg |
| Total Weight | 70.5kg (156 lbs ) | 95.5kg (211 lbs) |
| Gas Pressure | Max. 0.1Mpa (14.5 PSI ) | Max. 0.1Mpa (14.5 PSI ) |
| Oxygen Pressure | Max. 1.0Mpa (145 PSI ) | Max. 1.0Mpa (145 PSI ) |
| Cutting Gas | Acetylene/Propane/Methane | Acetylene/Propane/Methane |
| Plasma Power Source | THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
THERMADYNE Cutmaster A120 / Hypertherm PowerMAX 105 |
| Plasma Air | Only pressed Air | Only pressed Air |
| Plasma Air Pressure | Max. 0.8Mpa (116 PSI) | Max. 0.8Mpa (116 PSI) |
Machine in Customer's Workshop:
CNC plasma cutting machine cutting effect display:
Package:
(1) Outer package: plywooden case package.
(2) Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed by corrugated cartons.
(3) Container loading: 31 sets for 20GP, and 65 sets for 40GP.
(4) The package can be designed according to clients' requirements.
