|Place of Origin:||China|
|Certification:||CE, ISO, CCC|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Plywooden box|
|Delivery Time:||20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets per month|
|Effective Cutting Size:||1500X3000mm||Cutting Gas:||Oxygen/ Acetylene/ Propane|

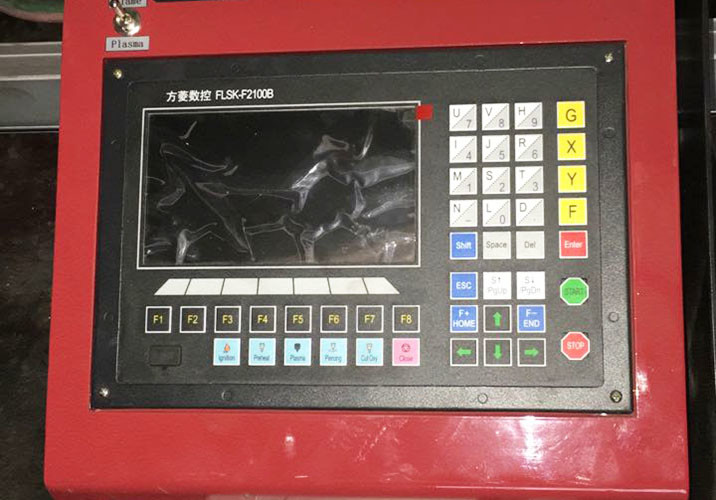

|Display:||LCD7" TFT Color Screen||Cutting Speed:||0~6000mm/min|
|Rated Power:||200W||Warranty:||1 Year|
cnc metal cutting machine,
cnc steel cutting machine

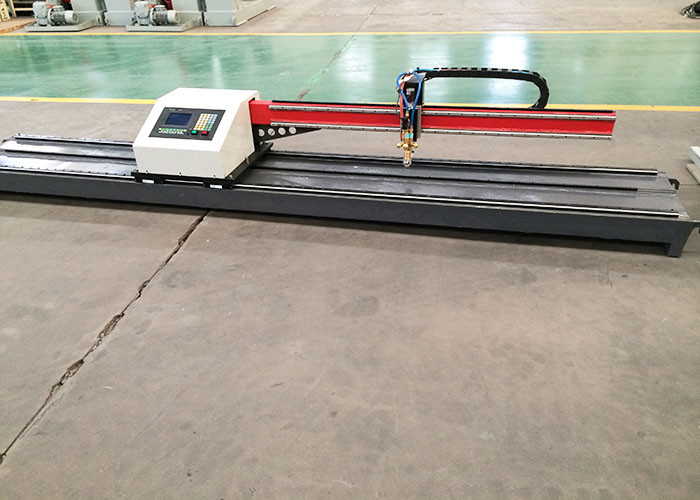

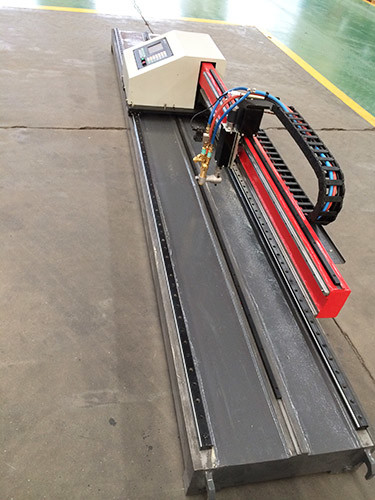

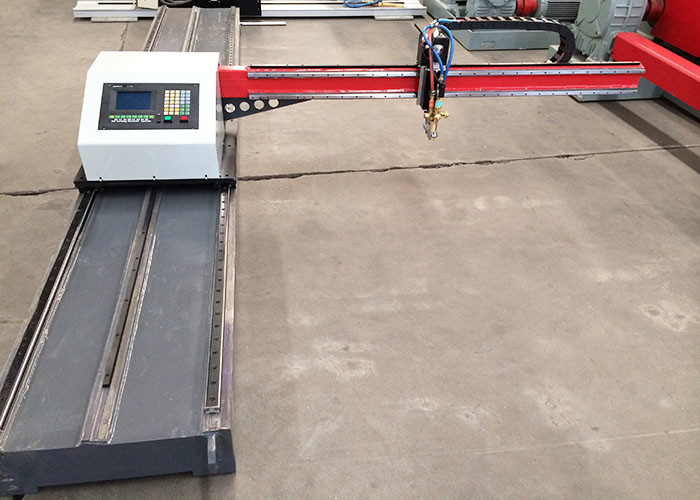

Heavy Duty Flame CNC Plasma Cutting Machine Portable 1500X3000mm 200W Rated Power
Description of Portable cutting machine
Operation and maintenance of a foolCNC flame design, dualuse plasma cutting machine, is devoted to sheet metal cutting CNCequipment. To achieve a variety of metal materials by any graphic material cutting next. I cut roughness of up to 25,after cutting the cut surface under normal circumstances does not require processing on the surface. With a high degree ofautomation, easytouse, high accuracy, high reliability and low price, operation, mainte nance, etc. is very simple and widely applicable to the manufacture of machine tools, shipbuilding, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries
Main feature of Portable cutting machine
1) Simple and easy to learn, easy interface.
CAD graphics through the conversion software automatically take the path of a knife, cut inside and
outside the automaticidentification, automatically generated the introduction of Lead. Sort reasonable, with priority holes. Individual parts cutting priority, you can use graphicsfor a special closedcutting. Cut long, the most effective reduction of heat distortion. With imports type3, Master cam, Pore, China CAXA, Wentai, and other software interface. Slotted automatic compensation, auxiliary material sets, automatic sorting, cutting volume in a row. Automatic takeoff and landing speed, automatic identification of cutting the starting point, the speed of a smooth curve to improve cutting accuracy. U disk with an external manner, the document adopted by the U external disk into a builtin disk U.
Even if the power, data will not be lost. Data compression code the way through the store, greatly enhance the quality of storage. Random encryption methods to ensure data security.
2) Easy to use, easy to maintain.
Friendly interface, prompted random method of operation, the keyboard is simple, quick operation, at a glance. Lights can interface directly fault diagnosis.
3) Low piece ,super quality and compact.
Reasonable arrangements for the spacesaving, compact robust design of the structure, making the machine run more smoothly, cutting quality assurance.
4) To increase anti-processing, to the maximum to avoid the failure rate.
5) Automatic hight controller,starting fire automatically,big LED screen.
|Model||CNC-1200 X 2000||CNC-1500 X 3000|
|Power Supply Frequency||50HZ / 60HZ||50HZ / 60HZ|
|Rated Power Supply||180W||180W|
|LCD Dimension||5.7 Inches||5.7 Inches|
|Effective Cutting Width (X axis)||1200mm||1500mm|
|Effective Cutting Length (Y axis)||2000/3000/6000mm||3000/6000mm|
|Cutting Speed||0-2500mm per minute||0-2500mm per minute|
|Plasma Cutting Thickness||2--20mm (0.08''--0.79'')||2--20mm (0.08''--0.79'')|
|Flame Cutting Thickness||6--150mm (0.2''--5.9'')||6--150mm (0.2''--5.9'')|
|Emergency Stop Button||No||Yes|
|Free (Off) Button||No||Yes|
|Cross Beam Length||1700mm||2200mm|
|Longitudinal Rail Length||2500/4000/6000mm||4000/6000mm|
|Longitudinal Rail Width||196mm||345mm|
|Host Machine Dimension (L*W*H mm)||508*344*305||600*449*350|
|Cross Beam Weight||9.3kg||12kg|
|Host Machine Weight||26.7kg||30kg|
|Longitudinal Rail Weight||34.5kg||53.5kg|
|Total Weight||70.5kg (156 lbs )||95.5kg (211 lbs)|
|Gas Pressure||Max. 0.1Mpa (14.5 PSI )||Max. 0.1Mpa (14.5 PSI )|
|Oxygen Pressure||Max. 1.0Mpa (145 PSI )||Max. 1.0Mpa (145 PSI )|
|Plasma Power Source||THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
|THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
|Plasma Air||Only pressed Air||Only pressed Air|
|Plasma Air Pressure||Max. 0.8Mpa (116 PSI)||Max. 0.8Mpa (116 PSI)|
CNC plasma cutting machine cutting effect display:
Cnc plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.
