Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine

1 set
MOQ
Negotiable
Price
Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
CNC System: Fangling FL-2100
Flame Height Controller: Hongyuda
Nesting Software: FastCAM, InteGNPS, Etc.
Cutting Material: Mild Steel, Metal
Type: CNC Gas Cutting
Warranty: 1 Year
Highlight:

cnc metal cutting machine

,

plasma metal cutting machine
Basic Infomation
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1500
Payment & Shipping Terms
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Product Description



Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine



This product is an economic, easy-to-use operation and maintenance type CNC flame & plasma cutting machine which is devoted to many kinds of metal sheet cutting. To achieve a variety of metal materials by any graphic material cutting, after cutting the cut surface under normal circumstances does not require processing on the surface. With a high degree of automation, easy-to-use, high accuracy, high reliability and low price, operation, maintenance etc.



Applicable materials:



Iron plate, aluminum plate, titanium, stainless steel plate, galvanized sheet, white steel plate, metal materials.



Machine Application:



Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.



Machine Structure:

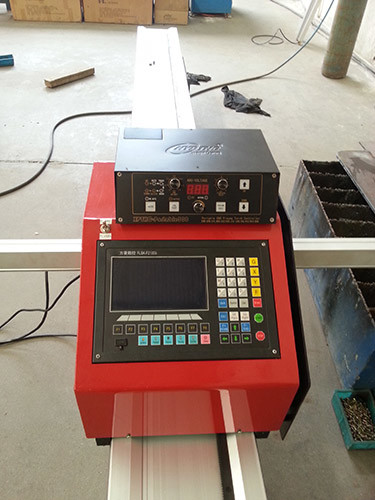

Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine 0 China FangLing FL-2100 CNC System
Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine 1

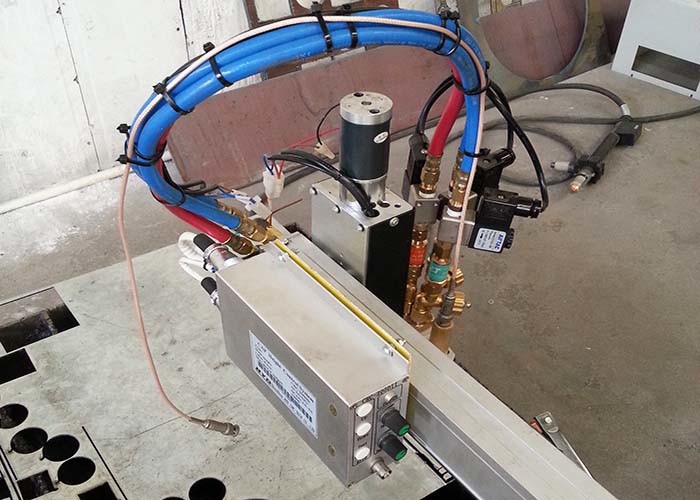

Flame Torch Height Controller

Model: CHC-200
Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine 2

Gas Cutting Torch

6-150mm Cutting Thickness

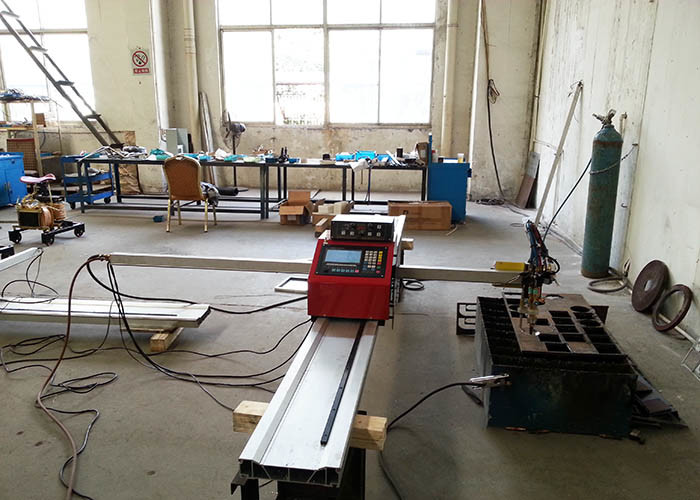

Flame Torch Automated Plasma Cutting Machine , Height Controller Small Cnc Cutting Machine 3 Rail Base



Technical Parameters:



Model CNC-1200 X 2000 CNC-1500 X 3000
Input Voltage 220V/110V 220V/110V
Power Supply Frequency 50HZ / 60HZ 50HZ / 60HZ
Rated Power Supply 180W 180W
LCD Dimension 5.7 Inches 5.7 Inches
Effective Cutting Width (X axis) 1200mm 1500mm
Effective Cutting Length (Y axis) 2000/3000/6000mm 3000/6000mm
Cutting Speed 0-2500mm per minute 0-2500mm per minute
Plasma Cutting Thickness 2--20mm (0.08''--0.79'') 2--20mm (0.08''--0.79'')
Flame Cutting Thickness 6--150mm (0.2''--5.9'') 6--150mm (0.2''--5.9'')
Emergency Stop Button No Yes
Free (Off) Button No Yes
Cross Beam Length 1700mm 2200mm
Longitudinal Rail Length 2500/4000/6000mm 4000/6000mm
Longitudinal Rail Width 196mm 345mm
Host Machine Dimension (L*W*H mm) 508*344*305 600*449*350
Cross Beam Weight 9.3kg 12kg
Host Machine Weight 26.7kg 30kg
Longitudinal Rail Weight 34.5kg 53.5kg
Total Weight 70.5kg (156 lbs ) 95.5kg (211 lbs)
Gas Pressure Max. 0.1Mpa (14.5 PSI ) Max. 0.1Mpa (14.5 PSI )
Oxygen Pressure Max. 1.0Mpa (145 PSI ) Max. 1.0Mpa (145 PSI )
Cutting Gas Acetylene/Propane/Methane Acetylene/Propane/Methane
Plasma Power Source THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105		 THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
Plasma Air Only pressed Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa (116 PSI) Max. 0.8Mpa (116 PSI)
