Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC2-1500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Effective Cutting Size: |
1500X3000mm |
Plasma Cutting Thickness: |
Depends On Plasma Source |
Moving Speed: |
20m/min |
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Effective Cutting Size: |
1500X3000mm |
Plasma Cutting Thickness: |
Depends On Plasma Source |
Moving Speed: |
20m/min |

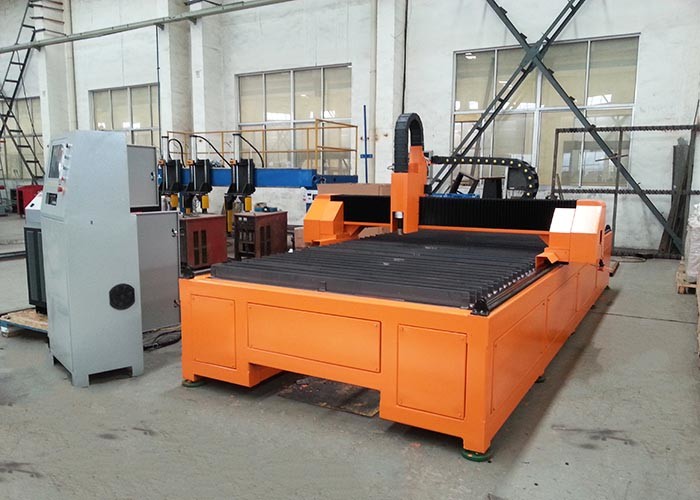

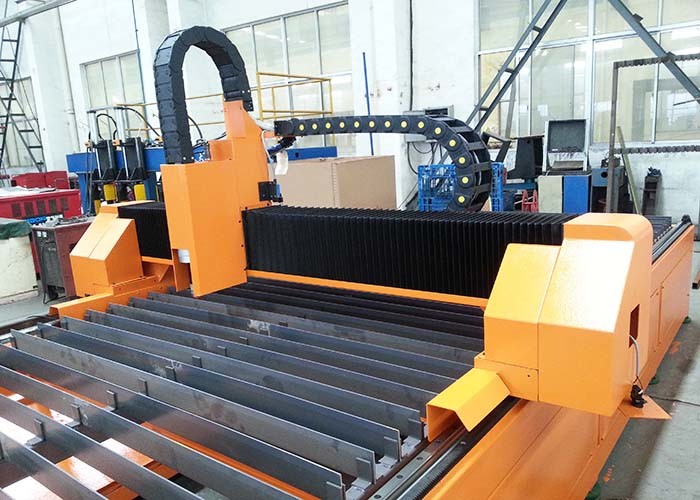

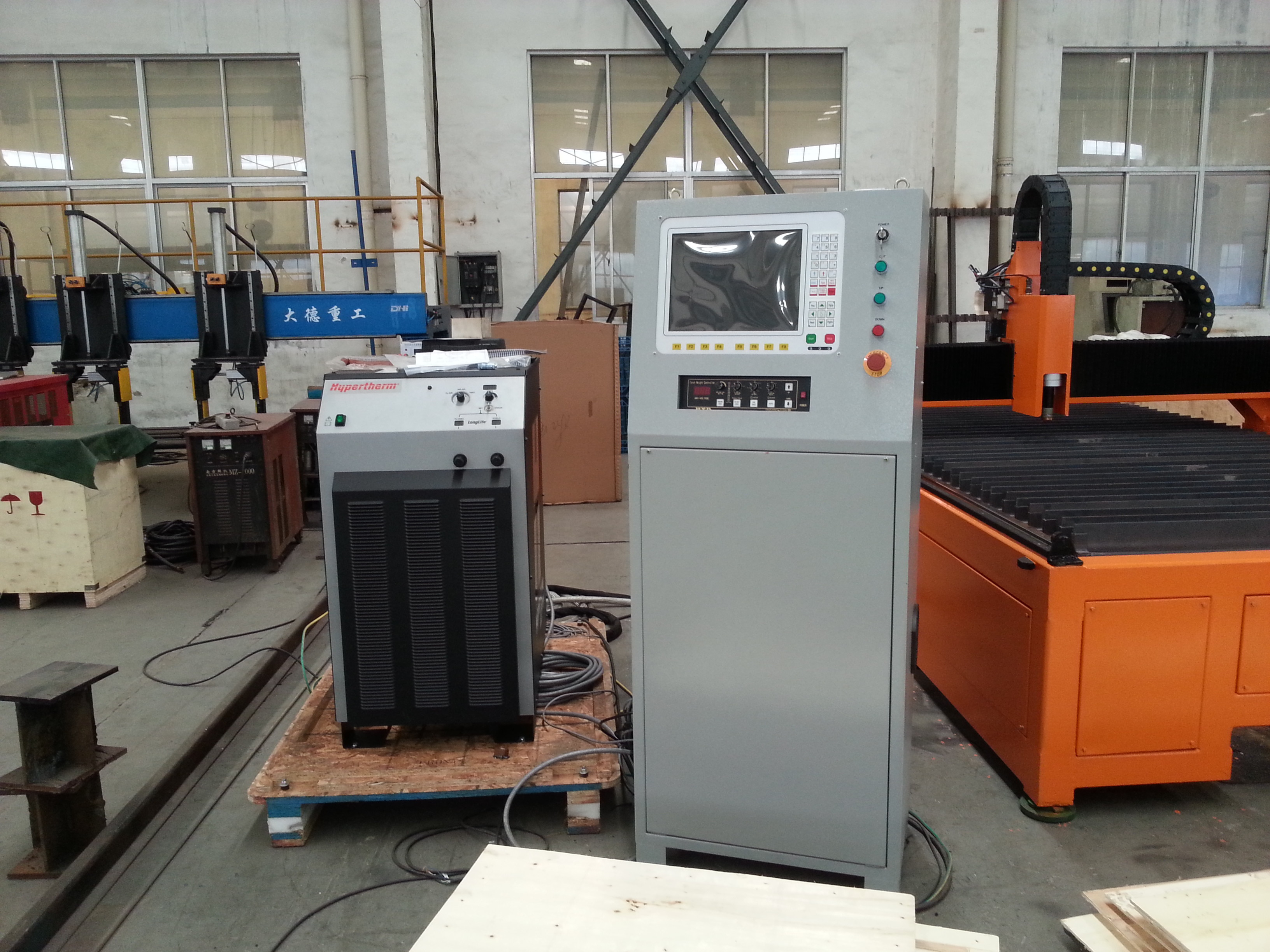

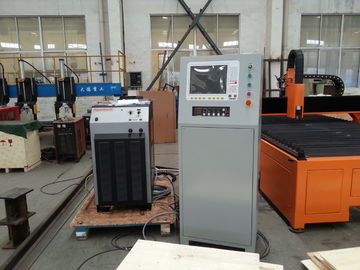

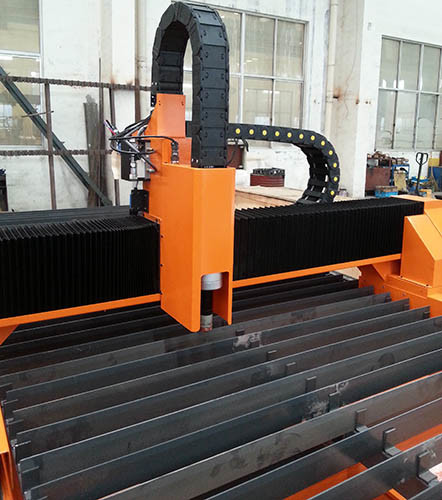

CNC Table Type Plasma and Flame Cutting Machine for Metal and Steel Plates
Description:
Operation and maintenance of a fool-CNC flame design, dual-use plasma cutting machine, is devoted to sheet metal cutting CNC equipment.
To achieve a variety of metal materials by any graphic material cutting next,after cutting the cut surface under normal circumstances does not require processing on the surface.
With a high degree of automation, easytouse, high accuracy, high reliability and low price, operation, maintenance, etc.
Application:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc .
Thus is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries .
Features:
1. All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
2. Dual drive, stable performance .
3. The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk.
The software can be edict graphics automatically.
4. Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5. Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
6. Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7. There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
8. With break point or interruption of power ,memory function.
Technical Parameters:
| Model | CNC2-1500 | CNC2-2000 |
| Effective cutting width | 1500mm | 2000mm |
| Effective cutting length | 2000-6000mm | |
| Driving speed | 0～24000mm/min | |
| Guide precision | ±0.2mm | |
| Vertical precision | ±0.3mm | |
| Integrated line precision | ±0.5mm | |
| Cutting precision | German D/N 2310 standard industrial grade standard | |
| Cutting torch quantity | 1 | |
| Cutting method | Flame or dry type plasma or fine plasma | |
Cutting Samples:
Company:
Wuxi Metalwork Machinery Co., Ltd. is a professional engaged in the development, design, manufacture in modern science and technology of welding equipment manufacturer company. The company was established over the years, continue to introduce and absorb advanced technology, has a group of experienced engineers, professional and technical personnel and customer service service team, and has perfect machining capacity the products with advanced technology, excellent performance, reasonable structure, novel style, good quality.
