Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC2-1500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Effective Cutting Size: |
1500X3000mm |
Plasma Cutting Thickness: |
Depends On Plasma Source |
Moving Speed: |
20m/min |
CNC System: |
Hypertherm, Fangling, Etc. |
Plasma Source: |
Hypertherm, Victor, Etc. |
Height Controller: |
Hongyuda, Hypertherm, Etc. |
Effective Cutting Size: |
1500X3000mm |
Plasma Cutting Thickness: |
Depends On Plasma Source |
Moving Speed: |
20m/min |

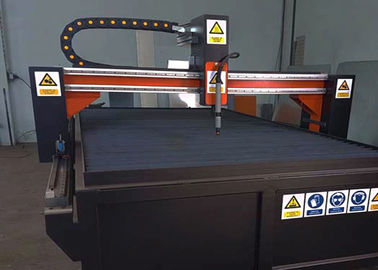

Steel CNC Plasma Cutting Machine CNC2-1500X3000 Table Type Flame High Accuracy
Description:
Operation and maintenance of a fool-CNC flame design, dual-use plasma cutting machine, is devoted to sheet metal cutting CNC equipment.
To achieve a variety of metal materials by any graphic material cutting next,after cutting the cut surface under normal circumstances does not require processing on the surface.
With a high degree of automation, easytouse, high accuracy, high reliability and low price, operation, maintenance, etc.
Components of Plasma Cutting Machine:
A: Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B: Plamsa torch or flame torch.
C: Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.
D: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
E: Height adjustment: Torch Height Controllor (can cut different height material ).
Features:
1. Low noise and high running accuracy.
2. Occupies a small place.
3. Operates with high efficiency.
4. Cuts automatically with high precision and uses materials effectively.
5. It is of compacted design, light weight and is small in size.
6. It is easy to move, suitable for the site indoor or outdoor.
7. The control system is independently designed and developed with optimized programming, easy to learn and operate.
8. The operation interface, simple and clear, can store over 80 programs.
9. LCD screen of dynamic and static display of graphics can convert the CAD file to the programmed one in the computer and transmit it to the machine via a USB flash disk before automatic cutting performance which can also be made by inputting the simple instruction in the machine for programming cutting.
Technical Parameters:
| Model | CNC2-1500 | CNC2-2000 |
| Effective cutting width | 1500mm | 2000mm |
| Effective cutting length | 2000-6000mm | |
| Driving speed | 0～24000mm/min | |
| Guide precision | ±0.2mm | |
| Vertical precision | ±0.3mm | |
| Integrated line precision | ±0.5mm | |
| Cutting precision | German D/N 2310 standard industrial grade standard | |
| Cutting torch quantity | 1 | |
| Cutting method | Flame or dry type plasma or fine plasma | |
Application:
CNC Table Type Plasma and Flame Cutting Machine is one kind of multi-functional high-efficiency and high-precision cutting machines.
It can cutting vertical and horizontal straight-line, as well as cutting customized freewill geometrical shape.
Frame-type structure with good rigidity and intensity, Hi-win liner, brand automatic digital AC driving, high quality gear gearbox, steady and easy in operation and excellent in precision.
Cutting Samples:
