Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source

Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source

  • Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source
Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC3-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
CNC System: Hypertherm, Fangling, Etc. Plasma Source: Hypertherm, Victor, Etc.
Height Controller: Hongyuda, Hypertherm, Etc. Nesting Software: FastCAM, InteGNPS, Etc.
Motor: Panasonic Reducer: Shimpo, Neugart
High Light:

cnc metal cutting machine

,

cnc steel cutting machine



Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source​



Application Scope and Material:



CNC cantilever type plasma cutting machine can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc .



Thus is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries .

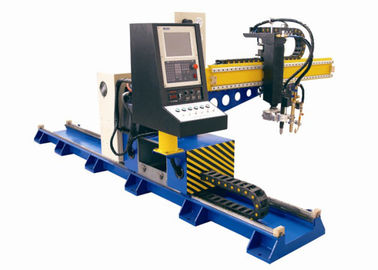

Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source 0





Features:



  •  Economic and affordable for customer's basic requirements.



  •  Configure flame and plasma cutting mode for customer’s selection.



  •  Configure plasma power upto upto Hypertherm HPR260XD or Victor Thermal Dynamics Ultracut200.



  •  Drive system adopts Panasonic digital AC servo system.



  •  CNC system can be equipped with START FL-CNC, EDGE series or according to requests of customers



  •  Flexible cutting size available or customize according to customer's needs.



  •  Automatic ignition,perforation and capacitance height-regulating,plasma cutting equipped with utomatic arc voltage regulating device.



  •  Simple structure ,easy in installation and maintation.



  •  Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



  •  Compact design, can cut by complex 2D shapes and supports oxy-fuel and plasma cutting. Is an ideal equipment for the small and medium-scale enterprises and applies to cut the industrial metallic and nonferrous metal material both indoors and outdoors.



  •  The table CNC cutting machine is equiped with FastCAM or InteGNPS or other programming software,which based on AutoCAD drawing. the software is easy to learn and can automatically convert the AutoCAD drawings into G-code file, and then transfer G-gode file into CNC cutting machine by USB key.



  •  The crossbeam frame adopts single arm rotary structure,which is high strength,rigidity design with removal stress processing,and applies steel guide rail compounded with straight guide rail, which has such functions as good stability and high precision and not distorfion;



Technical Parameters:



Model CNC3-1500
Effective cutting width 1500mm
Effective cutting length 3000-6000mm
Cutting thickness Flame: 6-150mm; Plasma determined by selected cutting power
Cutting speed 50-1000mm/min
Returning speed 50-3000mm/min
Cutting roughness Ra12.5mm
Cutting precision ±0.5mm/m



Cutting Samples:

Cantilever Type CNC Plasma Cutting Machine CNC3-1500X3000 Hypertherm Source 1



Our Service:



1. Warranty: 12 months warranty for this model.



2. Support: Engineers available to service overseas for our cooperators.


3. Inquiry: your inquiry will be replied within 24 hours.
