Big Power Resistance Welding Machine Doule Driven Automatic Water Cooling

1 set
MOQ
Negotiable
Price
Big Power Resistance Welding Machine Doule Driven Automatic Water Cooling
Features Gallery Product Description Request A Quote
Features
Specifications
Controller: KF9
Voltage: 380V Or Customized
Forming Time: 0.1s-10s Adjustable
Welding Mode: Circular Seam Welding
Power: 100 KVA
Color: Grey Or Blue Or White Or Customized
Highlight:

inverter welding machine

,

resistance welding equipment

Basic Infomation
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: FN-100
Payment & Shipping Terms
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Product Description



FN Series Rolling Seam Welding Machine




1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance





Applications:



Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.







Features:



1. Applying adjustable stroke cylinders for compression to avoid CoIIision and damage 0f upper and below electrodes



2. Being drix’an by 3-phase step less speed electrodes. The welding speed adjustment is convenient and stable



3. Longitudinal and horizontal welding is suitable for requirement of different part welding.

Smart and reasonable internal structure reduces welding performance weakening due to heat



4. The rotation conductance or sliver axis tile provides excellent contact and reduces electric energy transformation in maximum.



5. Being widely used in hardware. Household appliance. Auto .Basin making, Can making. And other metal manufacturing and reproducing industry.

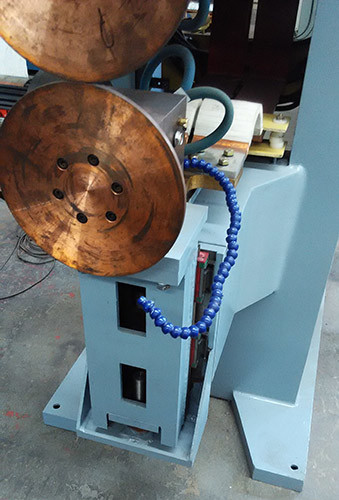

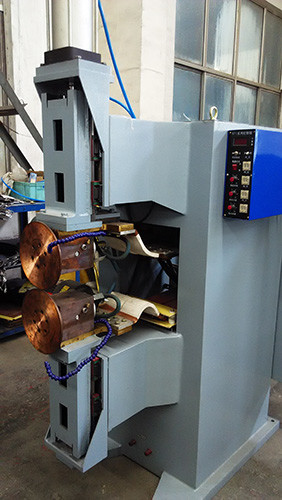

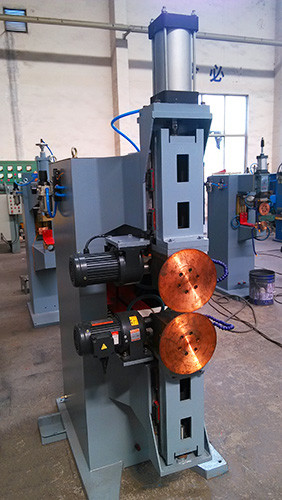

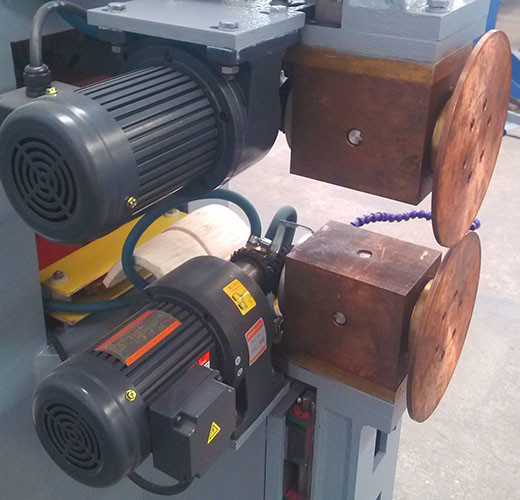

Machine Details:



Big Power Resistance Welding Machine Doule Driven Automatic Water Cooling 0





Technical Parameters:





Model FN-35 FN-50 FN-75 FN-100 FN-125 FN-160
Rated Capacity (KVA) 35 50 75 100 125 160
Input Voltage Single Phase 380V 50Hz
Input Current (A) 92 131 197 263 328 420
Output No-load Voltage (V) 4.2 5 6.1 7.2 8 8.5
Rated Duty Cycle 50%
Max. Welding Thickness (low carbon steel) (mm) 0.6+0.6 0.8+0.8 1+1 1.2+1.2 1.3+1.3 1.5+1.5
Welding Speed 0.8-3.2m/min
Electrode Stroke 20mm
Flow of Cooling Water 120L/h
Weight of Complete Machine (Kg) 470 500 620 720 810 930
