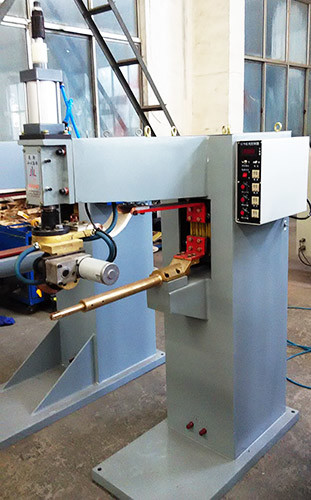

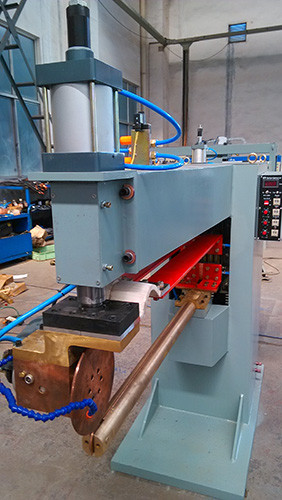

75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe

75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe

  • 75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe
  • 75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe
  • 75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe
  • 75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe
75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: FN-75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Controller: KF9 Voltage: 380V Or Customized
Duty Cycle: 50% Welding Workpiece: Steel Pipe
Color: Grey Or Blue Or White Or Customized Warranty: 1 Year
High Light:

spot welding equipment

,

inverter welding machine



75KVA Resistance Horizontal Seam Welding Machine



Description:



  •  Use the roller electrode to replace the cylindrical electrode of spot welding.



  •  It will generate weld nuggets which will overlap with each other so as to achieve welding effect.



  •  AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.



  •  Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiatior, airplane and fuel tank, rocket and missile. In general, the welding thickness is within 3mm of single sheet.



  •  The welding seam of roll welding is composed of welding spots.



  •  According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.



  •  There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.



Applications:



Suitable for Automobile, motorcycle damper, thermostat probe, battery nickel belt, oil heater, power capacitor, sieve, fry basket, pump manufacturing, can manufacturing, bucket manufacturing, etc.



Features:



  •  High efficiency, high quality. Basically achieve automation. Completely meet the intelligent requirement of human-machine conversation.



  •  The welding spots are good in looking, firm, and stable. Well consistency of welding spots.



  •  Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.



  •  Design Working Life: 8-10 years





Technical Parameters:



Model FN-35 FN-50 FN-75 FN-100 FN-125 FN-160
Rated Capacity (KVA) 35 50 75 100 125 160
Input Voltage Single Phase 380V 50Hz
Input Current (A) 92 131 197 263 328 420
Output No-load Voltage (V) 4.2 5 6.1 7.2 8 8.5
Rated Duty Cycle 50%
Max. Welding Thickness (low carbon steel) (mm) 0.6+0.6 0.8+0.8 1+1 1.2+1.2 1.3+1.3 1.5+1.5
Welding Speed 0.8-3.2m/min
Electrode Stroke 20mm
Flow of Cooling Water 120L/h
Weight of Complete Machine (Kg) 470 500 620 720 810 930





Material Configuration:

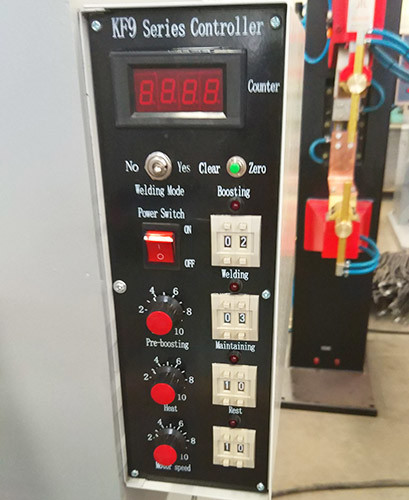

  •  Intelligent microcomputer controller with digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.



  •  Digital circuit control; the components are imported from famous factories in the world to ensure the equipment could operate steadily in the long run.



  •  SEMIKRON and IXYS silicon controlled from West Germany, IR silicon controlled from United States.



  •   The transmission tile axis adopts the latest silver tile conductive technology from abroad.



  •  Welding roll wheel adopts the alloy copper material from Japan.



  •  The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.

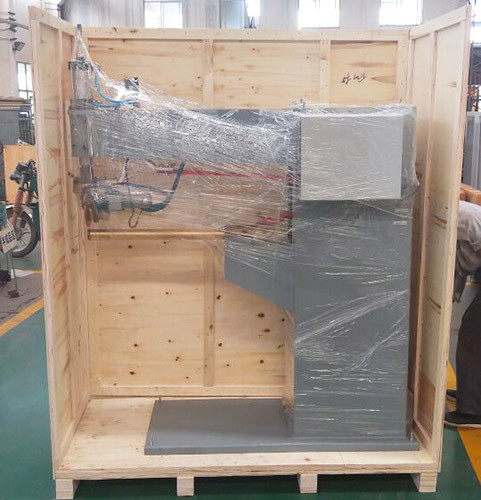

Packing:



75KVA resistance seam welding Machine Horizontal Seam For Steel Pipe 0
