Customized Automatic Resistance Welding Machine For Water Tank Oblique Down Arm

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: ISO, CE, CCC

Model Number: FN-75

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywooden package

Delivery Time: 30 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per month

Get Best Price
High Light:

spot welding equipment

,

resistance welding equipment

Controller:
KF9
Voltage:
380V Or Customized
Duty Cycle:
50%
Welding Workpiece:
Metal Or Steel Products
Color:
Grey Or Blue Or White Or Customized
Warranty:
1 Year
Controller:
KF9
Voltage:
380V Or Customized
Duty Cycle:
50%
Welding Workpiece:
Metal Or Steel Products
Color:
Grey Or Blue Or White Or Customized
Warranty:
1 Year
Customized Automatic Resistance Welding Machine For Water Tank Oblique Down Arm



Customized FN Series Resistance Seam Welding Machine for Water Tank




1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance



Applications:



Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.



Features:



  •  Complete machine structure is Stable.



  •  Bottom arm can be metal arm or copper arm according to customer’s tank diameter.



  •  Adopt stepless adjustment speed drive of three-phase, it is easy to adjust the welding speed steadily.



  •  All of the circuit of welder adopt the type of internal cooling, and the welding wheel adopts the type of external cooling.



  •  The active drive can be chosen upper or lower electrode, it is convenience for user to operate.



  •  The main circuit adopts water cooling and high power SCR, quality is reliable, current output is stable.



  •  Welding machine types: longitudinal welding, horizontal welding, fixed or vertically and horizontally.



  •  According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.



  •  The main transformer adopts high-quality silicon steel sheet and compelling water cooling system, featured of high output power and low consumption.



  •  High-quality cylinders and pneumatic components guarantee the reliable and stable running of pneumatic system.



  •  It is suitable for the welding of basin, barrel, can and sealing thin-wall container that is made of low carbon steel, stainless steel etc.



  •  Applying adjustable stroke cylinders for compression to avoid CoIIision and damage 0f upper and below electrodes



  •  Being drix’an by 3-phase step less speed electrodes. The welding speed adjustment is convenient and stable



  •  The rotation conductance or sliver axis tile provides excellent contact and reduces electric energy transformation in maximum.



  •  Being widely used in hardware. Household appliance. Auto .Basin making, Can making. And other metal manufacturing and reproducing industry





Technical Parameters:





Model FN-35 FN-50 FN-75 FN-100 FN-125 FN-160
Rated Capacity (KVA) 35 50 75 100 125 160
Input Voltage Single Phase 380V 50Hz
Input Current (A) 92 131 197 263 328 420
Output No-load Voltage (V) 4.2 5 6.1 7.2 8 8.5
Rated Duty Cycle 50%
Max. Welding Thickness (low carbon steel) (mm) 0.6+0.6 0.8+0.8 1.0+1.0 1.2+1.2 1.3+1.3 1.5+1.5
Welding Speed 0.8-3.2m/min
Electrode Stroke 20mm
Flow of Cooling Water 120L/h
Weight of Complete Machine (Kg) 470 500 620 720 810 930





Welding Samples:

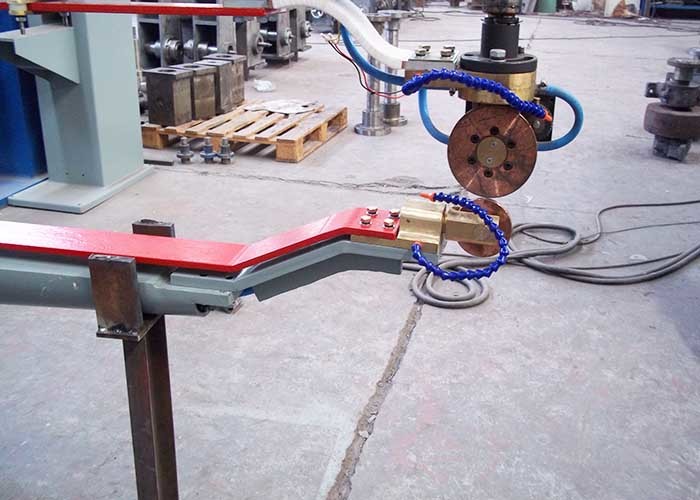

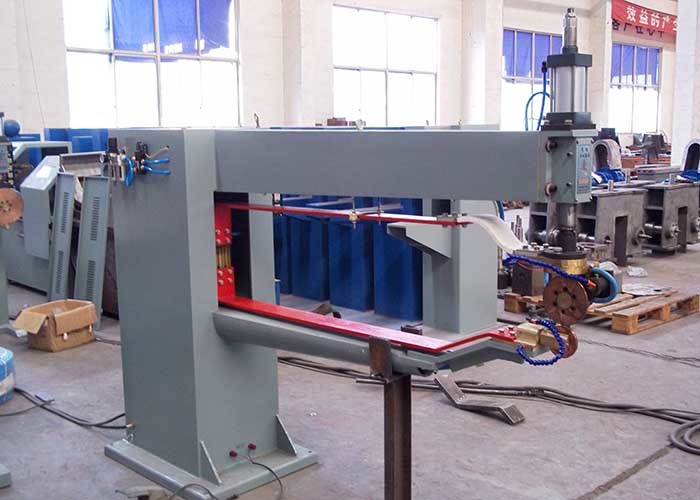

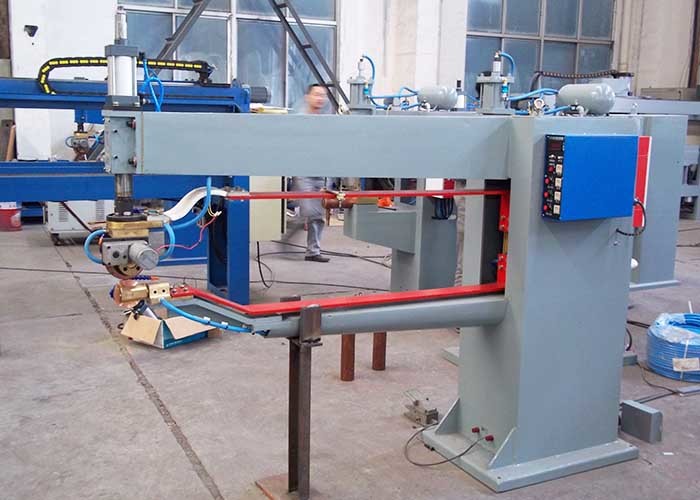

Customized Automatic Resistance Welding Machine For Water Tank Oblique Down Arm 0
