The FN Series Customized Seam Welding Machine for Stainless Steel Sinks is a specialized, application-engineered welding system designed for the precision fabrication of premium stainless steel kitchen and commercial sinks. Built upon the robust FN Series platform, this custom seam welder introduces a groundbreaking feature: a fully adjustable welding wheel angle mechanism. This critical innovation allows the welding wheels to be tilted to the precise angle required to follow the complex curved and corner seams of sink bowls, enabling the production of seamless, leak-proof, and aesthetically superior welds that standard seam welders cannot achieve.

Product Overview:

The FN Series Custom Sink Welder addresses the unique challenge of welding the continuous, watertight seams in stainless steel sinks, particularly at the critical junctions where the vertical bowl walls meet the horizontal bottom or drain slopes. Unlike standard seam welders where wheels are fixed parallel or perpendicular to the electrode arms, this machine features a patented wheel axis tilt adjustment system. This allows operators to set the welding wheel at the optimal angle (typically between 0° and 45°) to maintain perfect contact and consistent pressure along the sink's contoured seam paths. The result is a smooth, uniform, and high-strength weld that is both structurally sound and visually clean, meeting the high standards of the sanitaryware industry.

Machine Structure & Key Components:

• Heavy-Duty FN Series Welded Steel Frame – Reinforced construction to withstand the torsional forces generated during angled wheel welding on thick-gauge stainless steel.

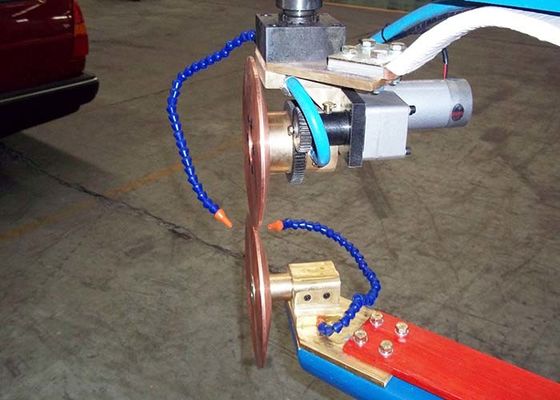

• Patented Adjustable Wheel Angle Mechanism – The core innovation. Features a precision-machined swivel head on both upper and lower electrode arms, allowing independent or synchronized angular adjustment of the welding wheels via calibrated scales and locking handles.
• Precision-Ground Welding Wheels – Specially designed wheels with optimized profiles and materials for welding 304/316 stainless steel, resistant to galling and built-up edge.
• High-Capacity Welding Transformer – Designed for the high electrical resistance of stainless steel, providing stable current output for consistent heat input.
• KF-9 or Advanced Programmable Controller – Robust controller fine-tuned for stainless steel parameters, managing pulse sequences, speed, and current to prevent overheating and carbide precipitation.
• Custom Sink Contour Fixture & Mandrel System – Interchangeable mandrels and support fixtures that match the exact shape and size of the sink bowl, holding the workpiece securely during the welding of complex seams.
• Enhanced Cooling System – High-flow water cooling for transformer, arms, and the adjustable wheel heads to manage the extra heat generated in stainless steel welding.
• Seam Tracking Guidance System (Optional) – A visual or laser guide system to help the operator precisely follow the seam path, especially useful on complex angles.

Key Features & Advantages:

• Revolutionary Adjustable Wheel Angle: This is the defining feature. It enables the welding wheels to be tilted to match the exact slope of the sink's corner seam (e.g., where the side wall meets the bottom), ensuring full wheel contact and uniform pressure distribution. This eliminates "skipping," poor fusion, or excessive indentation that occurs with fixed-angle wheels.
• Superior Weld Quality for Sinks: Produces continuous, smooth, and spatter-free seams that are easy to polish to a flawless finish, meeting the aesthetic demands of high-end sink manufacturing. The consistent weld integrity guarantees long-term leak-proof performance.
• Unmatched Versatility for Complex Profiles: One machine can handle a wide range of sink designs—single bowl, double bowl, drain boards, and varied corner radii—simply by adjusting the wheel angle and changing the fixture mandrel.
• Optimized for Stainless Steel: The entire process—from power supply to wheel material—is configured for 304/316 stainless steel, preventing "sugaring" (oxidation) and minimizing heat-affected zone (HAZ) to preserve corrosion resistance.
• Increased Production Yield: Precise angle control and consistent welding parameters drastically reduce reject rates due to weld defects, rework, or polishing difficulties.
• Ergonomic & Efficient Operation: The intuitive angle adjustment and custom fixturing allow for faster setup and changeover between different sink models compared to makeshift solutions.

Technical Parameters:

Applications:

This machine is exclusively designed for manufacturing:

• Stainless Steel Kitchen Sinks: Top-mount, under-mount, and farmhouse styles.
• Commercial & Institutional Sinks: For restaurants, laboratories, and hospitals.
• Sink Bowls with Integral Drainboards: Welding the long corner seam between the bowl and the draining area.
• Other Sanitary Ware Components: Similar products requiring a continuous, angled seam on stainless steel, such as certain commercial food prep tables or troughs.

Why Choose the FN Series Custom Sink Seam Welder?

• Solves the Fundamental Angled Seam Challenge: It is the only machine that correctly addresses the geometry of sink welding, moving beyond the limitations of standard seam welding machine.
• Delivers Premium Product Quality: Enables manufacturers to produce sinks with seamless, polished welds that command higher market prices and satisfy discerning customers.
• Protects Your Brand Reputation: Consistent, leak-proof welds eliminate costly warranty returns and protect your brand's reputation for quality.
• A Strategic Investment: This specialized capability can become a unique selling proposition (USP) for your manufacturing business, allowing you to take on complex, high-value sink projects competitors cannot.
• Built on a Proven Platform: Leverages the reliability and serviceability of the standard FN Series, ensuring robust performance and available technical support.

For stainless steel sink manufacturers aiming to elevate their product quality, expand their design capabilities, and solve the perennial challenge of perfect corner welds, the FN Series Customized Seam Welding Machine with Adjustable Wheel Angle is the definitive engineering solution. It transforms a difficult manual process into a repeatable, precision operation.
