| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | ISO, CE, CCC |
| Model Number: | FN-75 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per month |
| Controller: | KF9 | Voltage: | 380V Or Customized |
|---|---|---|---|
| Duty Cycle: | 50% | Welding Workpiece: | Wash Basin |
| Color: | Grey Or Blue Or White Or Customized | Warranty: | 1 Year |
| High Light: | spot welding equipment,resistance welding equipment |
||

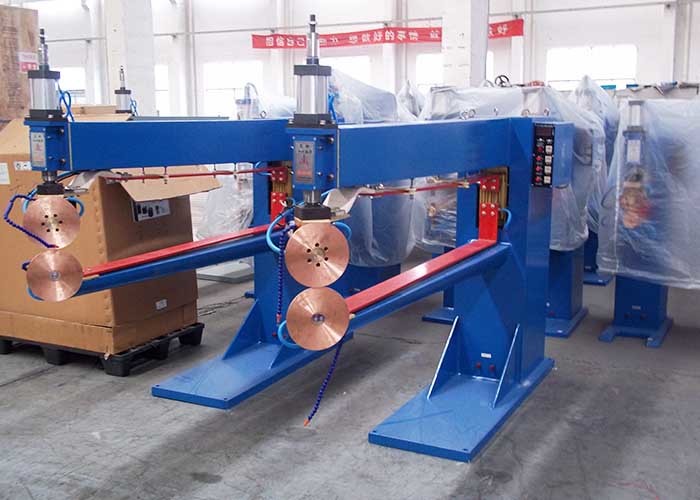

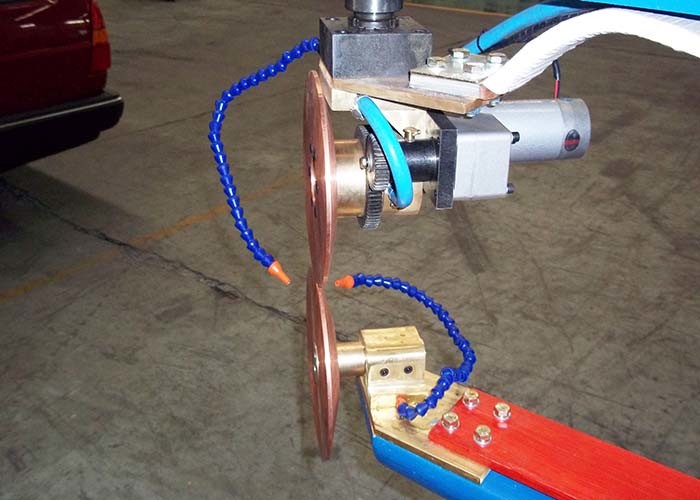

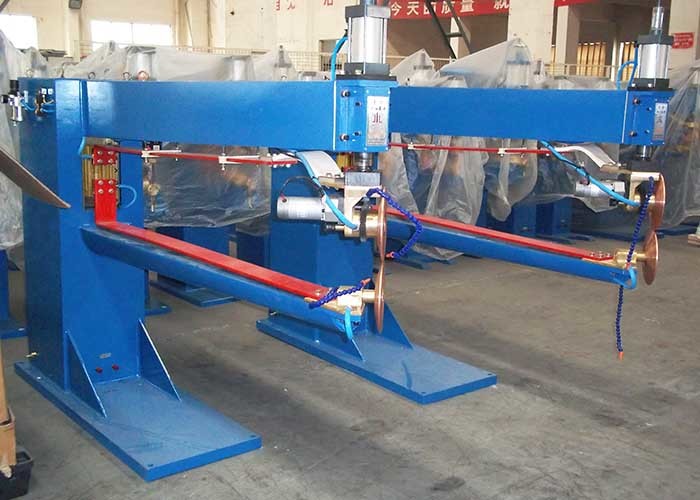

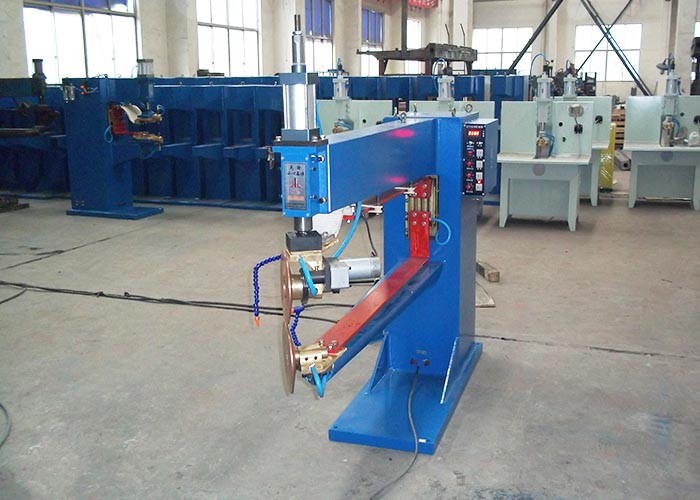

Automatic Resistance Seam Welding Machine for Wash Basin
1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance
Applications:
Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
Features:
Novel structure, special design, good rigidity.
Adopt the high definition guidance institution, high staying quality, piston straight pole pressurizing, high speed welding, pressure steady.
Microcomputer constant pressure control system, twice section discharge, precise control of the welding time and welding current, easy to adjust.
High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protect environmental.
Water-transformer, water-controlled silicon, and water-electrode what can improve the use life of equipment.
It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper, aluminum, iron, stainless steel metal etc.
Technical Parameters:
| Model | FN-35 | FN-50 | FN-75 | FN-100 | FN-125 | FN-160 |
| Rated Capacity (KVA) | 35 | 50 | 75 | 100 | 125 | 160 |
| Input Voltage | Single Phase 380V 50Hz | |||||
| Input Current (A) | 92 | 131 | 197 | 263 | 328 | 420 |
| Output No-load Voltage (V) | 4.2 | 5 | 6.1 | 7.2 | 8 | 8.5 |
| Rated Duty Cycle | 50% | |||||
| Max. Welding Thickness (low carbon steel) (mm) | 0.6+0.6 | 0.8+0.8 | 1.0+1.0 | 1.2+1.2 | 1.3+1.3 | 1.5+1.5 |
| Welding Speed | 0.8-3.2m/min | |||||
| Electrode Stroke | 20mm | |||||
| Flow of Cooling Water | 120L/h | |||||
| Weight of Complete Machine (Kg) | 470 | 500 | 620 | 720 | 810 | 930 |
Final Workpiece:
