Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: ISO, CE, CCC
Model Number: FN-100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Controller: |
KF9 |
Voltage: |
380V Or Customized |
Forming Time: |
0.1s-10s Adjustable |
Welding Mode: |
Circular Seam Welding |
Power: |
100 KVA |
Color: |
Grey Or Blue Or White Or Customized |
Controller: |
KF9 |
Voltage: |
380V Or Customized |
Forming Time: |
0.1s-10s Adjustable |
Welding Mode: |
Circular Seam Welding |
Power: |
100 KVA |
Color: |
Grey Or Blue Or White Or Customized |

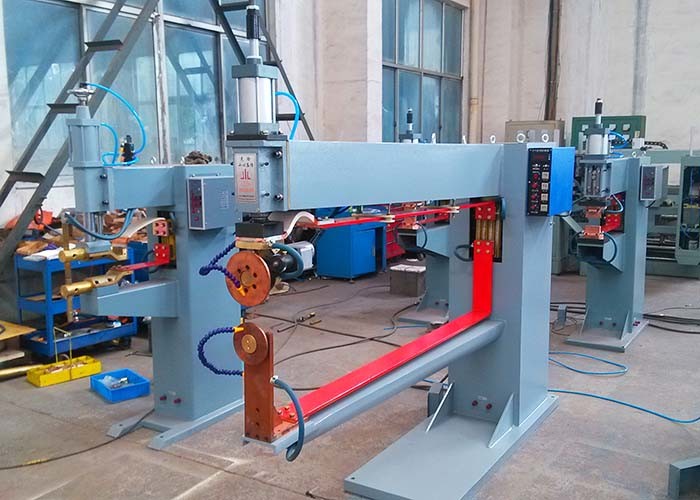

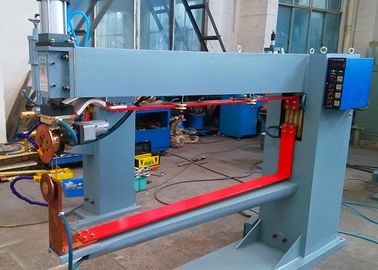

1500mm Length FN-100 Resistance Seam Welding Machine
Metform seam-welding machine adopts three-phase inverter driving, welding speed is uniform, convenient adjustment, stable.Longitudinal sewing machine have painted the welding and welding two forms Metform seam-welding machine is widely applied in hardware, electrical appliances, automobiles, tank and other manufacturing industries, the most suitable for welding low carbon steel, stainless steel bowl, barrel, and sealed containers of thin-walled box.
Features:
1. Applying adjustable stroke cylinders for compression to avoid CoIIision and damage 0f upper and below electrodes
2. Being drix’an by 3-phase step less speed electrodes. The welding speed adjustment is convenient and stable
3. Longitudinal and horizontal welding is suitable for requirement of different part welding.
Smart and reasonable internal structure reduces welding performance weakening due to heat
4. The rotation conductance or sliver axis tile provides excellent contact and reduces electric energy transformation in maximum.
5. Being widely used in hardware. Household appliance. Auto .Basin making, Can making. And other metal manufacturing and reproducing industry.

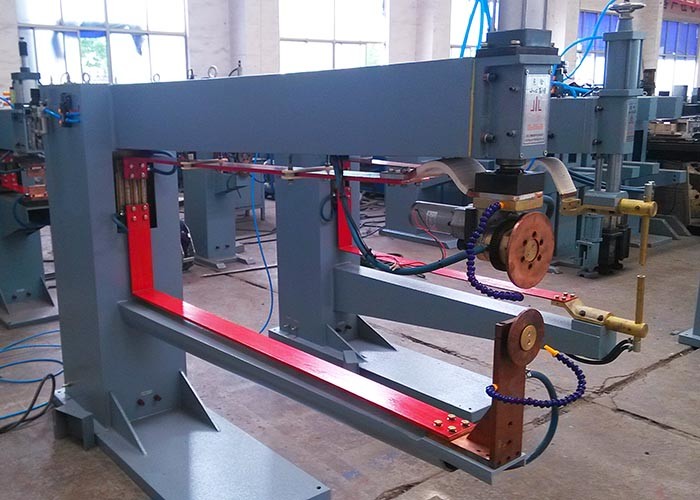

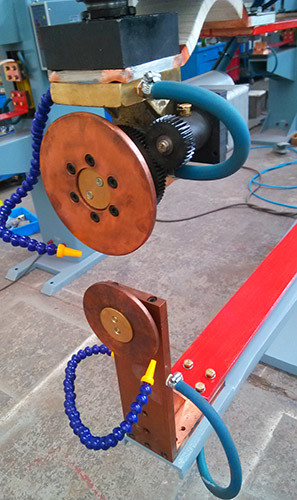

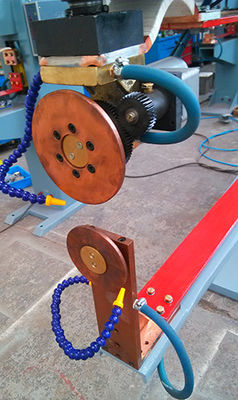

Machine Details:
Technical Parameters:
| Model | FN-35 | FN-50 | FN-75 | FN-100 | FN-125 | FN-160 |
| Rated Capacity (KVA) | 35 | 50 | 75 | 100 | 125 | 160 |
| Input Voltage | Single Phase 380V 50Hz | |||||
| Input Current (A) | 92 | 131 | 197 | 263 | 328 | 420 |
| Output No-load Voltage (V) | 4.2 | 5 | 6.1 | 7.2 | 8 | 8.5 |
| Rated Duty Cycle | 50% | |||||
| Max. Welding Thickness (low carbon steel) (mm) | 0.6+0.6 | 0.8+0.8 | 1.0+1.0 | 1.2+1.2 | 1.3+1.3 | 1.5+1.5 |
| Welding Speed | 0.8-3.2m/min | |||||
| Electrode Stroke | 20mm | |||||
| Flow of Cooling Water | 120L/h | |||||
| Weight of Complete Machine (Kg) | 470 | 500 | 620 | 720 | 810 | 930 |
Welding Samples:
