|Place of Origin:||China|
|Certification:||CE, ISO, CCC|
|Minimum Order Quantity:||1 set|
|Packaging Details:||1 x 20' GP|
|Delivery Time:||40 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets per month|
|Gauge Of Gantry Frame:||2000mm Or As You Request||Width Of Flange:||200-800mm|
|H Beam Height:||200-2000mm||Usage:||H Beam Welding|
|Welding Type:||Boat Type Welding||Warranty:||12 Months|
h beam assembly machine,
h beam welding line
Automatic T Type SAW Welding Machine for Steel Structure

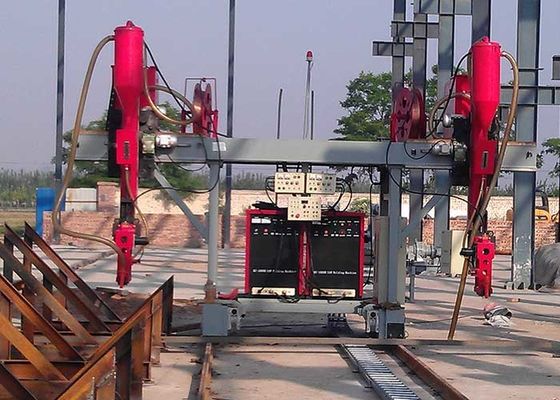

SXBH type Gantry Welding Machine adopts imported alternating frequency changer. It has stable function and fast kickback function. This arc guiding rack is triple axis mechanical tracing way, to ensure the welding gun aim at the correct position. Mainframe and welder are operated together. It is easily operated and high quality.
1) The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.
2) Each of walking beams is driven by a motor reducer, forming a double-drive system, which makes the operation smooth and reliable.
3) The moving of gantry is frequency speed adjust controlled, the welding speed can be adjusted according to welding technology requirement.
4) The electric control system consists of one electric control box and two operation panels. The electric control box is equipped on a walking beam, while the 2 operation panels are fixed on the front of upper platform. They are placed separately, which is convenient for operation.
5) Cantilever type automatic welding machine.The gantry welding machine can weld back and forth to improve the work efficiency. According to the user needs to increase the height of the web.
|Web Height (mm)||200-2000|
|Model of Welding machine||Two sets of model MZ1-1000 SAW welding machine|
|Form of Welding||Ship-welding|
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
