Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-3015-1500W
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Size: |
1500X3000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 20mm |
Color: |
Blue+yellow, Red+black,or Customized |
Warranty: |
1 Year |
Effective Cutting Size: |
1500X3000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 20mm |
Color: |
Blue+yellow, Red+black,or Customized |
Warranty: |
1 Year |

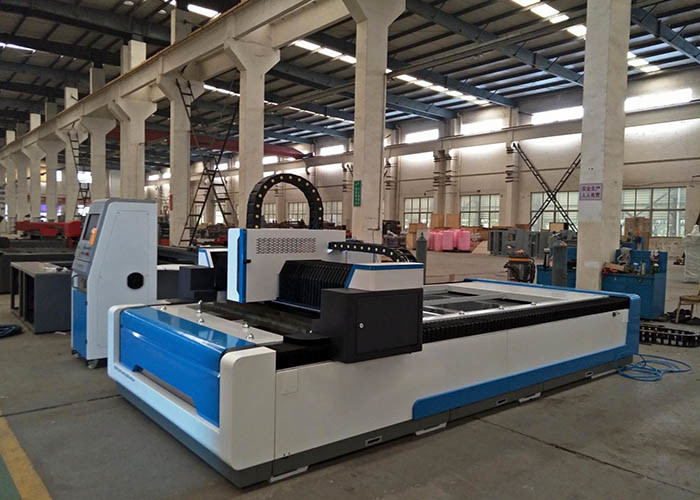

FL-3015-1500W Fiber Laser Cutting Machine
FL-3015-1500W sheet metal laser cutting machine uses of gantry double drive structure,high precision rack rail drive, Baichu Cypcut CNC laser cutting system, high precision collision Laser cutting head, reinforced welding bed, the whole stable and reliable, flexible operation and simple, high-speed drilling to achieve cutting function, professional cutting all kinds of sheet metal, precision accessories, hardware tools, gifts and other metal materials.
Application Scope and Material:
1. Mild steel
2. Stainless steel
3. Aluminum
4. Copper
5. Galvanized sheet
Main Features of Fiber Laser:
(1) High photo-voltaic conversion rate (above 30%), which helps to save electricity and costs greatly to guarantee the highest production efficiency.
(2) When processing, the laser only consumes electricity and doesn’t need extra gas, bringing the minimum operation and maintenance costs.
(3) Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn’t need adjusting and maintaining, which saves the costs and time. In this point, the traditional laser is not comparable.
(4) The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2 wavelength. The output beam is in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great power to cut and weld to make the lowest processing costs.
Main Components:
Technical Parameters:
| Processing Area | 3000mm X 1500mm |
| Max Cutting Speed | 100m/min |
| Max accelerated | 1.5G |
| X/Y Positioning Accuracy | 0.05mm/m |
| X/Y Repeated Positioning Accuracy | ±0.03mm |
| Power supply | 380V 50Hz |
| Laser Power | 500W-1200W |
| Gross power | ＜10KVA (not include fiber laser generator or water chiller) |
| Machine running temperature | 0℃-40℃ |
| Running humidity | ＜90% |
| Whole machine weight | 4000kg |
| Machine dimensions | 4600*2750*1500mm |
| Transmission | Precise pinion and rack,dual-drive transmitting |
1000W Cutting Parameters:
| Material | Thickness mm | Speed m/min | Gas |
| Carbon | 1 | 25—30 | Air |
| Carbon | 2 | 6—8 | O2 |
| Carbon | 3 | 2.5—3.3 | O2 |
| Carbon | 4 | 2.3—2.5 | O2 |
| Carbon | 5 | 1.7—1.9 | O2 |
| Carbon | 6 | 1.2—1.4 | O2 |
| Carbon | 8 | 0.8—1.1 | O2 |
| Carbon | 10 | 0.7—1 | O2 |
| Carbon | 12 | 0.5—0.6 | O2 |
| Material | Thickness mm | Speed m/min | Gas |
| Stainless steel | 1 | 30—35 | N2 |
| Stainless steel | 2 | 5.5—7 | N2 |
| Stainless steel | 3 | 2.2—2.8 | N2 |
| Stainless steel | 4 | 1.2—1.5 | N2 |
| Stainless steel | 5 | 0.48—0.6 | N2 |
| Material | Thickness mm | Speed m/min | Gas |
| Brass | 1 | 9—10 | N2 |
| Brass | 2 | 3—3.5 | N2 |
| Brass | 3 | 0.8—1 | N2 |
| Material | Thickness mm | Speed m/min | Gas |
| Copper | 1.5 | 3.5—4 | O2 |
| Copper | 3 | 0.6—1 | O2 |
| Material | Thickness mm | Speed m/min | Gas |
| Aluminum | 1 | 18—25 | N2 |
| Aluminum | 2 | 5—7 | N2 |
| Aluminum | 3 | 2—2.5 | N2 |
Cutting Samples:
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
