Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: JZ-63-4000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Simple packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V, 3PH Or Customerized |
Frequency: |
50HZ Or Customerized |
Color: |
As Customer's Requirement |
Min Pole Diameter: |
58mm |
Max Pole Diameter: |
400mm |
Weight: |
2800KG |
Voltage: |
380V, 3PH Or Customerized |
Frequency: |
50HZ Or Customerized |
Color: |
As Customer's Requirement |
Min Pole Diameter: |
58mm |
Max Pole Diameter: |
400mm |
Weight: |
2800KG |

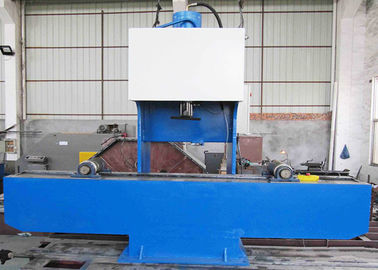

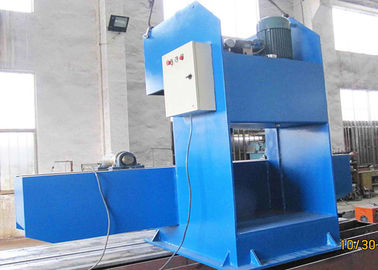

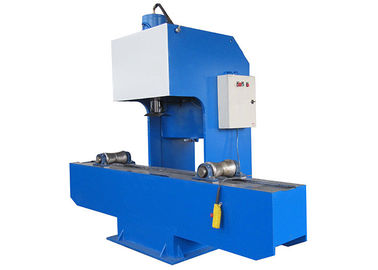

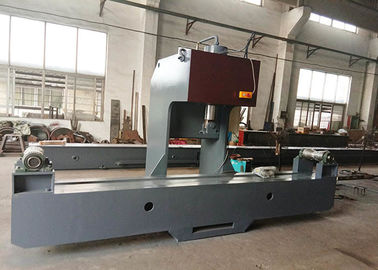

Light Pole / High Mast Straightening Machine to Straight Bent Light Pole 400mm
Application:
It is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.
| TECHNICAL PARAMETER | |||
| Name | Unit | Value | |
| Max. Pole diameter | Mm | 400 | |
| Min. Pole diameter | Mm | 58 | |
| Nominal working pressure | KN | 630 | |
| Length of worktable | Mm | 3000 | |
| Distance between Housing | Mm | 840 | |
| Throat Depth | Mm | 420 | |
| Stroke | Mm | 400 | |
| Max. Open Height | Mm | 510 | |
| Main Motor (for Pump) | Rotate Speed | r/min | 1440 |
| Power | KW | 7.5 | |
| Overall Dimensions | Length | mm | 3000 |
| Width | mm | 1260 | |
| Height | mm | 2230 | |
| Weight | Kg | 2800 | |
| Dimensions | mm | 3000X1260X2230 | |
