Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: ET-5X1250
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Simple packing
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V,3PH,50HZ Or Customerized |
Material: |
Q235 Or Q345 Mild Steel |
Max. Pole Diameter: |
350mm |
Max Pole Length: |
14m |
Usage: |
Light Pole Production |
Weight: |
2T |
Voltage: |
380V,3PH,50HZ Or Customerized |
Material: |
Q235 Or Q345 Mild Steel |
Max. Pole Diameter: |
350mm |
Max Pole Length: |
14m |
Usage: |
Light Pole Production |
Weight: |
2T |

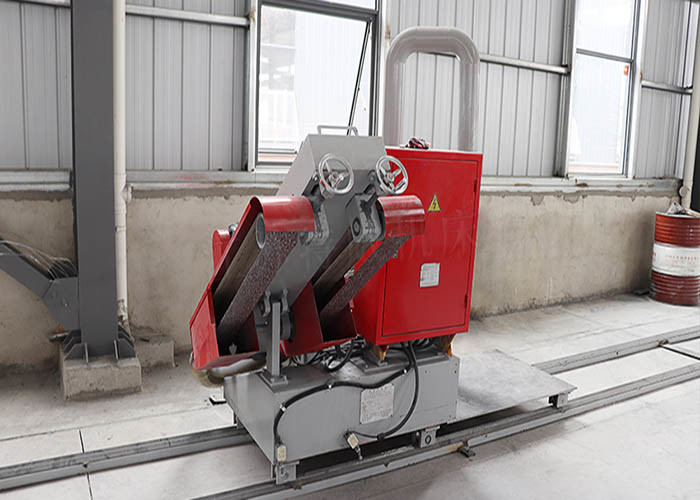

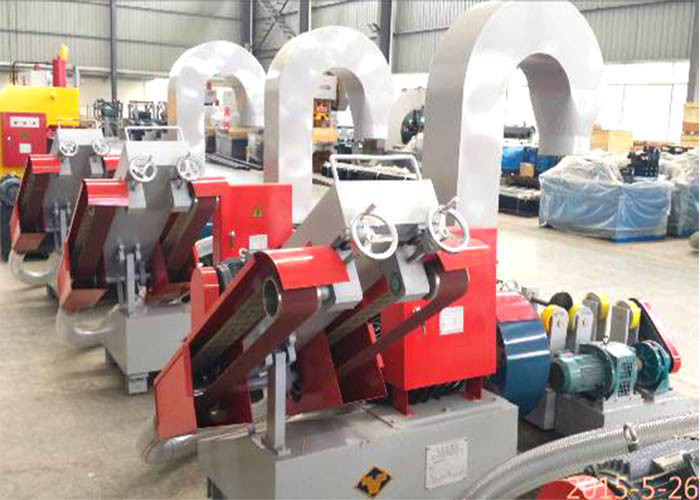

Galvanized Light Pole Auto Polishing Grinding Machine
1)Technical performance:
By the pole rotating and sand belt horizontal moving machine can work automaticly. Sand belt rotation at high speed, polishing the surface of galvanized steel pole. Make the pole surface smooth and bright, it is suitable for galvanized pole entering the next procedure plastic processing. It has the advantages of high speed, simple operation, high efficiency, saving personnel and energy, and is the preferred equipment for polishing the light pole.
2)Technical Parameters:
| item | Value | Unit | Remark | ||
| 1 | Max pole diameter | ø450 | mm | ||
| 2 | pole length | 14000 | mm | can be lengthened or shortened | |
| 3 | pole rotation speed | 5-10 | rpm | ||
| 4 | grinding speed | 1100 | mm/min | ||
| 5 | Overall size | l | 17500 | mm | |
| w | 2000 | mm | |||
| h | 1800 | mm | |||
| 6 | machine weight | 1950 | kg | ||
