Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HJZ-Series
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Simple packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V, 3PH Or Customerized |
Frequency: |
50HZ Or Customerized |
Color: |
As Customer's Requirement |
Max Pole Diameter: |
2500mm |
Total Motor Power: |
27.5KW |
Machine Weight: |
4T~13T |
Voltage: |
380V, 3PH Or Customerized |
Frequency: |
50HZ Or Customerized |
Color: |
As Customer's Requirement |
Max Pole Diameter: |
2500mm |
Total Motor Power: |
27.5KW |
Machine Weight: |
4T~13T |
High Mast Assembly And Straightening - Light Pole Machine Specially Design For High Mast
Application:
This machine is suitable for following process of high mast making.
Characteristics:

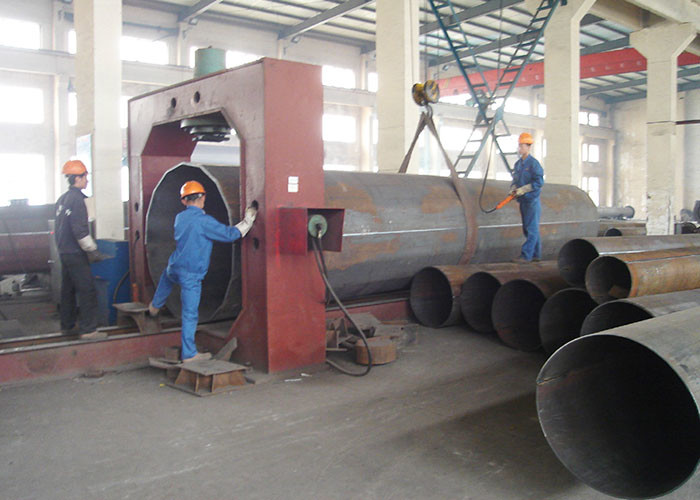

The Three hydraulic cylinder clamping two pieces parts of high mast and do spot welding process.
Press the high mast to making the bottom area round shape, in order to assemble the bottom flange.
Press the high mast for straightening after welding or after welding and Hot Dip Galvanizing process.
Main Technical Features:
| No. | Item | Unit | Value | Value | Value | Value |
| 1 | Model | HJZ-1000 | HJZ-1500 | HJZ-2000 | HJZ-2500 | |
| 2 | Max, diameter of the pole | mm | 1000 | 1500 | 2000 | 2500 |
| 3 | Working force | KN | 1000 | 1200 | 1500 | 1500 |
| 4 | Max stroke | Mm | 650 | 850 | 850 | 1000 |
| 5 | Max distance from rod to worktable | Mm | 1150 | 1650 | 2150 | 2650 |
| 6 | Two-side cylinder output force | KN | 300X2 | 300X2 | 300X2 | 300X2 |
| 7 | Lateral cylinder stroke | mm | 400 | 600 | 650 | 700 |
| 8 | Movement distance from upper to lower for two-side cylinder | mm | 430 | 600 | 850 | 850 |
| 9 | Max working pressure | MPa | 25 | 25 | 25 | 25 |
| 10 | Height above ground of worktable | mm | 305 | 350 | 450 | 550 |
| 11 | Column inner distance | mm | 1450 | 1900 | 2500 | 3000 |
| 12 | Total motor power | kW | 18.5+5.5 | 22+5.5 | 22+5.5 | 22+5.5 |
| 13 | Machine Weight | kg | 4000 | 7000 | 10000 | 13000 |
| 14 | Overall size | mm | 1300*1900*2400 | 1500*3000*2500 | 1600*3500*2800 | 1600*4000*3500 |
Technical performance:

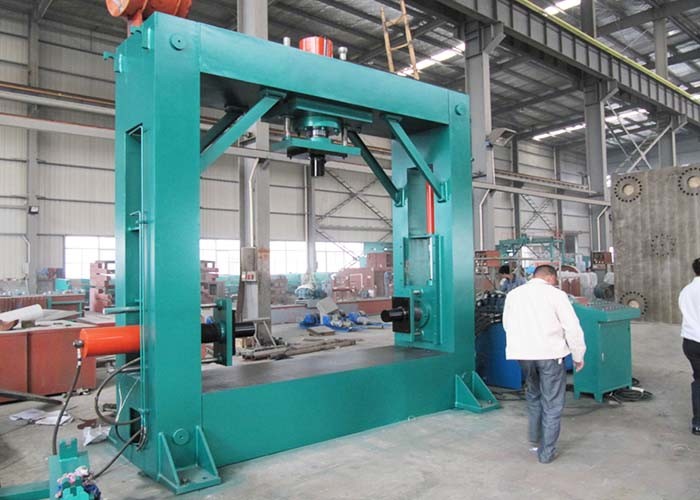

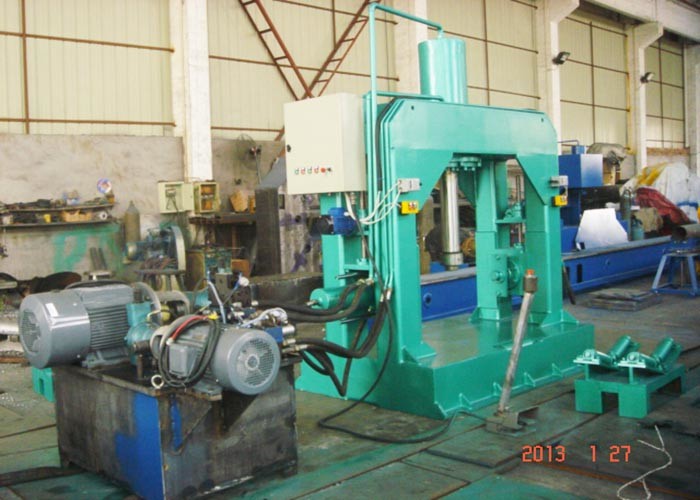

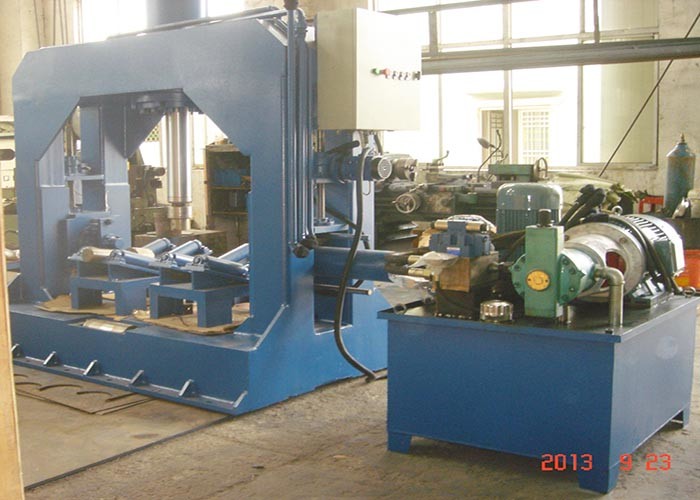

1. The machine is triple-beam and working table structure, main cylinder is installed on the central of upper beam to do up and down. Two side-cylinder is installed in vertical column and it can move up and down.
2. All the actions are manual mode, which means when press corresponding button, relevant action will be made and stop after release, and cylinder on two sides can also be operated separately or simultaneously.
3. Two supporting rollers are installed in the work table’s anteroposterior position, in order to the pole go forward and backward easily.
