Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC2-1500X3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Fangling FL-2500 |
Plasma Source: |

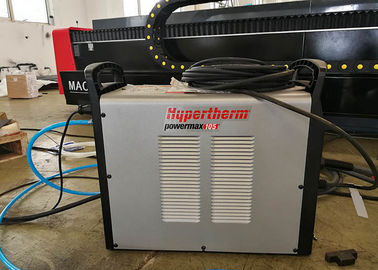

USA Hypertherm Powermax105 |
Height Controller: |
Hongyuda XPTHC-100V |
Nesting Software: |
FastCAM Professional Version |
Motor: |
Japan Panasonic |
Reducer: |
Japan Shimpo |
CNC System: |
Fangling FL-2500 |
Plasma Source: |
USA Hypertherm Powermax105 |
Height Controller: |
Hongyuda XPTHC-100V |
Nesting Software: |
FastCAM Professional Version |
Motor: |
Japan Panasonic |
Reducer: |
Japan Shimpo |

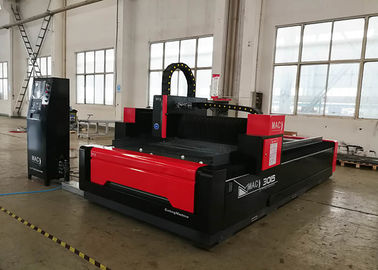

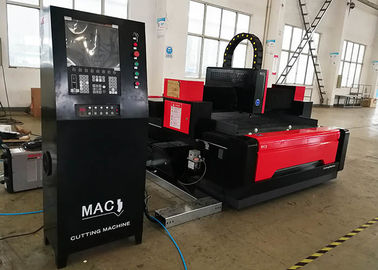

Table Type CNC Plasma Metal Cutting Machine with USA Hypertherm Powermax 105
Application:
Table type CNC plasma cutting machine for steel, copper, aluminum and stainless steel, which are widely used for Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.
Features:
1) This table plasma cutting machine is designed with same machine structure of fiber laser cutting machine. This structure has
good rigidity, high definition.

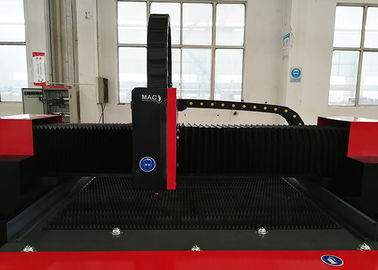

2) The CNC plasma cutting machine has Gantry structure. Y axis adopts double motor double drive and X,Y, X axis adopts double liner guide rail,smooth transmission and high accuracy.
3) Stability and reliability of light path system and control system.
4) Higher cutting quality and efficiency, cutting speed is up to 24m/min with appearance and excellent cutting edge with little thermal deformation,smooth and aesthetic appearance.
5) Panasonic servo motor, Panasonic Shimpo reducer, long worklife, durable driven, high precision +-0.05mm.
6) Adopts Australia FastCAM professional version. Supporting G-code file either generated by ARTCUT, CAXA, ARTCAM, Type3 software or DXF format generated by other software. Control system adopts U disk swapping processing.
7) The CNC plasma cutting machine Control system adopts U disk exchange processing document, easily operate and convenient.
Technical Parameters:
| Model | CNC2-1500 | CNC2-2000 |
| Effective cutting width | 1500mm | 2000mm |
| Effective cutting length | 2000-6000mm | |
| Driving speed | 0～24000mm/min | |
| Guide precision | ±0.2mm | |
| Vertical precision | ±0.3mm | |
| Integrated line precision | ±0.5mm | |
| Cutting precision | German D/N 2310 standard industrial grade standard | |
| Cutting torch quantity | 1 | |
| Cutting method | Flame or dry type plasma or fine plasma | |
Cutting Samples:
Our Service:
We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise.
