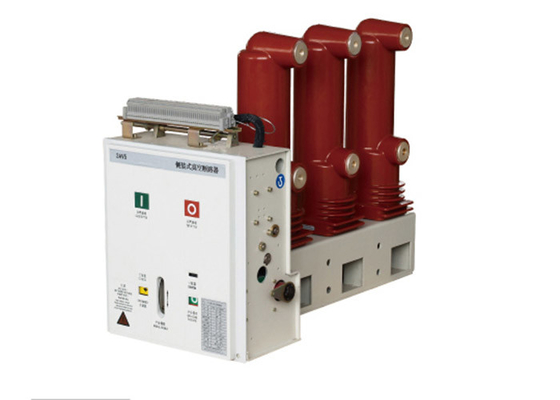

3AV5-12/1250-31.5 Indoor High-voltage Vacuum Circuit Breaker

Name: Three Phase Indoor Vacuum Circuit Breaker High Voltage Side Mounted AC 50HZ 12KV 3150A
Brand: METALWORK MACHINERY (WUXI) CO.LTD
SKU: 3AV5-12
Availability: InStock

3AV5 circuit breaker series is indoor high-voltage switchgear, suitable for rated voltage 12 kV, frequency 50 Hz three-phase power system, as protection and control appliances, with high reliability, easy operation, simple maintenance and other characteristics. The circuit breaker can be used for middle-type switchgear and fixed switchgear as well as oil-free transformation. Because of the special advantages of vacuum circuit breaker, it is especially suitable for frequent operation requiring rated current, or many times to break the short-circuit current. The 3AV5 vacuum circuit breaker has three installation modes: fixed type, extraction type and side mounted. For special requirements, please contact the manufacturer.

Three Phase Indoor Vacuum Circuit Breaker High Voltage Side Mounted AC 50HZ 12KV 3150A 0

Technical Parameters:

Items	Unit	Date
Rated voltage	KV	12
Rated impulse withstand voltage		75
Rated short-time power frequency withstand voltage (1min)		42
Rated frequency	Hz	50~60
Rated short-circuit breaking current	KA	20	25	31.5	40
Rated current	A	630 1000 1250	630 1000 1250 1600	1250 1600 2000 2500	1600 2000 2500 3150 4000
Rated short-time withstand current	KA	20	25	31.5	40
Rated peak tolerable current		50	63	80	100
Rated short-circuit making current (peak value)		50	63	80	100
Secondary circuit power frequency withstand voltage (1min)	V	2000
Rated operation sequence		O－0.3S－CO－180S－CO O－180S－CO－180S－CO (at 40KA)
Rated single/back-to-back capacitance bank breaking current Set breaking current	A	630/400 (40KA 800/400)
Rated short-circuit breaking current DC flow percentage		≤35%
Opening time (rated voltage)	ms	20-50
Closing time (rated voltage)	ms	30-70
Mechanical life	times	20000
Rated short-circuit breaking current breaking times	times	50 (40KA 30)
Allowable wear accumulate thickness of moving and static contacts	mm	3
Rated closing operating voltage	v	AC110/220 DC110/220
Rated opening operating voltage	v	AC110/220 DC110/220
Rated voltage of energy storage motor	v	AC110/220 DC110/220
Rated power of energy storage motor	w	80
Contact opening distance	mm	11±1
Contact stroke	mm	3.5±1
Contact bounce time	ms	≤2 (40KA ≤3)
Three - phase opening and closing heterogeneity	ms	≤2
Average closing speed *1	m/s	0.9-1.3
Average closing speed*2	m/s	0.4-0.8
Main circuit resistance	μΩ	≤50 (630A) ≤45 (1250A) ≤35 (1600-2000A) ≤25 (above 2500A)
