Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC3-1500X3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
CNC System: Hypertherm, Fangling, Etc. Height Controller: Hongyuda, Hypertherm, Etc.
Nesting Software: FastCAM, InteGNPS, Etc. Effective Cutting Size: 1500X3000mm
Plasma Cutting Thickess: 25mm Cutting Mode: Plasma Cutting
High Light:

cnc metal cutting machine

,

plasma metal cutting machine

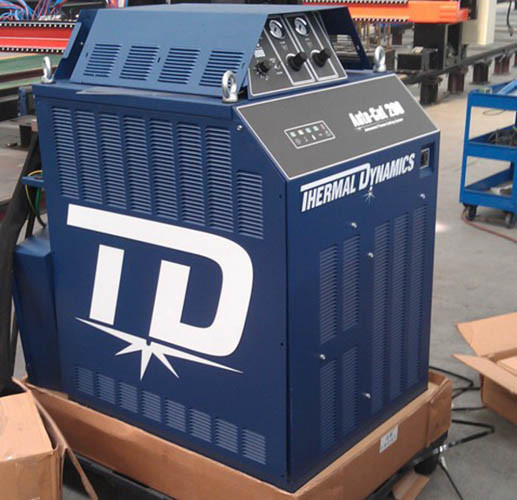

Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source



High performance and high efficiency CNC cutting machine. Cantilever structural design, good rididity, and light weight. Possessing all functions of gantry NC, and convenient in operation. Adopting servo motor and bilateral drive, with stable running and high cutting quality. Such main parts as servo motor, Planetary reducer, and electromagnetic values are imported.



Application Scope and Material:



CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.



Thus is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries .

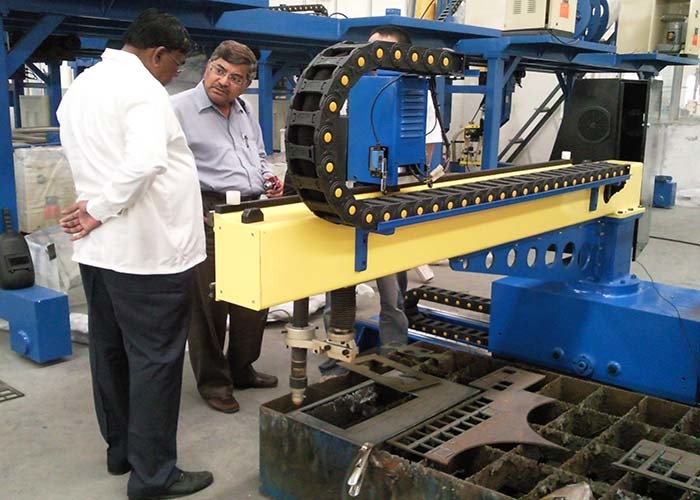

Machine Structure:



Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source 0

Effective cutting width: 1500mm~2500mm

Effective cutting length: 3000mm~6000mm

Linear rail adopted to assure high cutting efficiency

Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source 1

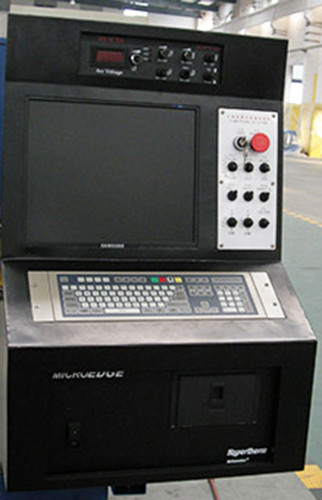

USA MicroEDGE system

USA EDGEII system

China FL-2500 system

China Adtech HC6500 system

Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source 2 Japan Pansonic Servo Motors
Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source 3 Japan Shimpo Reducer

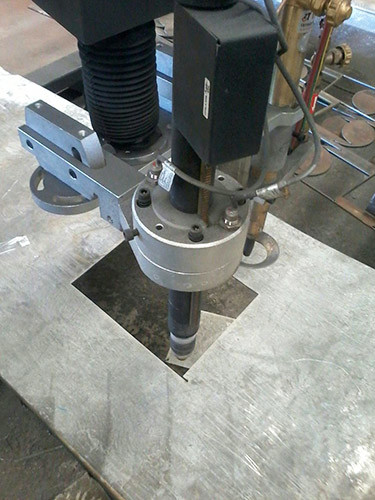

Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source 4 Plasma cutting torch



Features:

1. Cantilever structure, which is easy for moving and packing. The X axis adopts liner rail to ensure running speed and accuracy.

2. Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.

3. Power supply adjusts current according to different thickness of the material to ensure cutting materials without burn.

4. Processed Materials of small and neat kerf, without secondary processing.

5. Advanced control system, large capacity storing function, convenient to read and process.

6. Applicable industry: advertising industry, arts and handicrafts cutting, metal plate cutting.



Technical Parameters:



Model CNC3-1500
Effective cutting width 1500mm
Effective cutting length 3000-6000mm
Cutting thickness Flame: 6-150mm; Plasma determined by selected cutting power
Cutting speed 50-1000mm/min
Returning speed 50-3000mm/min
Cutting roughness Ra12.5mm
Cutting precision ±0.5mm/m



Cutting Samples:

Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma Source 5



Our Service:



Company is engaged in the plasma cutting production and welding products for many years. With advanced production equipment, strong technical force, complete quality management system, focus on all kinds of plasma cutting and welding machine.



1. All parts are made of brand products, and the quality is stable and reliable.
2. Standard packaging, separate containers to ensure transportation safety.
3. Own factory, prompt delivery, product quality guaranteed.
4. Staff experience is very rich, good after-sales service effect.
5. All equipment through international certification, cost-effective.
