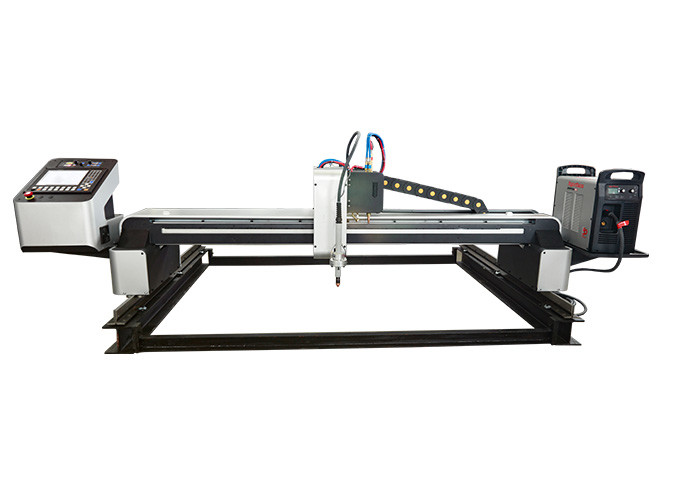

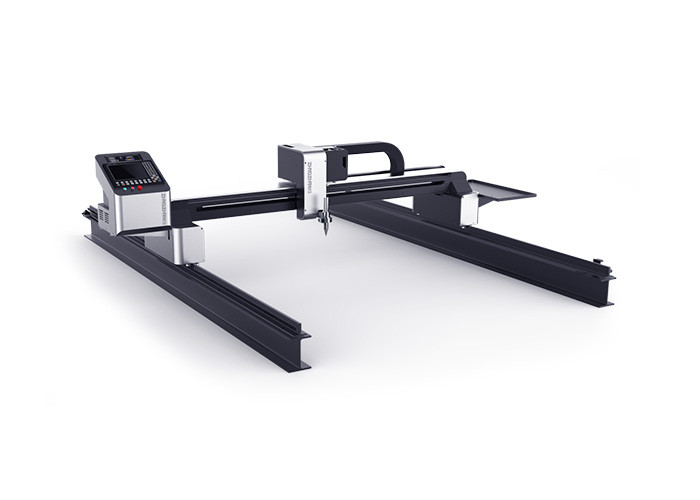

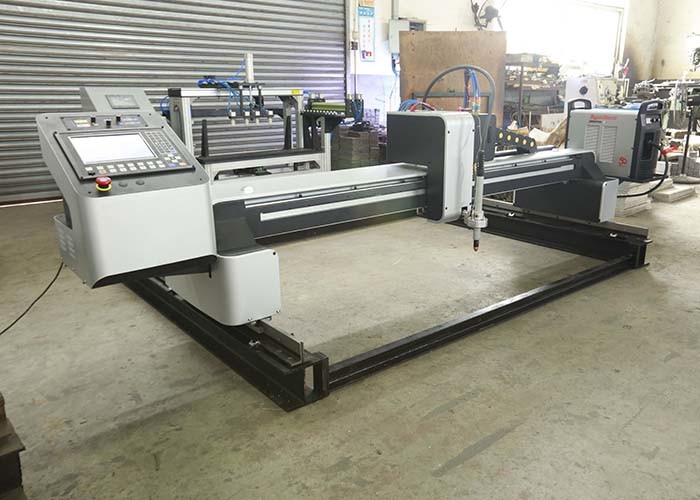

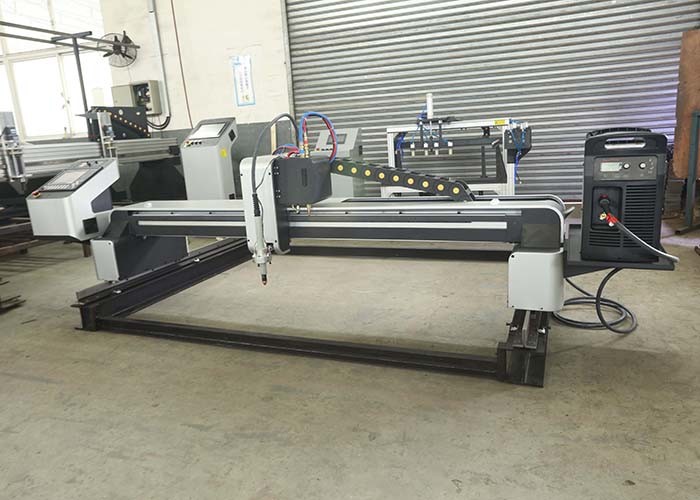

Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate

Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate

    • Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate
    • Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate
    • Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate
    • Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate
  • Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: CNC2-2016

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 1 x 20' GP
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Controller Software: FLSK Driving Way: Dual Drive
    Motor And Cables: Step Motor Shield Cables X And Y Axis Gas And Cable Moving: Light Duty Industrial Cable Chain
    Nesting Software: FASTCAM STANDARD VERTION Cutting Mode: Flame/Plasma/Both
    Warranty: 12 Month
    High Light:

    cnc steel cutting machine

    ,

    plasma metal cutting machine



    Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate



    Features:

    1. Each leg of machine using two pieces of 14mm Q345B steel processed. That keep the machine good supporting and stability when machine fast move forward and backward in high precision.
    2. The beam made by aluminum alloy structure, that for keeping high precision (That is much better precision than some other supplier’s beam, which is installed the rack and rail way on square pipe only). And it is easy for machine function update or modification in the future.
    3. Rear part of the beam is used 45# steel folded to strengthen the machine’s structure. That make machine with two beam structure, and reasonable used both aluminum alloy and steel’s each advantage to provide machine extreme stability, and flexibility performance.
    4. Machine standard with 10 inch color controller, and new plasma THC. With 15kg/m fine grinding guide, and dual used plasma and flame function.



    Machine Data:

    Effective cutting width: 2000mm (Beam length 2500mm)
    Effective cutting length: 17000mm (Rail way length16000mm)
    Plasma cutting capacity: Depend on plasma source
    Machine moving speed: 0-6000mm/min
    CNC Tool quantity and style:

    1 tool with plasma THC and flame device (with flame automatic ignition)

    Tool lifting distance: ≤150mm
    Whole machine accuracy standard: JB/T5102-1999
    Whole machine drawing accuracy: ±0.2mm

    Whole machine drawing accuracy(according to right side drawing)Size1000╳1000mm

    Drawing speed 500-800mm/min

    Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate 0

    Speed accuracy: ±5%
    Input power:

    Single phase AC220V 1500W

    + 3 phase AC 380 for plasma generator

    working precision: ±0.2mm/meter
    Flame (Gas) cutting thickness:

    Piercing Capacity: 5-60mm

    Edge Start: 5-120m



    FastCAM Software Introduction:

    FastCAM have 30-years R&D history and famous brand in the world cutting & welding industry. FastCAM software are professional in drawing, nesting and programming for Gas, Plasma, Laser and Water-jet NC cutting machine. It is easy to learn and use without PC & AutoCAD basis. FastCAM supply multilingual software, technical support and training in America, Europe, Asia Pacific and China. FastCAM promote new technology to maximize productivity, improve quality and reduce cost.



    CNC Controller Introduction:

    1. System introduction:
    This system is a two-axis digital controller for cutting machine developed by Shanghai Jiaotong University. It is suitable for the oxygen gas and plasma cutting processing industries. All operations have menus and graphical prompts, complete functions, easy to operate, easy to use. The system uses high-speed ARM9 and DSP control structure to make the cutting process more stable and reliable.

    2. System configuration:
    1) Display: 10.4 inch 800*600 high resolution LCD screen, 260,000 color LCD
    2) CPU: Industrial grade ARM9 chip
    3) File storage: electronic storage disk 1G
    4) Memory: 256M
    5) External interface: USB
    6) Keyboard: PCB foil keyboard, PS2 interface. Import Omron button
    7) Chassis: All steel structure is completely shielded, anti-electromagnetic radiation, anti-interference, anti-static



    Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate 1



    Light Duty CNC Plasma Cutting Machine High Definition For Cutting Metal Plate 2
