High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise

High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise

    • High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise
    • High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise
    • High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise
    • High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise
  • High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: CNC2-1530

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 1 x 20' GP
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Plasma Source: USA Hypertherm Or Chinese LGK Series Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction Works
    Cuting Mode: Optional Plasma And Flame Reducer: Japan Shimpo
    Motor: Japan Panasonic Warranty: 1 Year
    High Light:

    cnc metal cutting machine

    ,

    plasma metal cutting machine



    High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise





    Product description:



    1) Top-class technology


    2) Advanced configuration



    3) High precision


    4) Stable performance



    CNC Table Type Plasma Flame Cutting Machine is a high-efficiency, high-precision and high-reliability cutting device integrating computer control, precision mechanical transmission and thermal cutting. The good man-machine interface makes the operation more convenient and simple, and can cut quickly and accurately. A variety of complex shapes of plates, especially suitable for medium and thin non-ferrous metal sheets, stainless steel and carbon steel sheet automatic cutting, it adopts integrated modular design, quick installation and easy to move.





    Technical performance:



    Cutting Shape: Any shapes
    Effective Cutting Width (X axis): 1500mm
    Effective Cutting Length (Y axis):
    3000mm
    Cutting Mode: Plasma/Flame
    Cutting Speed: 8000mm/min
    Plasma Cutting Thickness:
    Depends on plasma power source capacity
    Power Supply Voltage/Frequency: 220V 50Hz





    Advantages:



    1) The overall structure of vertical and horizontal rails cutting table, etc. into one, easy to stabilize the overall movement.


    2) Easto operate, plug and play.


    3) With sheet metal nesting software, CAD software, cutting software nesting software three.


    4) Stable operation, stable shape,nice.



    5) High precision, good effect.



    6) Can cut carbon steel, stainless steel, copper, aluminum and other non-ferrous metals.



    7) Simple operation & maintenance and so on.





    Functions:



    1) Graphic display function.


    2) English interface and other 5 languages.


    3) Excellent graph library ,48 graphic.


    4) Steel plate correction function.


    5) Kerf can be automatically compensated.


    6) Cutting can continue when power fails.


    7) Continuous return can be done.


    8) Positioning and cutting can be done randomly.


    9) Off-line cutting can be done.


    10) Online upgrading function.





    Product application:



    The production of CNC flame, plasma cutting machine, is specially used for sheet metal blanking of nc equipment. Can realize to all kinds of metal materials Under the press any graphic material cutting. After cutting machine is cutting surface usually don't need to do a surface processing. Has a high degree of automation, easy to use, high precision, high reliability, low price and maintenance is very easy to operate, and other advantages, is widely used in automobiles, Ship, space of various kinds of machinery manufacturing for sheet metal blanking cutting.

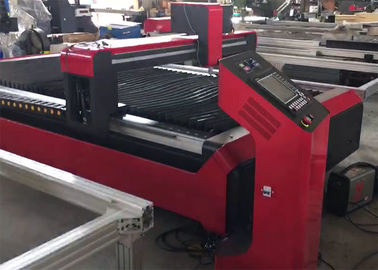

    High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise 0





    Photos of the cutting jobs:

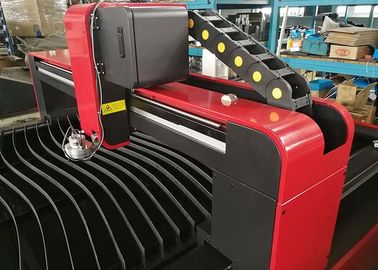

    High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise 1





    Package:

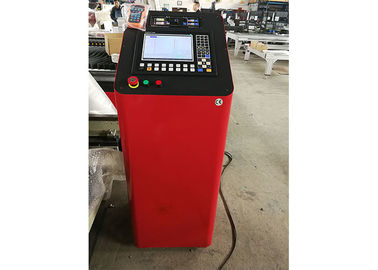

    High Precision CNC Plasma Cutting Machine Double Drive Table Type Low Noise 2





    Company Profile:



    Since established, Wuxi Metalwork Machinery Co.,Ltd. has focused on introducing and cultivating high-tech talents and takes it as development strategy. At present, many professionals have been brought together who specialize in researching and developing of CNC welding and cutting equipments. Technical strength is always cherished as core competitiveness of our company.


    With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Mexico, Spain, France, UAE, Singapore, Philippines, etc. During establishing the national brand of Metalwork, we always hold the responsibility of culture communication between china and the world.
