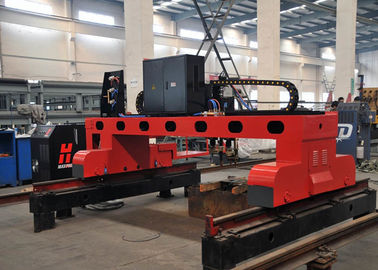

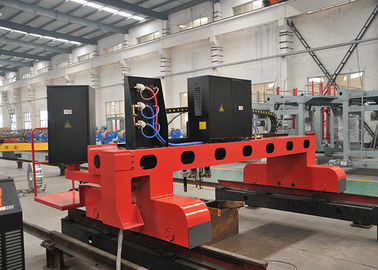

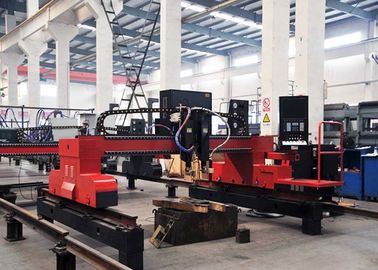

Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch

Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch

    • Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch
    • Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch
    • Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch
    • Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch
  • Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: CNC-3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: 1 x 20' GP
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    CNC System: Hypertherm, Fangling, Etc. Plasma Source: Hypertherm, Victor, Etc.
    Height Controller: Hongyuda, Hypertherm, Etc. Nesting Software: FastCAM, InteGNPS, Etc.
    Torch: 1 Gas Torch/1 Plasma Torch Motor: Panasonic
    Reducer: Shimpo, Neugart
    High Light:

    cnc steel cutting machine

    ,

    plasma metal cutting machine



    Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch



    Plasma gantry cutting machine is designed to meet the needs of job shops and manufacturers of all sizes and delivers high-performance machine for quality production cutting.



    This CNC Flame Plasma cutter machine can cut mild steel with Oxygen fuel gas cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurated as you required.



    Thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.





    Product Features



    (1) Tailored track acquires high-intensity, high-speed and high-precision features.


    (2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.


    (3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.


    (4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.


    (5) With two cutting modes: Flame Cutting & Plasma Cutting.


    (6) Chinese, English, French, and Portuguese are ready to use.


    (7) Can automatically memorize and restore when power is off.


    (8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
    according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,

    protect the torch form damage and prolong life span of the nozzles.


    (9) With status indication device.


    (10) With positioning functions of protection cover, proximity switch and dual-speed.


    (11) Compatibility of the domestic plasma and foreign-brand plasma.





    Technical Parameters:



    Model CNC3000 CNC3500 CNC4000 CNC5000 CNC6000 CNC7000 CNC8000
    Effective Cutting Width (mm) 2200 2700 3200 4200 5200 6200 7200
    Track Width (mm) 3000 3500 4000 5000 6000 7000 8000
    Effective Cutting Length (m) 2m less than track length
    Cutting Thickness(mm) Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma).
    Basic components
    Cutting Mode Plasma and Oxygen-fuel / flame
    Drive Mode Servo motor, Dual-side
    Cutting Torch Number Customization
    Driving Motor Panasonic / Yaskawa
    CNC Controller Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB
    Available Plasma Power Hypertherm, Kjellberg, Thermal Dynamics, ESAB
    Programming software Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional
    Power voltage 3×380V±10% 50Hz / according to user's local condition
    Operation language Multi language,Basic: English...











































































    Cutting Samples:



    Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1 Plasma Torch 0
