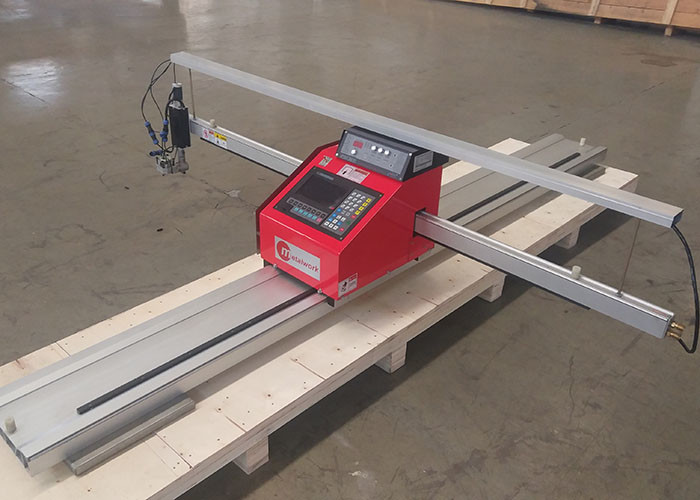

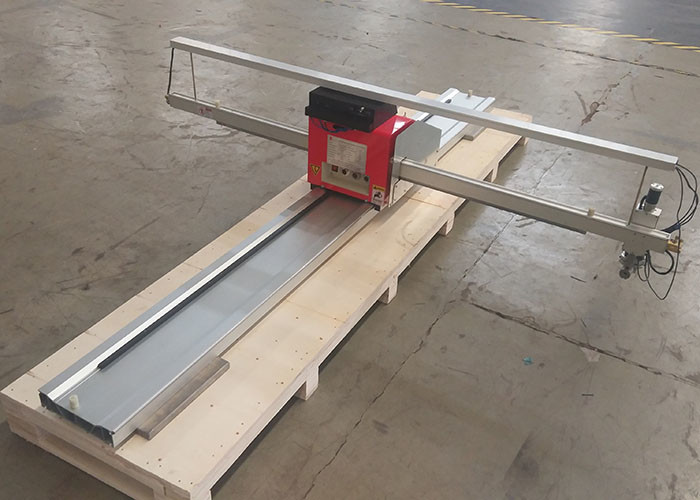

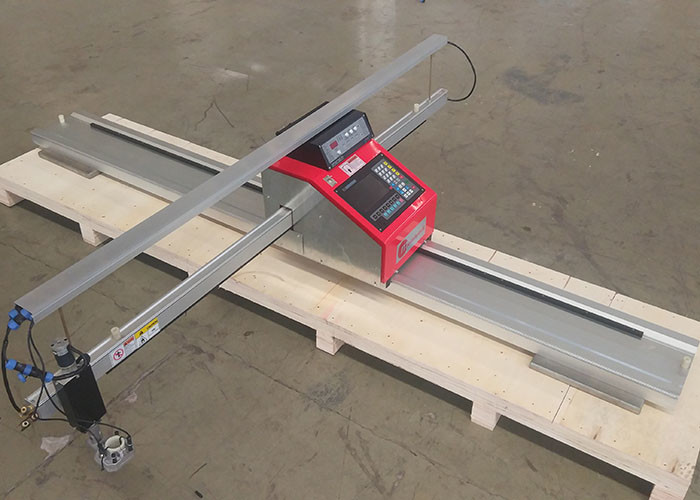

1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate

1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate

    • 1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate
    • 1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate
    • 1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate
    • 1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate
  • 1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate

    Product Details:

    Place of Origin: China
    Brand Name: Metalwork
    Certification: CE, ISO, CCC
    Model Number: CNC1-1560P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Plywood box
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Plasma Source: USA Hypertherm Or China Huayuan CNC System: Shanghai Fangling-2100B
    Key Selling Points: High Productivity After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Warranty: 1 Year,12months Weight: 80KG
    Processing Materials: Iron, Steel Aluminum Sheets, Galvanized Sheets, Titanium Plates, Other Metal
    High Light:

    cnc steel cutting machine

    ,

    plasma metal cutting machine

    1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate



    Technical Specification:



    Effective Cutting Range: 1500X6000mm
    Max. Return Speed: 3000mm/min
    Flame Cutting Thickness: 6~150mm
    Plasma Cutting Thickness: Depend on Plasma
    Power Supply Voltage: 220V
    Frequency: 50Hz
    Rated Power: 0.24KW
    Oxy Max Pressure: 0.98Mpa
    Gas Max Pressure: 0.14Mpa





    Product description:

    Plasma cutting machines are machines that process metal materials using plasma cutting technology.

    A process for melting (and evaporating) the metal at the notch of the workpiece using the heat of the high temperature plasma arc and removing the molten metal by the momentum of the high speed plasma to form the notch.



    Product advantages:

    1) The frame adopts all-welded structure, strong and reasonable, easy to operate and durable.

    2) The cutting speed is fast, the precision is high, the cutting mouth is small, neat, there is no dregs phenomenon.

    3) High CNC system configuration, automatic arc ignition, stable performance.

    4) Wide cutting area, can cut all metal plates.

    5) Can cut pipe straight line.



    1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate 0



    Product details:

    1. Plasma torch height controller:

    It has simple and convenient parameter which can be set, change operation parameter flexibly, suit complex working conditions, THC can automatic promote torch height, and height which we promote can set casually.

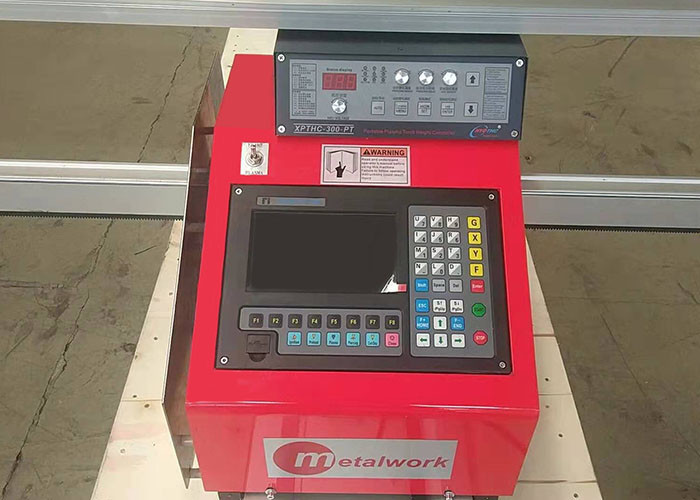

    2. Control system panel:

    High configuration Fangling CNC control system with Automaticcapaci-tance-height controller and automatic arc-height controller. The control system uses the U-disk exchange processing document easy to operate.

    3. Longitudinal guide:

    The transmisson part adopts the precision gear rack. The groove design avoids affecting the cutting accuracy.

    4. Plasma torch:

    Accurate cutting, high precision. Increase the upper and lower limits to avoid operating damage to the motor.

    5. Power source:

    Hypertherm or Huayuan plasma power.



    1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate 1



    Product application:

    1) Advertising industry:

    Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.

    2) Mold industry:

    Engraving metal molds made of copper, aluminum, iron and so on.

    3) Metal industry:

    For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.



    1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe And Plate 2



    FAQ:

    1. Where is your company located? How can I visit there?

        Our company is located in Wuxi, JIangsu. We will meet you at airport or train station. Warmly welcome to visit us!

    2. What's the quality of your products?
        We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours.Our factory has gained CE, ISO9001 authentication.

    3. What shall we do if don't know how to operate your machine after bought from you?
        We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.

    4. What to do if the machine has a problem?
        12 hours timely response of mail and phone calls.In 12 months, if parts fail, we offer free replacement (except customer reasons).
