|CNC System:||Hypertherm, Fangling, Etc.||Plasma Source:||Hypertherm, Victor, Etc.|
|Height Controller:||Hongyuda, Hypertherm, Etc.||Nesting Software:||FastCAM, InteGNPS, Etc.|
|Color:||Red+black, Blue+yellow Or Customized||Warranty:||1 Year|
cnc steel cutting machine,
plasma metal cutting machine

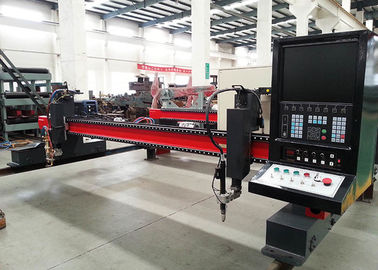

Industrial Gantry Type CNC Plasma Flame Metal Cutting Machine with Panasonic Motor

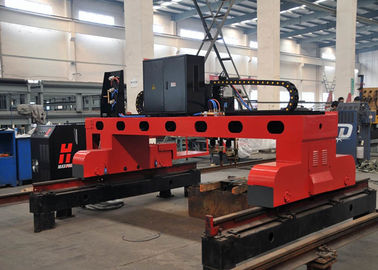

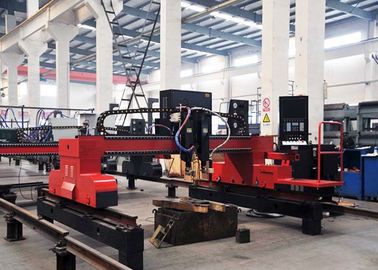

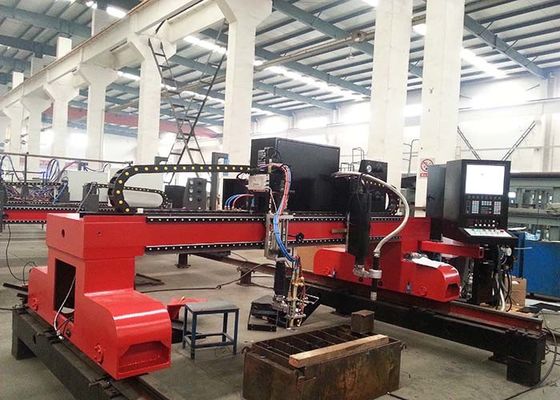

Heavy-duty Gantry frame structure, cross beam adopts box-type welding structure, no distortion, high-efficiency bilateral drive, compact structure, overall tempering, fully eliminate welding stress, thick and atmospheric shape, stable and reliable performance, is currently the most standard and most general CNC Cutting Machine in the cutting machine industry.
Lattices are driven bilaterally, with two-axis straight-line guide rail, longitudinal rail length can be customized, single flame or single plasma cutting mode, with automatic ignition; flame and plasma dual-purpose cutting mode can also be added. It can be configured to lengthen the guide rail and widen the span of the cross beam according to user's requirements. It can also be configured to use multiple torches or grooves for cutting purposes according to user's requirements.
Application Scope and Material:
1. Hardly oxidized metal
2. Easily oxidized
3. Stainless steel
4. Brass, aluminum, and zinc
|Effective Cutting Width (mm)||2200||2700||3200||4200||5200||6200||7200|
|Track Width (mm)||3000||3500||4000||5000||6000||7000||8000|
|Effective Cutting Length (m)||2m less than track length|
|Cutting Thickness(mm)||Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma).|
|Cutting Mode||Plasma and Oxygen-fuel / flame|
|Drive Mode||Servo motor, Dual-side|
|Cutting Torch Number||Customization|
|Driving Motor||Panasonic / Yaskawa|
|CNC Controller||Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB|
|Available Plasma Power||Hypertherm, Kjellberg, Thermal Dynamics, ESAB|
|Programming software||Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional|
|Power voltage||3×380V±10% 50Hz / according to user's local condition|
|Operation language||Multi language,Basic: English...|
1. Rack structure
The cross beam is a non-rectangular tube structure of box steel structure. After welding, it is annealed entirely to eliminate the internal stress so that it will not deform in long-term use. The stable frame structure makes the cutting precision higher and the cutting speed faster.
Horizontal guideway adopts domestic or imported double axle core linear guideway with high precision and good guidance.
Longitudinal guide rail with grinding surface made of special metal has high mechanical accuracy and wear resistance.
