High Speed CNC Laser Cutting Machine Tube Plate Special With Water Cooling Mode

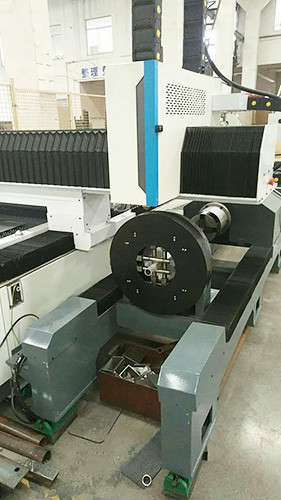

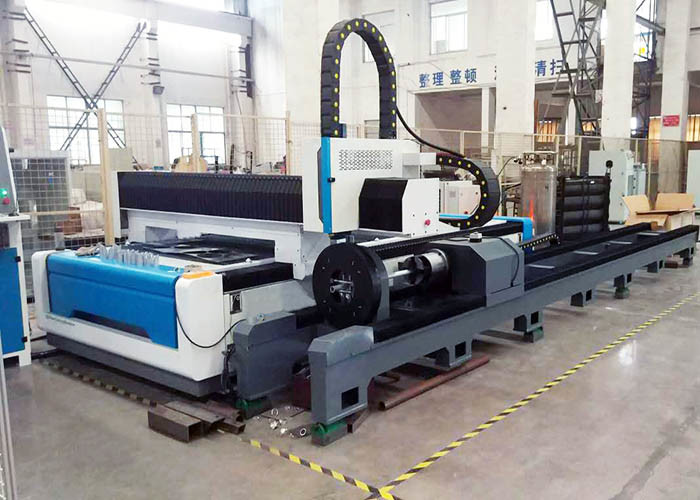

FL-3015-W-P Tube and Plate Fiber Laser Cutting Machine

Welcome to the next generation of laser machinery: the Laser Tube & Plate Integrated Machine. This is not merely an upgrade—it is a fundamental re-engineering of the laser system architecture. We have moved beyond the conventional modular assembly to forge the laser source, the core structural bed, and the motion framework into a singular, indomitable unit.

The core innovation lies in its foundational high-strength, precision-ground steel plate. This is more than a base; it is the machine's backbone, seamlessly integrated with the laser tube. This monolithic design eradicates the inherent alignment drift and micro-vibrations found in traditional bolt-together frames. The result is a level of inherent stability and lasting precision previously unattainable in standard machines.

Engineered for the uncompromising demands of modern industry, this platform delivers unwavering performance for high-speed cutting, deep engraving, and precision marking. It excels particularly in processing plate materials, offering superior edge quality and dimensional accuracy that holds constant over years of rigorous service. This machine embodies a perfect synergy of power, rigidity, and intelligent control, setting a new benchmark for reliability and total cost of ownership in laser fabrication.

Application Scope and Material:

1. Mild steel

2. Stainless steel

3. Aluminum

4. Copper

5. Galvanized sheet

Product Structure:

Design Philosophy & Structural Advantages

• Monolithic Foundation Architecture: We have redefined machine construction by fusing the laser resonator and a massive, stress-relieved steel bed plate into one continuous structure. This eliminates all interface joints between critical components, creating a vibration-damped foundation that is fundamentally more stable than any assembled alternative.

• Inherent Thermal & Mechanical Stability: The integrated plate acts as a massive heat sink and structural damper. It naturally resists thermal distortion from the laser source and environmental changes, while its sheer mass and rigidity absorb machining vibrations. This guarantees that the critical distance between the laser head and workpiece remains constant, ensuring repeatable accuracy shift after shift.

• Precision from the Ground Up: The machine's coordinate system is built upon the absolute flatness and unwavering geometry of the integrated bed plate. This means the laser's path is referenced to a permanent, non-deforming datum, eliminating cumulative errors that can arise from multi-component frame alignment.

Performance & Operational Excellence

• Sustained Peak Performance: The unparalleled rigidity allows the machine to utilize the full potential of high-power laser sources (from 1kW to multi-kW) without compromise. It enables aggressive cutting parameters on thick materials and allows for maximum travel speeds on thin sheets—all while maintaining exceptional cut quality and protecting the motion system from wear.

• Plug-and-Play Industrial Reliability: Delivered as a pre-aligned, factory-optimized unit, installation is dramatically simplified. The reduction in mechanical interfaces translates directly to fewer potential failure points, higher machine uptime, and lower long-term maintenance costs. It is engineered for 24/7 operation in demanding workshop environments.

• Future-Proof Platform: The robust integrated platform is designed to accommodate future upgrades in laser power, cutting heads, and automation accessories (such as loading systems) without requiring fundamental structural changes. This protects your capital investment for the long term.

User-Centric & Application-Focused Design

• Optimized for Plate & Sheet Dominant Workflows: From small format precision parts to full 4x8 meter sheets, the machine's design prioritizes flat material processing. The solid bed provides excellent support, minimizing sheet sag and ensuring consistent focus height across the entire working area.

• Simplified Ownership Experience: From a single-source responsibility for the core system to streamlined calibration and servicing, the integrated design reduces operational complexity. Users benefit from consistent performance without the need for complex joint maintenance or realignment.

• A Foundation for Quality: This machine is not just a tool; it is a foundation for manufacturing excellence. It empowers businesses to produce parts with higher consistency, tighter tolerances, and superior edge quality, enhancing their competitive edge in markets where precision is paramount.

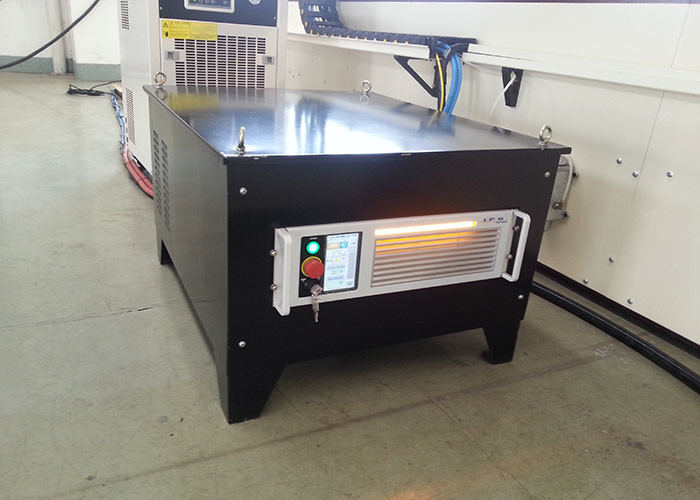

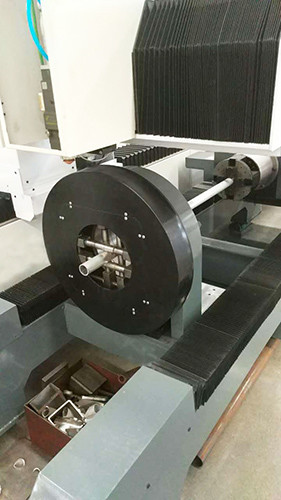

Main Components:

Technical Parameters:

Cutting Samples:
