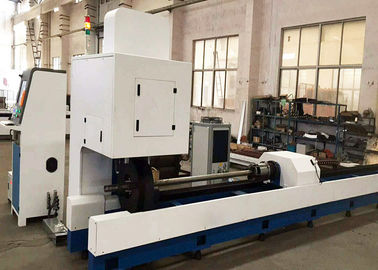

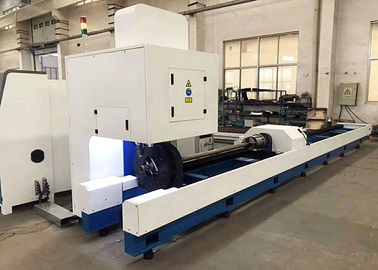

1000W Tube CNC Pipe Cutting Machine With Raycus IPG Fiber Laser Power Water Cooling

FL-30-1000W Tube Fiber Laser Cutting Machine

With high quality fiber laser generator, high precision "HIWIN" rack ansmission and advanced automation NC system, this product is getting high and new technology in one which by laser cutting and high precision machinery CNC technology. Getting high speed, high precision, high efficiency and low cost together perfectly, this product can be the best choice for bulk metal materials cutting job.

Application Scope and Material:

1. Mild steel

2. Stainless steel

3. Aluminum

4. Copper

5. Galvanized sheet

Product Structure:

Features:

•  500w, 750w, 1000w, 2000w 3000w IPG/RAYCUS fiber laser optional

•  Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc

•  With a specialized CAD / CAM automatic programming software, automatic nesting software to maximizing saving raw materials.

•  Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm

•  Japanese servo motor, with high speed and precision

Functions:

•  Can cut a plurality of cylinders with different directions, different diameters of intersecting line hole, meet the vertical axis and axis condition branch director and no eccentric.

•  Can cut cylinder intersection line at the end of branch pipe, meet the pipe axis and the eccentric and no eccentric director axis intersecting condition.Can cut inclined truncation surface at the end of tubes.

•  Can cut intersection line of branch pipe, which is intersected with circular main pipe.

•  Can cut off square pipes and do 360 degree turning cutting.

•  Can cut square holes, waist type holes on tubes.

•  Can truncate a various of steel pipes.

•  Can do various graphic cut on square tube, oval tube, U tube and rectangular tube etc.

Main Components:

Technical Parameters:

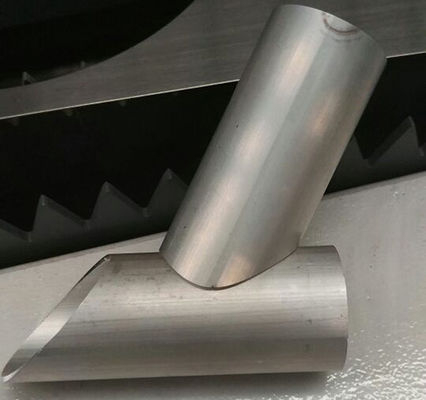

Cutting Samples:
