Program Intersecting CNC Plasma Flame Metal Pipe Profile Cutting Machine with USA Hypertherm

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC4-1060P

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywood box

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

pipe plasma cutting machine

,

plasma tube cutting machine

CNC System:
Shanghai Fangling
Input Voltage:
Single Phase AC 220V
Input Power:
Approximately 600W
Cutting Speed:
60-2000mm/min
Oxygen Pressure:
Oxygen Gas Max 0.7 Mpa
Plasma Power:
USA Hypertherm 45A
After-sales Service:
Overseas Service Center Available
CNC System:
Shanghai Fangling
Input Voltage:
Single Phase AC 220V
Input Power:
Approximately 600W
Cutting Speed:
60-2000mm/min
Oxygen Pressure:
Oxygen Gas Max 0.7 Mpa
Plasma Power:
USA Hypertherm 45A
After-sales Service:
Overseas Service Center Available
Program Intersecting CNC Plasma Flame Metal Pipe Profile Cutting Machine with USA Hypertherm





Program Intersecting CNC Plasma Flame Metal Pipe Profile Cutting Machine with USA Hypertherm​





Introduction of machine:

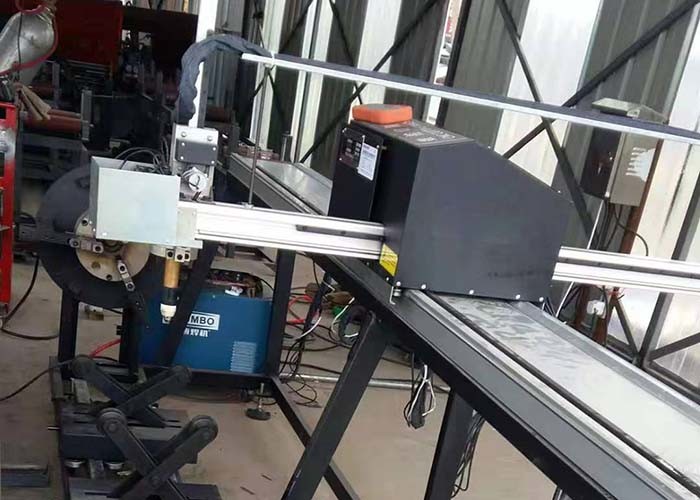

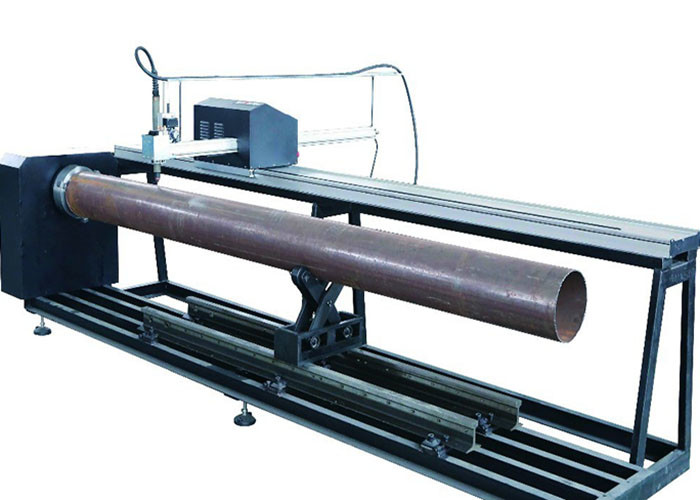

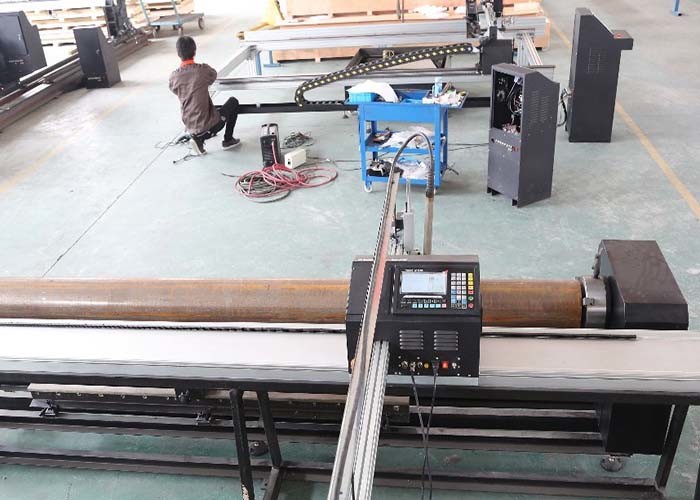

Pipe Cutting CNC4-1060P is a updated model of the portable CNC cutting machine which realize both CNC cutting and pipe cutting purposes. Software Control System can control plate cutting and intersection cutting with whole set of CNC cutting system. It enjoys the features of convenient installation, easy handle, working stability and elegant appearance.





Features:

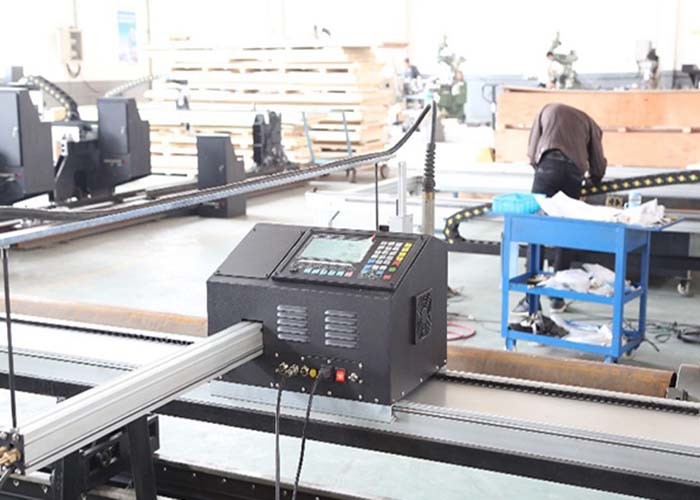

1) Equipped with “Three-Axis, Two-Axis Linkage Control” intersection NC system which intellectual property is owned by Metalwork Machinery (Wuxi) Co., Ltd. and the 7 inch color LCD screen, fit for pipe cutting without beveling.

2) Standard version not only can both flame cutting and plasma cutting, but also can cut both pipe and steel plate.

3) Using AC 3 phase high voltage step motor drive technology, the motors get more power but less noisy.

4) Can make intersecting pipehole cutting in different directions and different diameters. Can make branch pipe and main pipe vertical or cross in some angle.

5) Can cut oblique section of the pipe.

6) Can cut branch intersecting pipe's end socket for main pipe.

7) Can cut square and slotted hole and all shapes on the pipe.

8) Can cut off the pipe.

9) Can cut dual bending ends for bending of the pipe after welding.





Technical Parameter:



CNC Intersecting Tube Cutter with Technical Program

Flame (Gas) Cutting Thickness:



Piercing Capacity : 5-60mm

Edge Start :5-120mm

Plasma Cutting Thickness:

Piercing Cutting Capacity: 12mm

Edge Start Capacity: 25mm

Track Length:

6500mm (effective cutting length Y axis, can be customized for extending cutting length)

Pipe Diameter: 60-260
Pipe Rotate Speed: 2000mm/min
Ovality of Pipe:

≤2%

Max.Weight of Pipe:

≤200kg

Size of Chuck:

250mm

Cutting Table:

Unjointed with the main machine.

Cutting Table for Pipe will be provided.

Cutting Table for Steel Plate is optional.







Main documents:

1) User’s instruction, operation manual, electrical principle sketch 1 set.

2) USB for the copy of the software 1 piece.

3) Tool Kit 1 set.

4) Product Certificate 1 piece.





Woking pieces:



Program Intersecting CNC Plasma Flame Metal Pipe Profile Cutting Machine with USA Hypertherm 0





Company and service:

Our company has scientific management idea, adopts advanced technology, and specializes in research and production of CNC cutting machines. Since the company has been established, we insist on high technology. In order to improve our technical level and service level, we have hired several technical personnel, and have established good cooperative relationship with several domestic research organizations.

On the basis of our tent:"Quality-oriented, Honesty-centered, Science management, Harmonious development", we warmly welcome all customers from both home and abroad. Metalwork Machinery will supply you with good service and support your business with might double.





Package:



Program Intersecting CNC Plasma Flame Metal Pipe Profile Cutting Machine with USA Hypertherm 1
