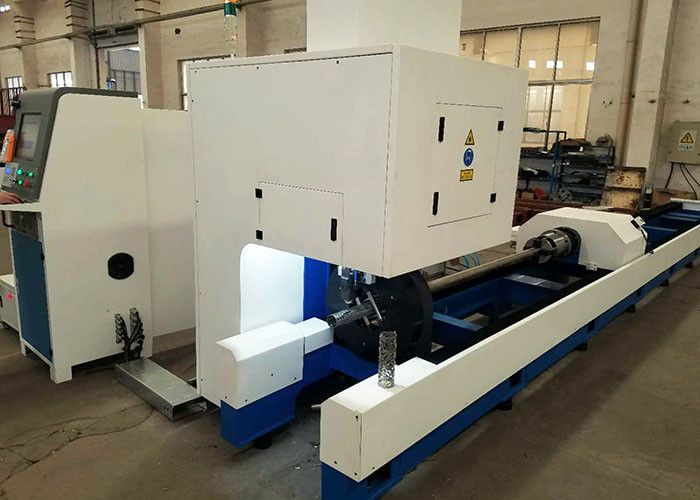

4KW Automatic CNC Pipe Fiber Laser Cutting Machine High Cutting Speed 1070nm Wave

Automatic Stainless Steel Metal Fiber Laser Pipe Tube Cutting Machine

>>Product Introduction:

The FL-T-4000W Fiber Laser Tube Cutting Machine represents the sweet spot in industrial tube processing, combining exceptional cutting power with remarkable operational efficiency. Designed specifically for medium to heavy wall thickness tubes (up to 12mm carbon steel), this system delivers production-grade performance for manufacturing facilities seeking to optimize their tube fabrication workflows. With its robust construction and advanced CypCut Pro control system, the FL-T-4000W bridges the gap between entry-level machines and high-power industrial systems.

This machine excels in processing carbon steel, stainless steel, and aluminum tubes with diameters ranging from 20mm to 300mm, making it ideal for structural components, industrial frames, and mechanical parts. The integration of semi-automatic material handling and intelligent cutting algorithms ensures consistent quality while maximizing throughput for demanding production environments.

>>Industrial-Grade Engineering Architecture:

1. High-Performance Laser System

Powerful Laser Source: 4kW IPG/Raycus fiber laser with superior beam quality (M²<1.08) for clean cuts

Professional Cutting Head: Precitec Pro auto-focus cutting head with capacitive height sensing and collision protection

Multi-gas Capability: Three-gas system (O₂, N₂, Air) with automatic pressure regulation

Advanced Cooling: High-capacity chiller system ensuring stable laser performance during continuous operation

2. Heavy-Duty Mechanical Platform

Industrial-Strength Frame: Reinforced welded steel construction with vibration-dampening features

Precision Motion System: German Rexroth linear guides + Yaskawa servo motors for smooth, accurate movement

Professional Chuck System: Hydraulic self-centering chuck with automatic clamping for tubes Ø20-300mm

Support Configuration: Motorized adjustable rollers with programmable positioning

3. Professional Control Ecosystem

Control Center: CypCut Pro CNC system with 15.6-inch industrial touchscreen

Production Software: TubeMaster Pro with advanced nesting, scheduling, and optimization algorithms

Cloud Connectivity: IoT-enabled monitoring for production tracking and remote diagnostics

Database Management: 3000+ material profiles with automatic parameter optimization

4. Enhanced Material Handling

Semi-Auto Loading: Programmable loading arm with vacuum assist for tube positioning

Automatic Measurement: Laser measurement system for tube diameter and length verification

Smart Debris Management: Conveyor-based scrap removal system

Production Monitoring: Integrated camera system for process verification

>>Application Material:

Fiber Laser Pipe / Tube Cutting Equipment is mainly used for cutting carbon steel, Stainless Steel, Mild Steel Plate, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Pickling Board, Aluminum Zinc plate, Aluminum Alloy, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

>>Applicable Industry:

Fiber Laser Cutting Machines are widely used in manufacturing Sports Equipment, Aviation & Spaceflight parts, Ships, Automobile, Elevator, Subway parts, Electronics, Electrical Appliances, Precision Components, Machinery, Household appliances, Adornment, Advertising, etc. various high precision components processing industries.

>>Technical Parameters:

Cutting Samples:
