Water Cooling 12KW CNC Steel Pipe Cutting Machine Raycus IPG Fiber Laser Power

1 set
MOQ
Negotiable
Price
Water Cooling 12KW CNC Steel Pipe Cutting Machine Raycus IPG Fiber Laser Power
Features Gallery Product Description Request A Quote
Features
Specifications
Effective Cutting Length: ≤15m
Laser Type: Fiber Laser Cutting
Cutting Material: Metal, Steel, Aluminum, Etc.
Cutting Thickness: Max 50mm
Laser Power: 12KW
Cooling Mode: Water Cooling
Color: Blue+yellow, Red+black,or Customized
Warranty: 1 Year
Highlight:

plasma tube cutting machine

,

laser tube cutting equipment
Basic Infomation
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-T-12KW
Payment & Shipping Terms
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Product Description



Water Cooling 12KW CNC Steel Pipe Cutting Machine Raycus IPG Fiber Laser Power



With high quality fiber laser generator, high precision "HIWIN" rack ansmission and advanced automation NC system, this product is getting high and new technology in one which by laser cutting and high precision machinery CNC technology. Getting high speed, high precision, high efficiency and low cost together perfectly, this product can be the best choice for bulk metal materials cutting job.





Application Scope and Material:



1. Mild steel



2. Stainless steel



3. Aluminum



4. Copper



5. Galvanized sheet

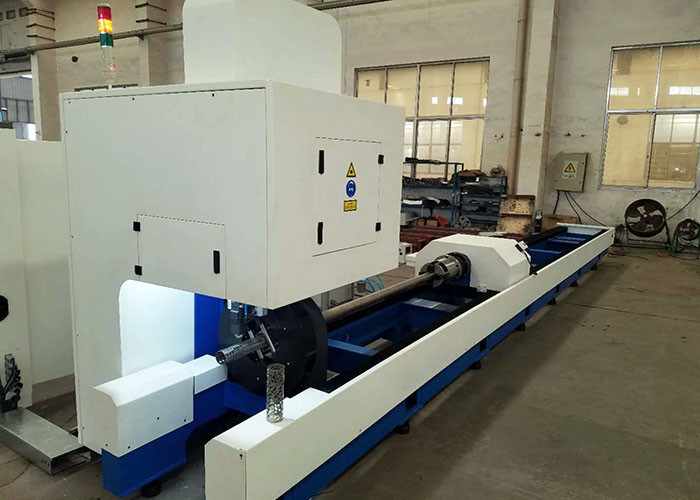

Product Structure:





Water Cooling 12KW CNC Steel Pipe Cutting Machine Raycus IPG Fiber Laser Power 0



Performance Features:



Industrial Heavy-Duty Cutting

Specifically designed for high-volume production of thick-walled structural components with exceptional cutting speed and quality



Full 6-Axis Capability

True 3D cutting with simultaneous 6-axis control for complex bevels, miters, and spatial contours without repositioning



Intelligent Adaptive Control

Real-time monitoring and adjustment of cutting parameters based on material variations and thermal effects



Monolithic Construction

Massive welded steel frame with vibration damping and thermal stability control for micron-level precision



Industry 4.0 Ready

Complete integration capability with MES, ERP, and automated logistics systems for unmanned factory operation

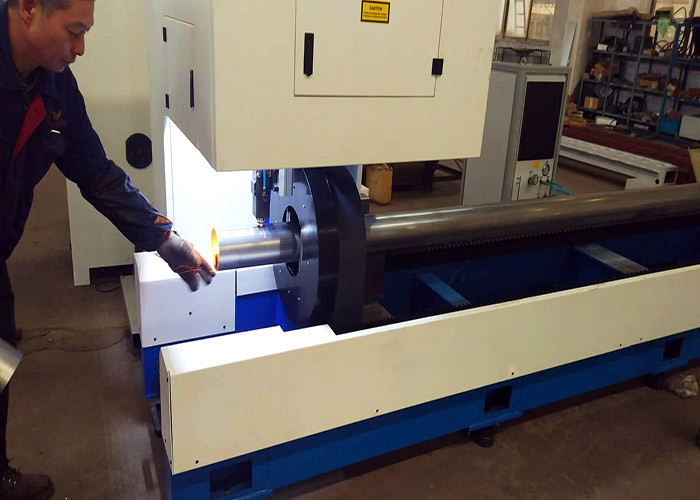

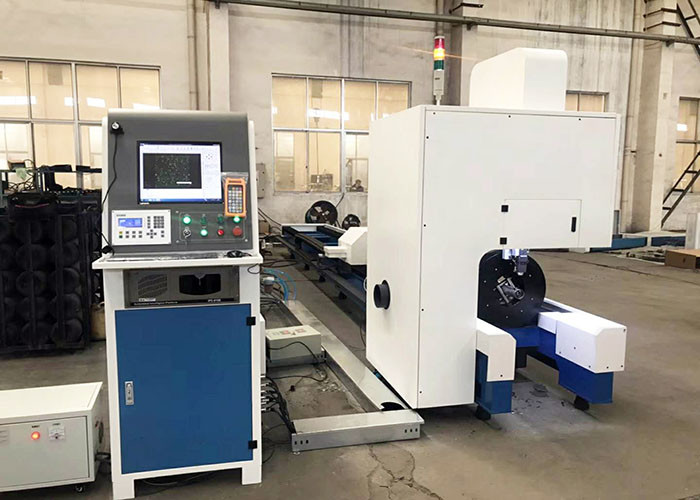

Main Components:





Water Cooling 12KW CNC Steel Pipe Cutting Machine Raycus IPG Fiber Laser Power 1





Technical Parameters:

Parameter Specification
Laser Power 12000W
Laser Wavelength 1070nm
Laser Source Type Fiber Laser
Max. Processing Length ≤20000mm
Round Tube Diameter Range 20-800mm
Square Tube Side Range ≤800mm
Rectangular Tube Section Range ≤800×600mm
Carbon Steel Max. Thickness 50mm
Stainless Steel Max. Thickness 40mm
Aluminum Alloy Max. Thickness 30mm
Kerf Width 0.3-0.5mm
Positioning Accuracy ±0.03mm/m
Repeat Positioning Accuracy ±0.02mm
Spindle Speed Range 0-60 rpm
Chuck Clamping Force 8000-12000N (Hydraulic)
Control System Siemens 840D / Beckhoff TwinCAT / PA8000
Power Supply 380V±10% / 50Hz / 3-Phase, 160A minimum
Power Consumption ≈150 kVA (peak)
Cooling System High-Precision Water Chiller (±0.5°C)
Assist Gas Requirements O₂: 99.95% purity, 20bar; N₂: 99.999% purity, 25bar; Air: 7bar, 1500L/min
CNC Axes 6 Axes (X, Y, Z, C, A, B) with full 3D interpolation
Supported Materials Mild Steel (up to S690), Stainless Steel (200-400 series), Aluminum, Copper, Brass, Alloy Steel
Supported Profiles All standard and custom profiles including H-beams, U-channels, angles, and complex special sections
Standard Features Fully Automated Loading/Unloading, 3D Vision Measuring System, Intelligent Bevel Cutting (0-60°), High-Capacity Dust Extraction (12000m³/h), Automatic Nozzle Changer
Optional Features 3D Scanning for Bent Tubes, RFID Material Tracking, Automated Nozzle Cleaning, Advanced Process Monitoring, Cloud-based Production Management
Machine Dimensions L22000×W4800×H3200mm
Machine Weight 22-28 tons
Floor Space Requirement 25000×6000mm (including material handling area)
Operating Environment 15-30°C, ≤75% RH, Class 10000 clean room recommended
Cutting Speed Range 0.1-20 m/min (adaptive to material and thickness)
Maximum Acceleration X/Y: 1.2 G; C Axis: 2.5 rad/s²; A/B: 1.8 rad/s²
Bevel Cutting Range 0-60° standard, compound angles possible
Maximum Tube Weight 800 kg (single piece)
Programming Software Advanced 3D CAD/CAM with AI-based Nesting Optimization, Collision Detection
Safety Features Class 1 Laser Safety Enclosure with Interlocks, Multi-zone Emergency Stop, Gas Leak Detection, Fire Suppression System, Vibration Monitoring
Maintenance Predictive Maintenance System, 1000h routine check, 5000h comprehensive maintenance
Warranty 36 months machine, 24 months laser source



Cutting Performance Data:

Material Thickness Speed (O₂) Speed (N₂) Edge Quality Perpendicularity
Mild Steel (S355) 30mm 2.2 m/min - Excellent, clean edge ±0.05°
Mild Steel (S355) 50mm 0.8 m/min - Good, minimal slag ±0.08°
Stainless Steel (316) 25mm - 1.8 m/min Bright, no oxidation ±0.04°
Stainless Steel (316) 40mm - 0.7 m/min Good, slight heat tint ±0.06°
Aluminum (5083) 20mm - 3.5 m/min Smooth, burr-free ±0.05°
Aluminum (5083) 30mm - 1.5 m/min Good, minimal roughness ±0.07°

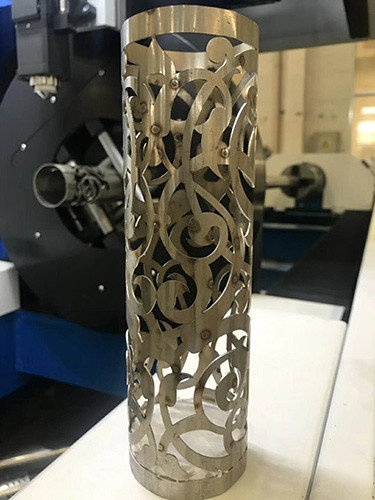

Cutting Samples:



Water Cooling 12KW CNC Steel Pipe Cutting Machine Raycus IPG Fiber Laser Power 2
