Hydraulic H Beam Production Line Automatic Centering 2500mm Web Height 9.5 KW Input

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: HZL-2500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc h beam drilling machine

,

h beam assembly machine

Voltage:
380V 3-phase 50Hz Or Customized
Web Thickness:
6-32mm
Web Height:
200-2500mm
Flange Thickness:
6-40mm
Flange Plate Width:
200-800mm
H Beam Length:
4000-15000mm
Voltage:
380V 3-phase 50Hz Or Customized
Web Thickness:
6-32mm
Web Height:
200-2500mm
Flange Thickness:
6-40mm
Flange Plate Width:
200-800mm
H Beam Length:
4000-15000mm
Hydraulic H Beam Production Line Automatic Centering 2500mm Web Height 9.5 KW Input



HZL Series Hydraulic Automatic Centering H beam Assembly Machine





The vertical assembly machine which the flange,web fastening and calibrating, positioning, and auto spot welding equipped, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products,with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of welding.





Equipment Advantage:



  •  The material of pressing wheel, guiding wheel and main transmission wheel is 40Cr, with high frequency quenching process on the surface, has the advantages of good abrasion resistance and long service time.The main transmission wheel uses integral forging process with good pressure resistance and high abrasion resistance.



  •  Main transmission wheel using the whole forging process,with high compression resistance and high wear resistance.



  •  The web can be both light and heavy steel wheel,The application scope of H type steel work piece is wide.



  •  Welding gun fixing device,Easy to operate Easily realize automatic spot welding.



  •  This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.





Technical Parameters:



Model HZL-2500
Web Height (mm) 200-2500
Web Thickness (mm) 6-32
Web Length (mm) 4000-15000
Flange Plate Width (mm) 200-800
Flange Plate Thickness (mm) 6-40
Assembling-standing Speed (mm/min) 500-6000
Input Roller Way (mm) 2600×3
Output Roller Way (mm) 2600×3
Draw Bar Box 2 pieces
Centering Type Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding
Speed Control AC frequency converter (stepless speed)
Input Capacity 9.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets

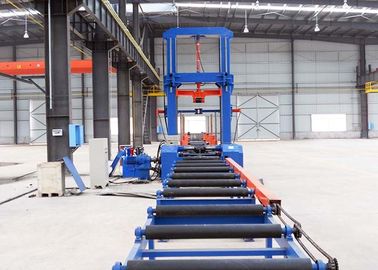

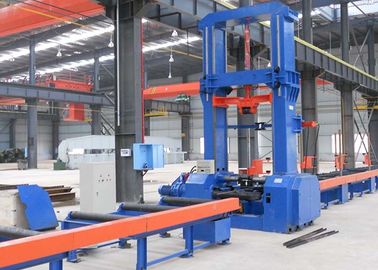

Hydraulic H Beam Production Line Automatic Centering 2500mm Web Height 9.5 KW Input 0



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
