Heavy Duty H Beam Production Line 200-800mm Flange Plate Width Vertical

Heavy Duty H Beam Production Line 200-800mm Flange Plate Width Vertical

  • Heavy Duty H Beam Production Line 200-800mm Flange Plate Width Vertical
Heavy Duty H Beam Production Line 200-800mm Flange Plate Width Vertical
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HZL-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Web Height: 200-2000mm
Flange Plate Width: 200-800mm Assembly Speed: 0.65~6.5m/min
Workpiece Length: 6000~15000mm Or As User's Requirements Material Of Plate: Stainess Steel, Mild Steel And Other
High Light:

h beam assembly machine


h beam welding line


HZL Series Hydraulic Automatic Centering H beam Assembly Machine



The vertical hydraulic assembly machine which the flange,web fastening and calibrating, positioning, and auto spot welding equipped.


The assembly machine adopts Japanese Mitsubishi programmable controller and the AC frequency converter.


This machine increases the productivity one times above comparing with common products,with the features of stable and reliable working state.


The welding torch is equipped by the arc-tracing device to ensure the quality of welding.

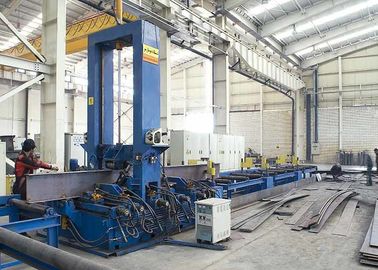

Heavy Duty H Beam Production Line 200-800mm Flange Plate Width Vertical 0



Equipment Performance:


  •  The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.


  •  The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.


  •  The main components of this machine are welded structure parts with large strength and light weight. and the key components have been stress relieved, which don’t deform easily.


  •  Can be used as eccentric H-beam.


Technical Parameters:


Model HZL-2000
Web Height (mm) 200-2000
Web Thickness (mm) 6-32mm
Web Length (mm) 6000-15000
Flange Height (mm) 200-800
Flange Thickness (mm) 6-40
Flange Length (mm) 6000-15000
Assembling-standing Speed (mm/min) 500-6000
Input Capacity 16.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets





1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.


3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?


These information is helpful for us to choose suitable equipment solution and price quickly.
