Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FZJ-180
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Turning Angle: |
0-180° |
Width Of Flange: |
200-800mm |
H Beam Height: |
200-2000mm |
H Beam Length: |
4000-15000mm |
Usage: |
H Beam Welding |
Warranty: |
12 Months |
Turning Angle: |
0-180° |
Width Of Flange: |
200-800mm |
H Beam Height: |
200-2000mm |
H Beam Length: |
4000-15000mm |
Usage: |
H Beam Welding |
Warranty: |
12 Months |

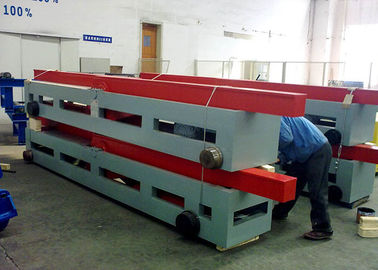

180 Degree H Beam Overturning Machine for H Beam Production Line

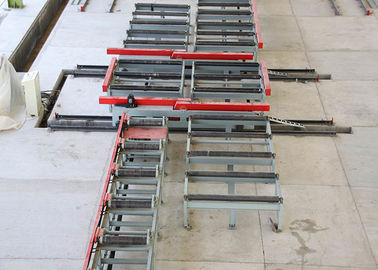

The roller conveyor is one of the most important parts of H-beam production line. It joint the assembly machine , 90 degree turning frame , cantilever welding machine , conveying machine , 60 degree turning frame,180 degree overturning frame, straightening machine ,which reducing using the crane and improve the production efficiency.
Roller conveyor usually put by one piece driving roller and one piece idler roller ,from the side of assembly machine roller conveyor to the front of straightening machine roller conveyor( lay in one line). 90 degree turning frame, conveying machine, 180degree overturning frame is put in the free distance.
For 15m beam, the total length of roller conveyor is about 75m,ten pieces of driving roller and ten pieces of idler roller .If the beam more than 15m(18m,20m or more ), we will redesign the total length of roller conveyor.
Technical Parameters:
| Turning workpiece weight | 18T/Set |
| Turning speed reducing motor power | 1.5KW×2 |
| Turning speed: | 5m/min |
| Turning cylinder diameter | ф160mm |
| Hydraulic system max. pressure | 16Mpa |
| Rail central distance | 700mm |
| Hydraulic pump station | 15KW |
| Rail | Provide by Buyer |
Welding Process:
Finished products:
First class welding process, perfect finished product show.
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
