Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam

Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam

  • Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam
  • Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam
Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: 18T Conveying Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Workpiece: H Beam Width Of Flange: 200-800mm
H Beam Height: 200-2000mm H Beam Length: 4000-15000mm
Usage: H Beam Welding Warranty: 12 Months
High Light:

cnc h beam drilling machine

,

h beam assembly machine



Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam

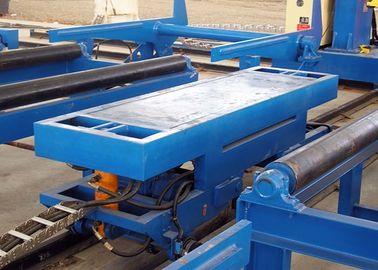

Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam 0



Conveying machine and 60°turning machine are all assistant equipment of cantilever welding machine, for one welding area, usually equipped with one group of( two sets) conveying machines and two groups of 60°overturning machines, they share the same hydraulic pump station and electrical control box, with press button placed on operation panel of cantilever welding machine.

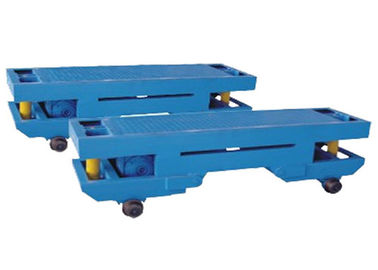

One set of conveying machine is composed of one machine frame, four walking wheels, two elevating cylinders and one motor reducer. Its main function:



1) Lifting the workpiece



2) Move the workpiece.





Two sets of conveying machines work synchronize, on the paved rails, lifting the workpiece from roller conveyor, then move onto 60°overturning machines.





Technical Parameters:



Lifting Weight 18T
Lifting Distance 80mm
System Pressure 16Mpa
Cylinder Diameter φ80mm*2
Moving Motor Power 1.5KW×2
Moving Speed: ≈6.5m/min
Rail Center Distance 700mm





Machines in using:



Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam 1





Finished products:



First class welding process, perfect finished product show.



Conveying Machine for H beam Heavy Duty Production Line for Overturning H beam 2





Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?



These information is helpful for us to choose suitable equipment solution and price quickly.
